(08-29) - ELECTRICAL, MONITOR CONTROL

Запчасти Case IH 715 (08-29) - ELECTRICAL, MONITOR CONTROL (06) - ELECTRICAL

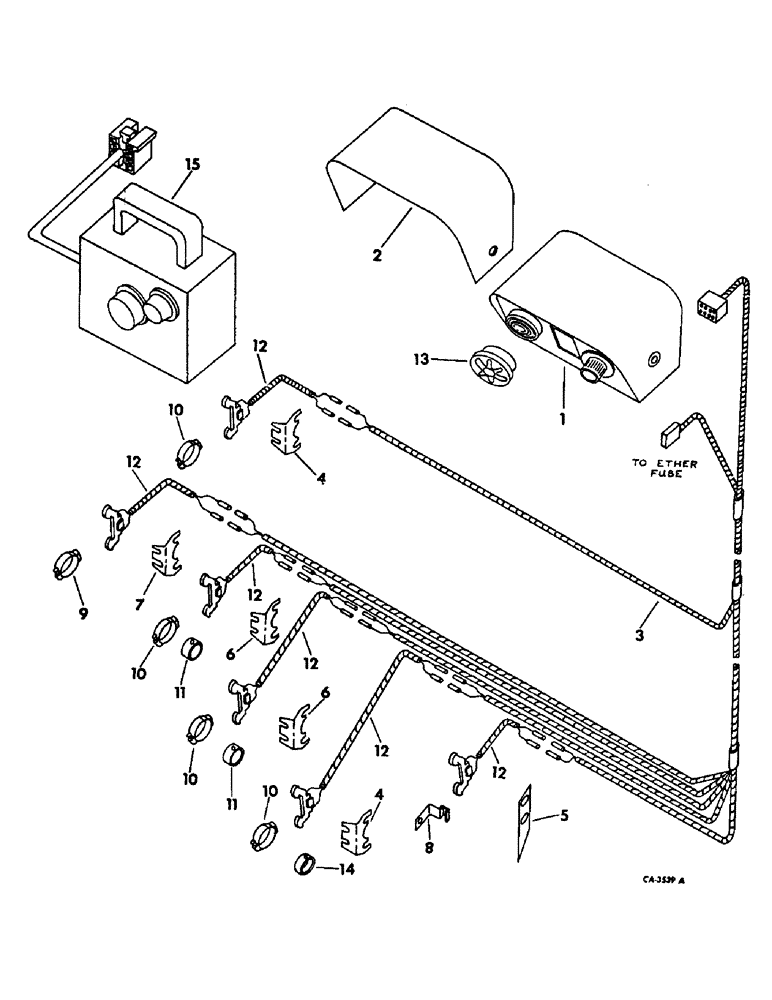

Схема запчастей Case IH 715 - (08-29) - ELECTRICAL, MONITOR CONTROL (06) - ELECTRICAL
5
12
4
11
10
7
12
10
10
8
14
4
6
9
12
10
12
15
2
12
3
1
13
12
11
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

178558C92

MONITOR CONTROL

1шт.

1

178786C2

CONTROL

CONSOLE ASSY, control

1шт.

2

179453C1

BRACKET, console mounting

1шт.

3

178787C1

HARNESS

wiring

1шт.

4

178790C1

BRACKET

fan and straw walker sensor

1шт.

5

178791C1

BRACKET, shoe sensor mounting

1шт.

6

178794C1

BRACKET

grain and tailings elevators sensor mounting

2шт.

7

178796C1

BRACKET

straw chopper sensor mounting

1шт.

8

178797C1

MAGNET

ASSY, shoe sensor

1шт.

9

178799C1

CLAMP,44.45mm - 63.5mm

MAGNET ASSY, straw chopper sensor

1шт.

10

178800C1

CLAMP

ASSY, sensor

4шт.

11

178803C1

COLLAR

grain and tailings elevator sensor, serial no. 12000 and below

2шт.

11

178801C1

COLLAR

grain and tailings elevator sensor, serial no. 12001 and above

2шт.

12

178806C1

SWITCH

ASSY, reed

6шт.

13

178876C1

SUPPRESSOR

audible alarm

1шт.

14

(Not used in this application)

1шт.

15

178755C1

TEST UNIT, monitoring

1шт.
