(08-07) - ELECTRICAL, NIGHT LIGHT, NON OPERATOR CAB, EXPORT ONLY

Запчасти Case IH 715 (08-07) - ELECTRICAL, NIGHT LIGHT, NON OPERATOR CAB, EXPORT ONLY (06) - ELECTRICAL

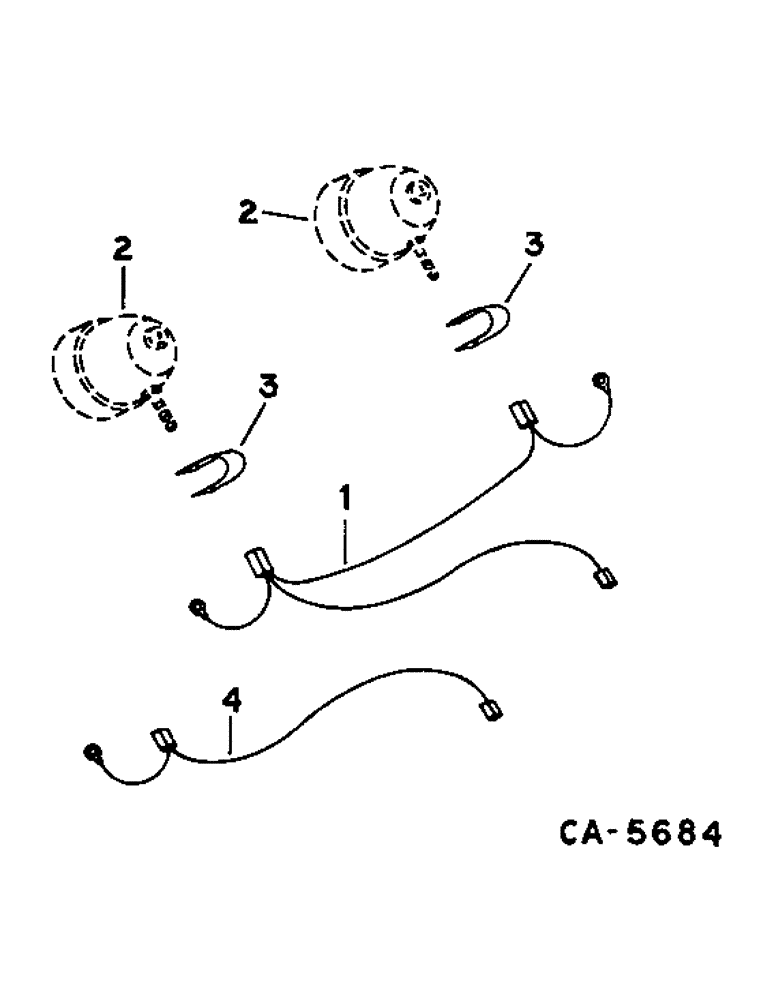

Схема запчастей Case IH 715 - (08-07) - ELECTRICAL, NIGHT LIGHT, NON OPERATOR CAB, EXPORT ONLY (06) - ELECTRICAL
2
3
3
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

188535C1

CABLE ASSY, headlight

1шт.

2

LAMP ASSY, head light, refer to this group under lights, mountings and brackets

2шт.

3

561916R1

CLAMP, head light

2шт.

4

188534C1

CABLE, left head light

1шт.

Выбрано товаров: 4
