(12) - PULLEY AND BELT DIAGRAM, RIGHT SIDE

Запчасти Case IH 815 (12) - PULLEY AND BELT DIAGRAM, RIGHT SIDE (00) - GENERAL

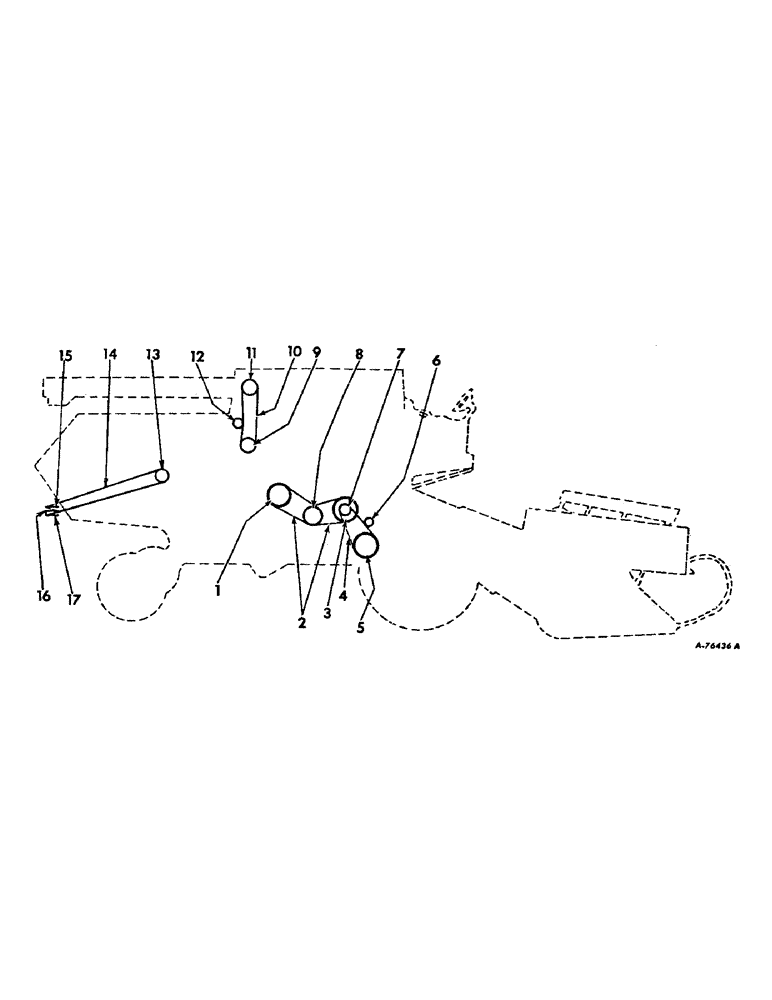

Схема запчастей Case IH 815 - (12) - PULLEY AND BELT DIAGRAM, RIGHT SIDE (00) - GENERAL
11
16
1
17
5
2
14
8
10
13
6
4
15
9
12
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PULLEY, fan drive, see section R under separator fan drive

1шт.

2

BELTS, pair fan drive, see section R under separator fan drive

1шт.

3

PULLEY, fan drive, see section R under separator fan drive

1шт.

4

BELT, shaker shaft drive, see section R under shaker shaft drive

1шт.

5

PULLEY, shaker shaft drive, see section R under shaker shaft drive

1шт.

6

PULLEY, shaker shaft drive belt tghtnr, see section R under shaker shaft drive

1шт.

7

PULLEY, shaker shaft drive, see section R under shaker shaft drive

1шт.

8

PULLEY, fan jackshaft outer, see sec. R under sparator fan drive

1шт.

9

PULLEY, rotary air screen drive, see section A under radiator rotary air screen and drive

1шт.

10

BELT, rotary air screen drive, see section A under radiator rotary air screen and drive

1шт.

11

PULLEY, rotary air screen driven, see section A under radiator rotary air screen and drive

1шт.

12

PULLEY, rotary air screen drive tghtnr, see section A under radiator rotary air screen and drive

1шт.

13

PULLEY ASSY, straw spreader drive, refer to section 12 under straw spreader and drive

1шт.

14

BELT, straw spreader drive

1шт.

15

PULLEY ASSY, straw spreader driven

1шт.

16

PULLEY ASSY, straw spreader idler

1шт.

17

PULLEY ASSY, straw spreader tightener

1шт.
