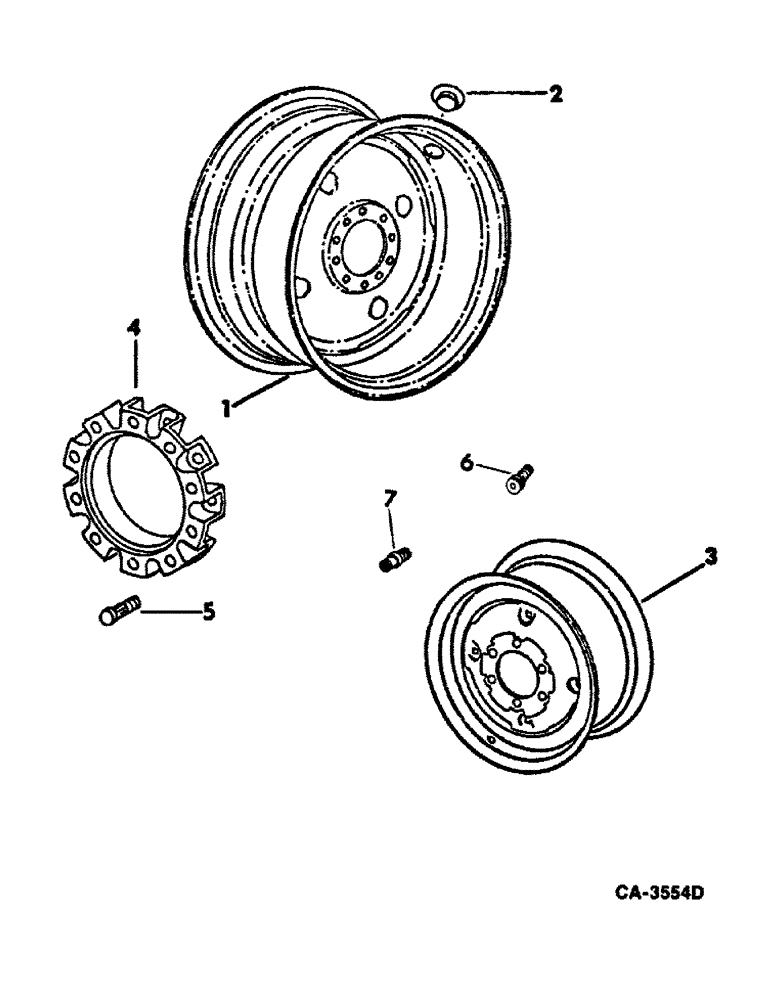

Запчасти Case IH 815 (15-01) - WHEELS AND TRACTION, MAIN AND GUIDE WHEELS Wheels & Traction

1

196195C1

WHEEL

RIM and DISC ASSY, 26 x DW 16 main wheels, for use w/18.4-26 10 PR tires

2шт.

1

193599C1

WHEEL ASSY.

RIM and DISC ASSY, 26 x DW 20 main wheels, for use w/23.1 x 26 8 PR R1 and R2 tires

2шт.

1

196196C2

WHEEL

RIM and DISC ASSY, 34 x DW 20 main wheels, for use w/23.1-34 8 PR R2 tires

2шт.

1

196197C1

WHEEL ASSY.

RIM and DISC ASSY, 26 DWH 25 main wheels, for use w/28L-26 10 PR R1 and R2 tires

2шт.

2

417194C1

PLUG

valve hole, for tubeless tires

1шт.

2

383697R1

PLUG

valve hole, for use w/tube tires

1шт.

3

188008C1

RIM

and DISC ASSY, WH10LX16 wheels, 8-holes for use w/11.00-16 tires

2шт.

Ref #3 - Rim 188008C1 has approx. 9 1/2-inch offset. MU. TSG. 09/02/99

1шт.

3

174719C2

WHEEL (STEERING)

RIM and DISC ASSY, W8X24 wheels, 8-holes for use w/9.5-24 tires

2шт.

3

188009C1

RIM

and DISC ASSY, WH8LX16 wheel, 8-holes, for use w/10.00-16 tires

2шт.

3

400573R1

WHEEL

RIM and DISC ASSY, 5.50FX18 wheel, 6-hole, for use w/7.50-18 tires

2шт.

3

163837C91

RIM and DISC ASSY, W7LX20 wheel, 6-holes, for use w/9.50-20 tires

2шт.

3

936537R91

RIM

and DISC ASSY, 8L8X16 wheel, 6-holes, for use w/10.00-16 tires

2шт.

3

180532C1

WHEEL

RIM and DISC ASSY, WH10LX16 wheel, 6-holes, for use w/12.4-16 tires

2шт.

4

178912C92

RETAINER

SPACER ASSY, wheel, 96 thread, includes ref. no. 5

2шт.

5

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

wheel

1шт.

6

179482C1

VALVE STEM

VALVE, for use w/tubeless tires

1шт.

429-1112

NUT,3/4"-16, G5

3/4-NF type 8

1шт.

7

407184C1

VALVE STEM

CORE, valve, for use w/tube type tires

1шт.
