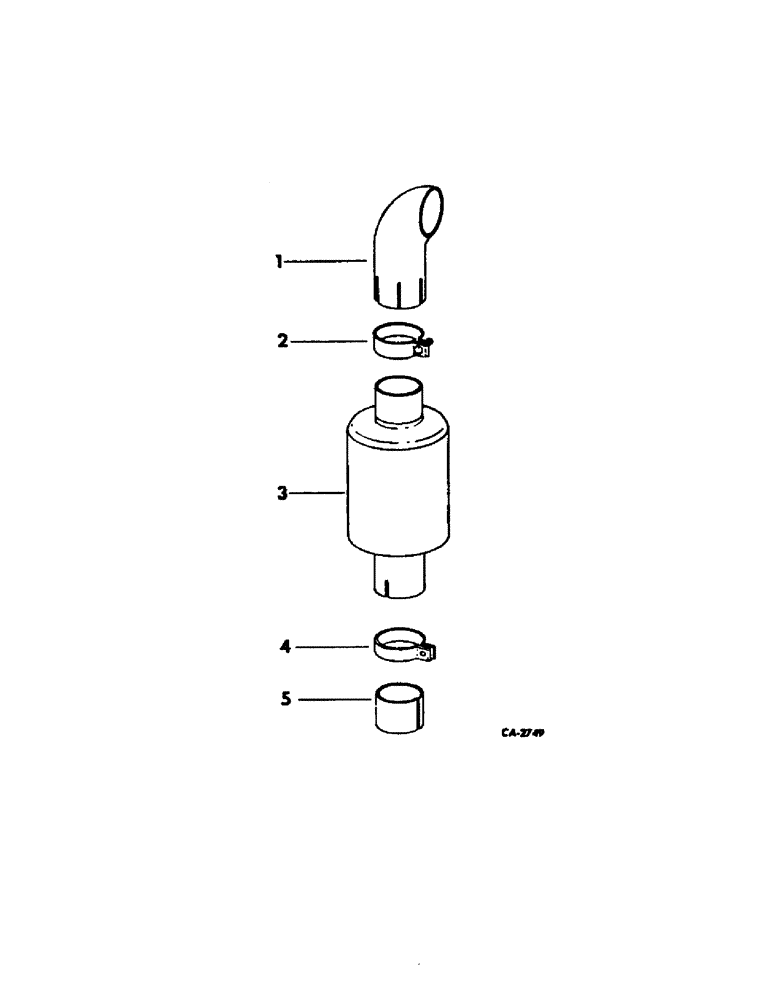

Запчасти Case IH 915 (E-12[1]) - FUEL SYSTEM, SPARK ARRESTER (02) - FUEL SYSTEM

545734R91

PARTS ACCESSORY, spark arrester, used on V-345 and V-392 engine combines w/dual exhaust and outlet 531848R1

1шт.

1

527269R1

PIPE

exhaust deflector

1шт.

2

379974R91

CLAMP, spark arrester

1шт.

3

404508R1

ARRESTER

ARRESTOR, spark

1шт.

4

402984R1

CLAMP

exhaust pipe deflector

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

405806R1

SLEEVE

spark arrester

1шт.
