(N-09) - PARTS ACCESSORIES AND ATTACHMENTS, OPERATORS CAB PRESSURIZER, SERIAL NO. 1865 AND ABOVE

Запчасти Case IH 915 (N-09) - PARTS ACCESSORIES AND ATTACHMENTS, OPERATORS CAB PRESSURIZER, SERIAL NO. 1865 AND ABOVE Accessories & Attachments

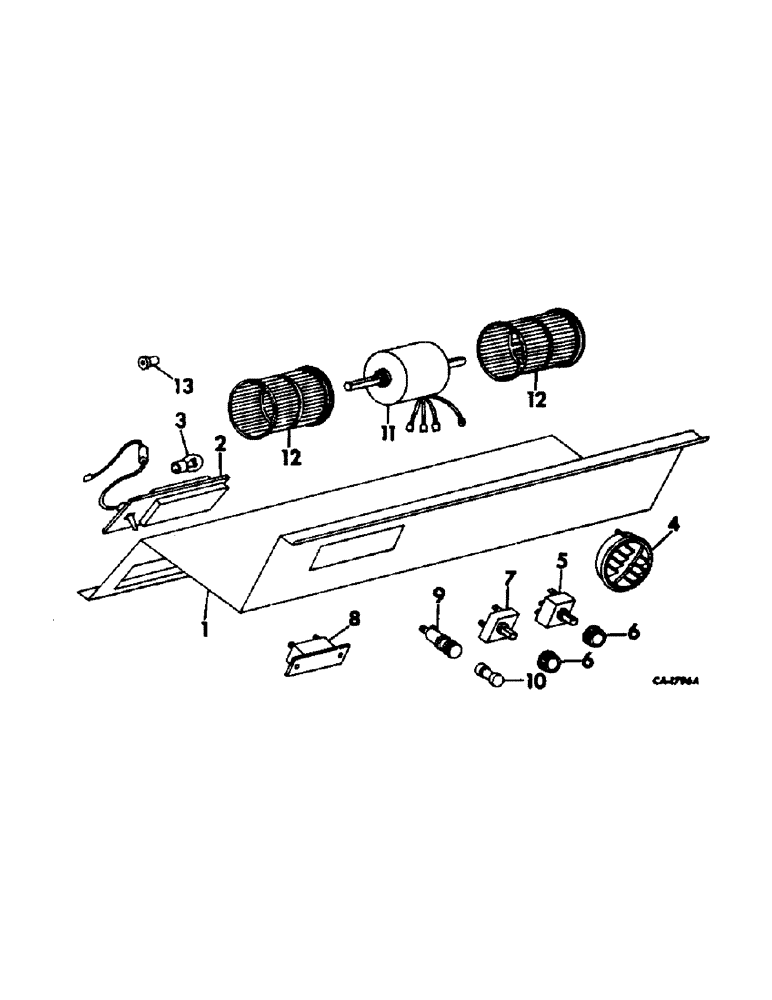

Схема запчастей Case IH 915 - (N-09) - PARTS ACCESSORIES AND ATTACHMENTS, OPERATORS CAB PRESSURIZER, SERIAL NO. 1865 AND ABOVE Accessories & Attachments
13
9
2
12
5
1
6
3
6
11
8
10
12
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

173919C91

WRAPPER ASSY, pressurizer, rear air intake, includes ref. nos. 2, 3 and 4

1шт.

1

WRAPPER ASSY, pressurizer, left side air intake, not serviced

1шт.

2

173907C1

LIGHT ASSY, dome

1шт.

3

455490

BULB,C-6, #1003, 12V, .94W

LAMP, dome light

1шт.

4

173913C1

DEFLECTOR

LOUVER ASSY, pressurizer

6шт.

5

168822C1

IGNITION SWITCH

SWITCH, blower

1шт.

6

200860C1

KNOB

blower and light switches

2шт.

7

168251C1

SWITCH

light

1шт.

8

173906C1

BREAKER

30 amp circuit

1шт.

9

376852R91

HOUSING

HOLDER ASSY, fuse

1шт.

10

117142

FUSE,10 Amp, Type 3AG

cartridge type 30 amp

1шт.

11

175577C1

MOTOR

blower

1шт.

12

174922C1

RIM

WHEEL, blower fan, counterclockwise rotation

1шт.

12

175310C1

RIM

WHEEL, blower fan, clockwise rotation

1шт.

13

175578C1

INSULATOR

RETAINER, wheel

8шт.
