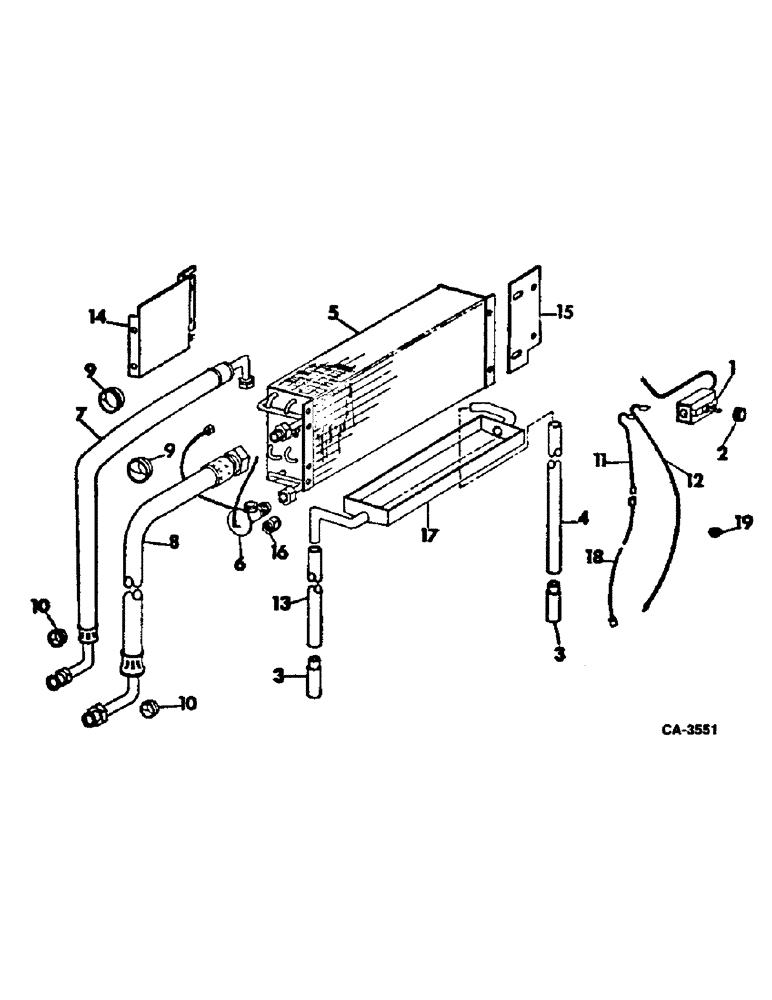

Запчасти Case IH 915 (13-17) - SUPERSTRUCTURE, OPERATORS CAB EVAPORATOR (05) - SUPERSTRUCTURE

1

175575C1

THERMOSTAT

1шт.

109311H

JAM NUT

thermostat switch

1шт.

2

200860C1

KNOB

thermostat

1шт.

3

173910

HOSE, drain RH, use 106 in. of 1/2 inch plastic tubing from 50 ft. roll marked 665181R1

1шт.

5

173915C1

CORE

ASSY, evaporator

1шт.

24388R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 3/8"

4шт.

164539

GEAR

SCREW, no 14 x 3/8 pan-hd recess

4шт.

6

168903C1

VALVE

expansion

1шт.

7

171851C1

HOSE ASSY.

HOSE & TUBE ASSY 99 INCHES

1шт.

8

171850C1

HOSE

& TUBE ASSY 101.5 INCHES

1шт.

9

173895C1

GROMMET

3/4 ID

1шт.

9

166868C1

GROMMET

1 ID

1шт.

10

173893C1

GROMMET

3/8 ID

1шт.

10

173894C1

GROMMET

5/8 ID

1шт.

11

WIRE, switch to thermostat jumper, use 6 in. of 16 ga wire from 100-ft roll marked 995056R1 and two terminals 915073R1

1шт.

12

WIRE, thermostat to condenser front, use 162 inches of 16 ga wire from 100 ft roll marked 955056R1 and one terminal 915073R1 and one terminal 244063R1 and one connector 46893R1

1шт.

13

HOSE, drain LH, use 67 inches of 1/2 inch plastic tubing from 50 ft. roll marked 665181R1

1шт.

14

175581C1

BRACKET

evaporator mounting LH

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 hex-hd washer

2шт.

447163

SCREW, no 10 x 1/2 hex-hd mach

2шт.

15

175582C1

BRACKET

evaporator mounting RH

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 hex-hd washer

2шт.

447163

SCREW, no 10 x 1/2 hex-hd mach

2шт.

16

615195C1

NUT, flared cap

1шт.

17

175802C1

PAN ASSY, evaporator drain

1шт.

18

WIRE, thermostat to condenser rear, use 235 inches of 16 ga wire from 100 ft roll marked 995056R1 and two terminals 377279C1

1шт.

19

399347R1

GROMMET, 3/16 ID

1шт.
