(292) - F82739 POWER STEERING VALVE, SERIAL NUMBER 8243201 AND AFTER

Запчасти Case IH 1010 (292) - F82739 POWER STEERING VALVE, SERIAL NUMBER 8243201 AND AFTER (41) - STEERING

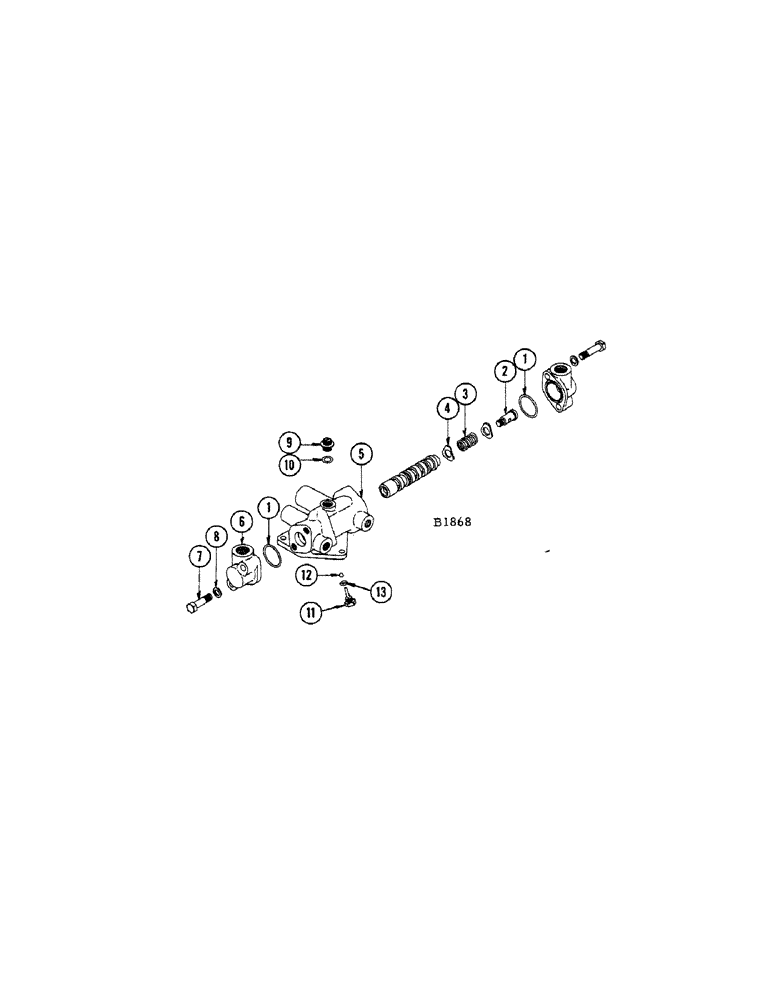

Схема запчастей Case IH 1010 - (292) - F82739 POWER STEERING VALVE, SERIAL NUMBER 8243201 AND AFTER (41) - STEERING
8
3
9
13
1
11
4
6
10
7
1
2
12
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F21003

O-RING,1.237" ID x 1.443" OD

"O" RING - end cap

2шт.

2

F19623

SCREW,3/8" - 24 x 15/16"

- spring centering

1шт.

3

F19622

VALVE SPRING

SPRING - valve centering

1шт.

4

F19619

WASHER

- center

2шт.

5

F82739

VALVE

- hydrostatic, power steering

1шт.

6

F19624

CAP

- end

2шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

8

F19626

WASHER - (11/16" O.D. x 25/64" I.D.) For bolts of F19624 cap

4шт.

9

F83122

PLUG

SCREW - adjusting

1шт.

10

F19628

O-RING

"O" RING

1шт.

11

F82943

VALVE

PLUG

1шт.

12

211-7

BALL,1/4" Dia

- steel 1/4" Dia

1шт.

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, 1/8" x 15/16", Slotted

1шт.

13

F19630

O-RING

"O" RING

1шт.
