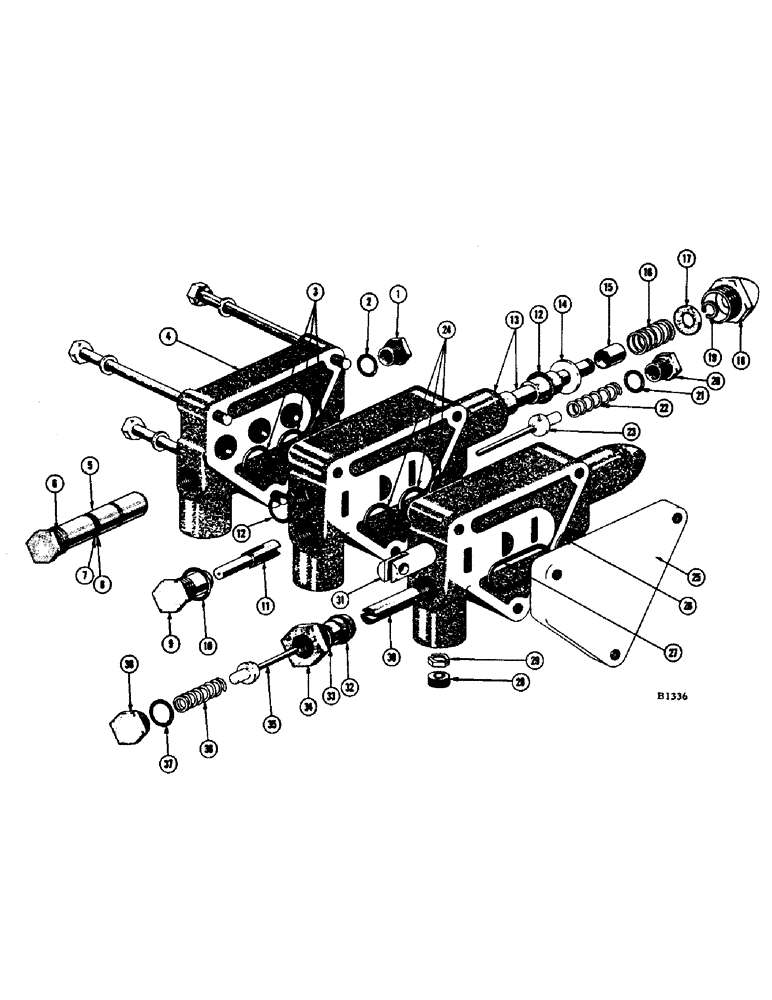

Запчасти Case IH 1060 (260) - F87181 VALVE, SERIAL NUMBER 8311400 AND AFTER, PORT PLATE ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

F8240

PLUG - upper port plate

1шт.

2

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - (3/32" x 1/2" I.D.) For plate plug

1шт.

3

NSS

NOT SOLD SEPARAT

"O" RING - (1/16" x 3/4" I.D. 90 durometer) Port plate

3шт.

4

F1290

BODY - port plate

1шт.

BOLT - 5/16" x 4-7/8" N.C. hex. (13-578) L.W. (92-5)

3шт.

5

F87195

LOCK VALVE

VALVE - relief assembly for F1290 port plate

1шт.

F84831

SEAL

KIT - repair, port plate seal

1шт.

6

NSS

NOT SOLD SEPARAT

"O" RING - (3/32" x 3/4" I.D.)

1шт.

7

NSS

NOT SOLD SEPARAT

"O" RING - (3/32" x 5/8" I.D.)

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - (3/32" x 5/8" I.D.) backup rubber

1шт.

9

F8242

PLUG - body, header control section

1шт.

10

NSS

NOT SOLD SEPARAT

"O" RING - (3/32" x 3/4" I.D.) Body plug, header control section

1шт.

11

F8243

PLUNGER - lock-out, header control section

1шт.

12

NSS

NOT SOLD SEPARAT

"O" RING - (3/32" x 3/4" I.D.) Spool, header control section

2шт.

13

F77045

BODY - with spool (Includes ref. 9, 10, 11, 12, 14, 15, 16, 17, 18, 19, 20, 21, 22 and 23), header control section

1шт.

14

F8235

WASHER

- (59/64" O.D.) Backup, header control section

1шт.

15

F8224

SLEEVE

- spool, header control section

1шт.

16

F8225

SPRING - spool centering, header control section

1шт.

17

F8236

SHIM

WASHER - (51/64" O.D.) Backup, header control section

1шт.

18

F77047

CAP

- spool, header control section

1шт.

19

F8237

RING

SNAP RING - (1/2" sq. clsd.) Spool cap, header control section

1шт.

20

F8240

PLUG - lock-out spring, header control section

1шт.

21

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - (3/32" x 1/2" I.D.) For F8240 plug, header control section

1шт.

22

F8228

SPRING

- lock-out,header control section

1шт.

23

NSS

NOT SOLD SEPARAT

POPPET - relief, header control section

1шт.

F8245

RETAINER - orifice plate (Not shown) Same as ref. 28, header control section

1шт.

F8223

PLATE - orifice (Not shown) See ref. 29, header control section

1шт.

24

NSS

NOT SOLD SEPARAT

"O" RING - (1/16" x 3/4" I.D. 90 durometer) For F77045, header control section

3шт.

25

F13237

PLATE - cover, for F87181 valve, variable speed control section

1шт.

26

NSS

NOT SOLD SEPARAT

"O" RING - (1/16" x 3/4" I.D. 90 durometer) For F13237, variable speed control section

3шт.

27

NSS

NOT SOLD SEPARAT

"O" RING - (3/32" x 1-1/2" I.D.), variable speed control section

1шт.

28

F8245

RETAINER - orifice plate, variable speed control section

1шт.

29

F12260

PLATE - orifice, variable speed control section

1шт.

30

F8229

PLUNGER

- lock-out, variable speed control section

1шт.

31

F77046

BODY - with spool (Includes ref. 12, 14, 15, 16, 17, 18, 19, 30, 32, 33, 34, 35, 36, 37 and 38), variable speed control section

1шт.

32

NSS

NOT SOLD SEPARAT

"O" RING - (3/32" x 9/16" I.D.) Lock-out seat, variable speed control section

1шт.

33

NSS

NOT SOLD SEPARAT

"O" RING - (3/32" x 3/4" I.D.) Lock-out seat, variable speed control section

1шт.

34

F8227

SEAT - lock-out, variable speed control section

1шт.

35

NSS

NOT SOLD SEPARAT

POPPET - relief, variable speed control section

1шт.

36

F8228

SPRING

- lock-out, variable speed control section

1шт.

37

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - (3/32" x 1/2" I.D.) For F11828 plug, variable speed control section

1шт.

38

F11828

PLUG

- slotted, lock-out spring, variable speed control section

1шт.

F84830

KIT - major seal repair, variable speed control section

1шт.

F84831

SEAL

KIT - repair, port plate seal (Includes ref, 6, 7 and 8), variable speed control section

1шт.

F84832

KIT - "O" ring (Between sections) Includes ref. 3, 24, 26 and 27), variable speed control section

1шт.

F84833

KIT - repair (F77046 vari-speed section) Includes ref. 12, 32, 33, 35 and 37), variable speed control section

1шт.

F84834

KIT

- repair (F77045 header section) Includes ref. 10, 12, 21 and 23, variable speed control section

1шт.
