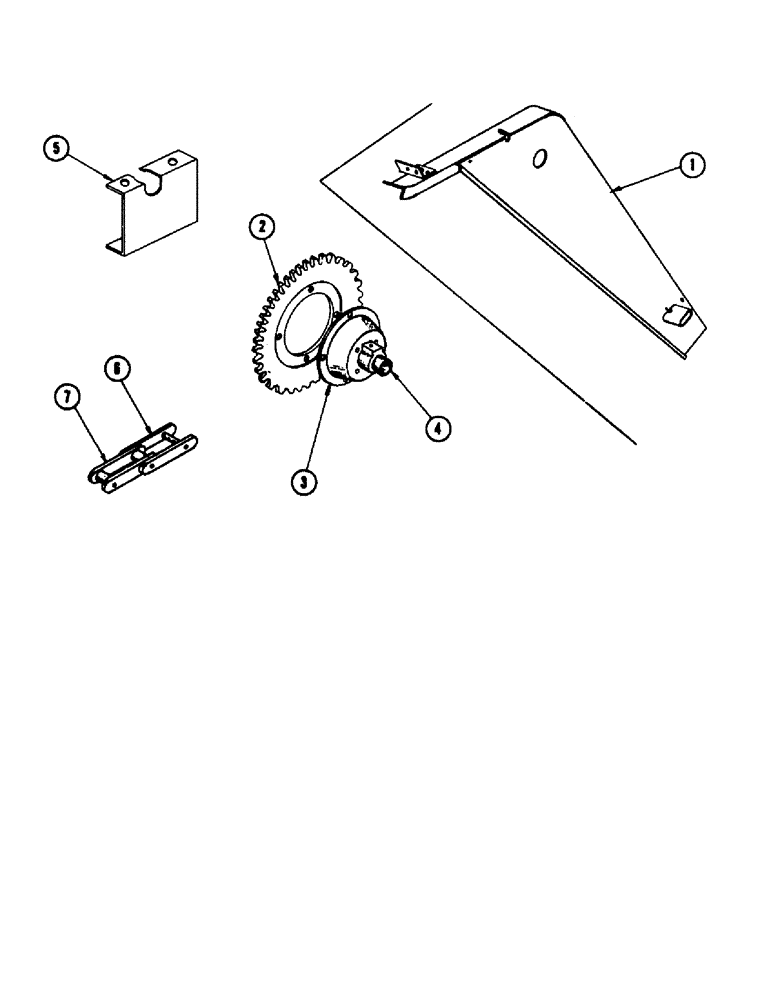

Запчасти Case IH 1060 (138[1]) - SLOW SPEED CONVEYOR, CHAIN DRIVE ATTACHMENT, BEFORE SERIAL NUMBER 8311400 (66) - THRESHING

1

F88425

SHIELD - chain

1шт.

BOLT - 1/4" x 3/4" N.C. hex. (113-3)

1шт.

BOLT - 1/4" x 1/2" rhd. sq. nk. (111-107)

2шт.

NUT - 1/4" N.C. hex. (129-101) L.W. (192-19)

3шт.

2

F14166

SPROCKET ASSY.

SPROCKET - (52T) conveyor rake chain (Replaces F86501)

1шт.

BOLT - 5/16" x 7/8" N.F. hex. (14-514) nut (25-115)

4шт.

3

F87837

HUB AND BUSHING

1шт.

4

F12197

BUSHING

1шт.

5

F11918

BRACKET

1шт.

6

B12521

LINK

- connecting, #CA2050 chain

1шт.

7

B12523

DRAG LINK

LINK - roller, #CA2050 chain

1шт.
