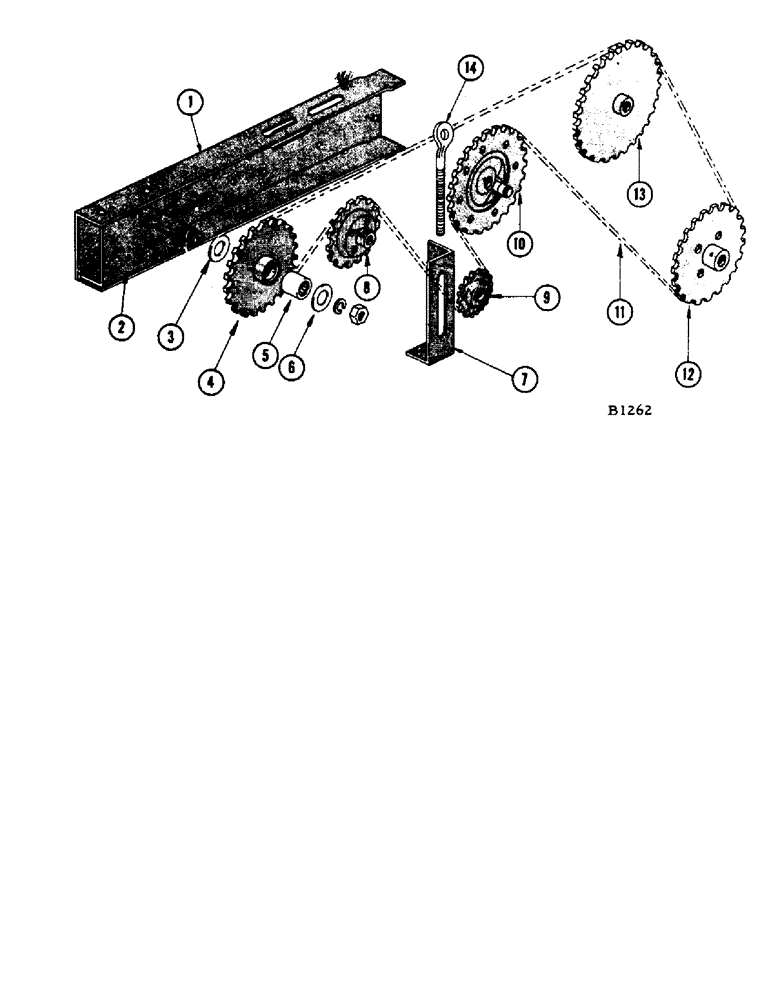

Запчасти Case IH 1060 (138) - TIGHTENER, CONVEYOR OR RAKE DRIVE, STRAWWALKER AND TAILINGS DRIVE, BEFORE SERIAL NUMBER 8311400 (66) - THRESHING

1

NSS

NOT SOLD SEPARAT

BRACKET - support, rear conveyor rake, L.H.

1шт.

2

F86055

SHAFT - includes bracket

1шт.

NUT - 3/4" N.F. hex. (25-1112) L.W. (92-12)

1шт.

FITTING - 1/4" x 90 degrees (219-58)

1шт.

3

F62073

WASHER

- tightener shaft

1шт.

4

F78411

SPROCKET ASSY.

SPROCKET - (36T) tightener

1шт.

5

B18163

NEEDLE BEARING,1" ID x 1.4385" OD x 1.75"

BEARING

1шт.

6

O642HT

WASHER - tightener shaft

1шт.

7

F11922

BRACKET

- idler

1шт.

8

F86221

SPROCKET - (30T) conveyor rake drive (Replaced by slow speed conveyor chain drive attachment)

1шт.

F12197

BUSHING

1шт.

9

F40411

COLLAR CLAMP

SPROCKET - (9T) Idler

1шт.

BOLT - 5/8" x 2-1/2" N.F. hex. (14-1040) elastic stop nut (131-10) L.W. (92-10)

1шт.

WASHER - 5/8" U.S. std. (95-10)

3шт.

10

F86063

SPROCKET ASSY.

SPROCKET - (40T) drives strawwalker and tailings elevator

1шт.

11

F10754

CHAIN - drives conveyor rake, strawwalker and tailings auger (NSS - see chain page)

1шт.

12

F79359

SPROCKET ASSY.

SPROCKET - (40T) tailings auger

1шт.

F11042

BEARING

1шт.

13

F78413

SPROCKET - (48T) strawwalker drive, driven

1шт.

14

F11923

ROD - adjusting

1шт.
