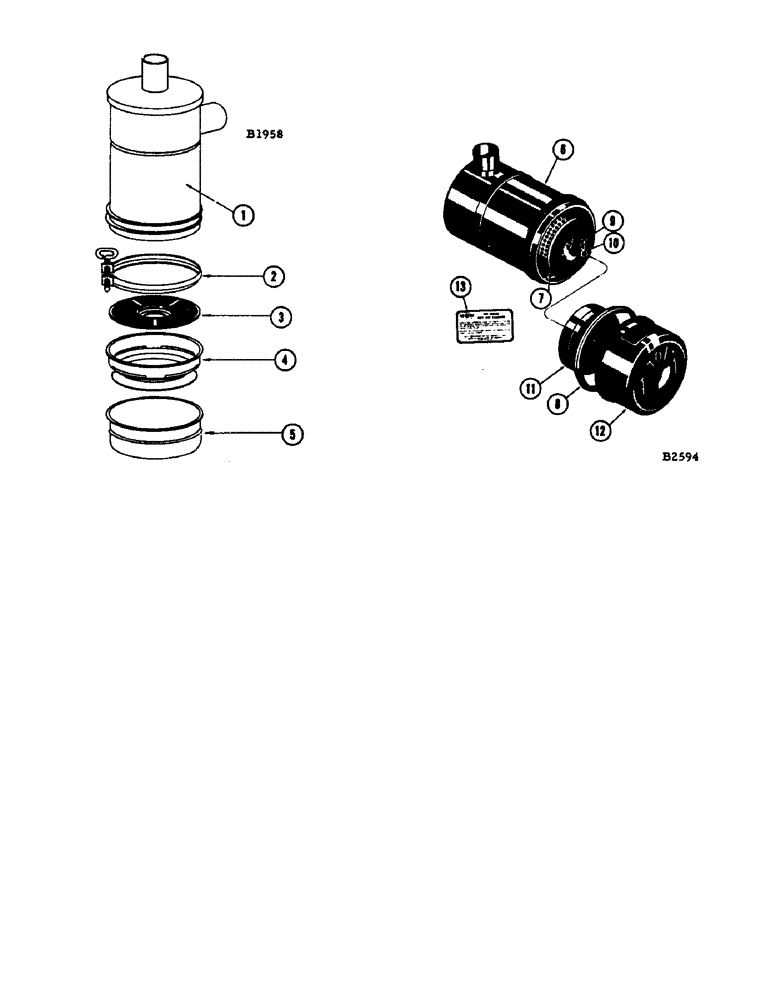

Запчасти Case IH 1060 (318) - F86313 AIR CLEANER (10) - ENGINE

1

F86313

CLEANER - air, complete

1шт.

2

F86316

CLAMP

- assembly

1шт.

3

A24178

SCREEN

- assembly, housed

1шт.

4

A24179

CUP - assembly, inner

1шт.

5

A24177

X

CUP - assembly

1шт.

D36261

CLEANER

AIR CLEANER - dry type (Complete)

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

7

D37975

FILTER

ELEMENT - air cleaner

1шт.

8

R15731

CLAMP

- air cleaner

1шт.

9

D37976

GASKET,14.61mm ID x 27.43mm OD x 3.3mm Thk

- wing nut

1шт.

10

D37977

CAP

WING NUT

1шт.

11

D37979

BAFFLE

- air cleaner

1шт.

12

D37980

CUP

- air cleaner

1шт.

13

D37974

DECAL

- service instructions

1шт.
