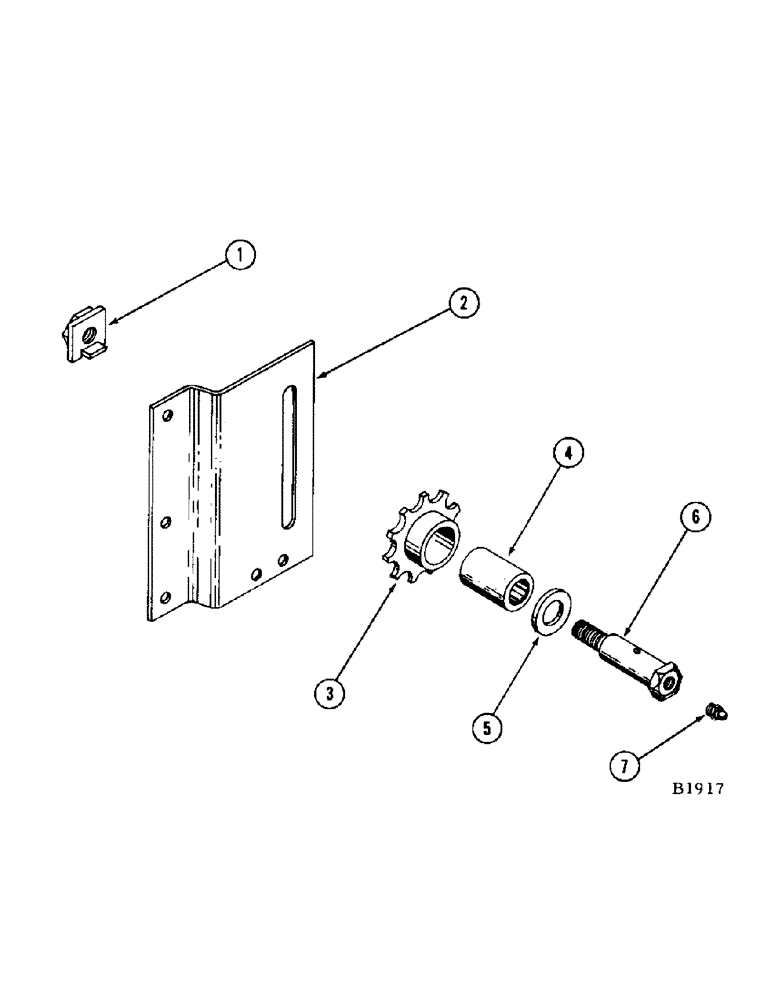

Запчасти Case IH 1160 (08) - FEED RAKE DRIVE TIGHTENER, FEED RAKE UPPER SHAFT, OPERATORS CAB, RUB BAR CYLINDER (60) - PRODUCT FEEDING

1

F75313

LOCKNUT - for idler stud O4925CS

1шт.

2

F14487

BRACKET - tightener, feeder rake drive

1шт.

RIVET - 5/16" x 1" rhd. (45-516)

3шт.

3

F87324

SPROCKET (11T) tightener

1шт.

4

B18163

NEEDLE BEARING,1" ID x 1.4385" OD x 1.75"

BEARING

1шт.

5

O236CH

WASHER

2шт.

6

O4925CS

STUD - idler

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" str.

1шт.

F13388

PIN - jump clutch drive (In place of F12707), feed rake upper shaft

3шт.

NUT - 1/2" N.F. huglock (131-710) fl. wshr. (195-33), feed rake upper shaft

3шт.

F87288

SPROCKET (34T and 48T dbl.) Drive feed rake and auger drive jackshaft (In place of F79728), feed rake upper shaft

1шт.

F11810

BUSHING, feed rake upper shaft

2шт.

F87327

X

CHAIN - drives upper feed rake shaft (101-riveted, 1-offset and 1-conn. link) Use 2-B17141 chains, 1-D24870 roller link, 1-K3497 offset link and 1-B17157 conn. link #80 roller chain or cut from B17158 (In place of F6588) (See page 105 #B958 parts catalog)

1шт.

F87928

BRACE - support (In place of F87929), operators cab

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) L.W. (92-6), operators cab

3шт.

NUT - 3/8" N.F. hex. (25-116) wshr. (95-6) (See page 221 #B958 parts catalog), operators cab

3шт.

F1295

HEAD - cylinder center (In place of F88182), rub bar cylinder

1шт.

F79128

HEAD - cylinder, R.H. and L.H. (In place of F88182) (See page 121 #B958 parts catalog), rub bar cylinder

2шт.

F76889

SHIELD - cylinder, L.H. (In place of F13677), rub bar cylinder

1шт.

F76890

SHIELD - cylinder, R.H. (In place of F13677) (See page 117 #B958 parts catalog), rub bar cylinder

1шт.
