(068) - FLEXIBLE CYLINDER BEATER, BEAN SPECIAL

Запчасти Case IH 403 (068) - FLEXIBLE CYLINDER BEATER, BEAN SPECIAL (72) - SEPARATION

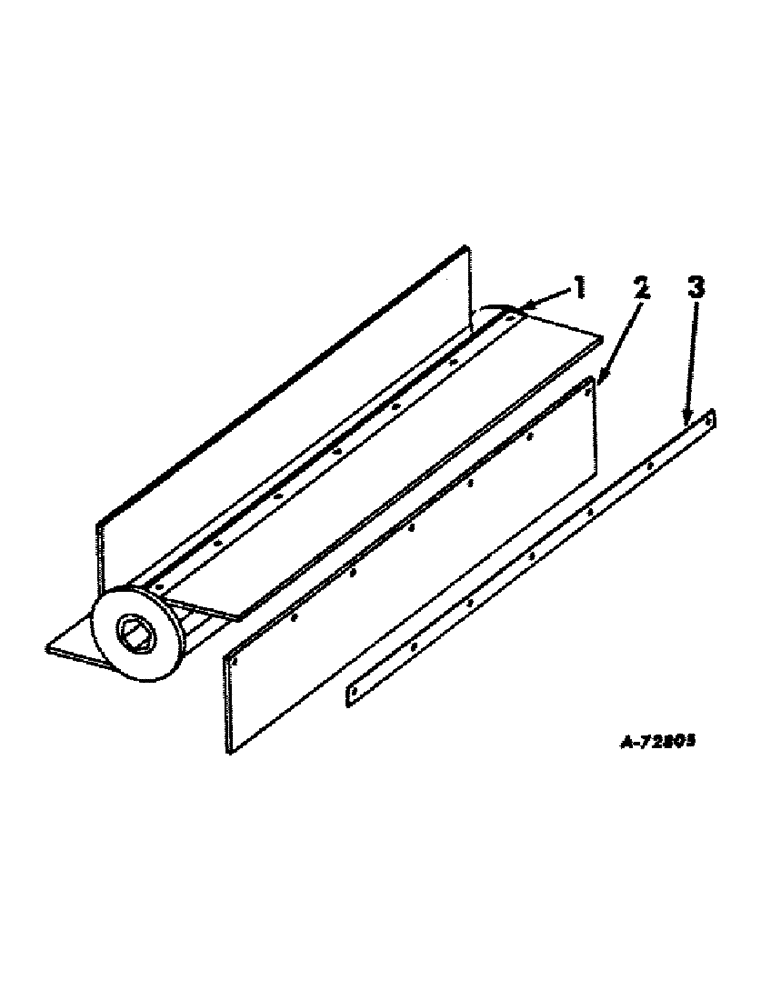

Схема запчастей Case IH 403 - (068) - FLEXIBLE CYLINDER BEATER, BEAN SPECIAL (72) - SEPARATION
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

629731R91

BEATER W/HUB ASSY, flexible cylinder, Not for grain machines w/grain tank serial no. 19528 and above

1шт.

1

170697C1

BEATER ASSY, cyl, For grain machines w/grain tank serial no. 19528 and above

1шт.

2

151228C1

FLAP, cylinder beater

4шт.

3

570611R1

STRIP, cylinder beater blade backing

4шт.

5/16 X 1-1/4 C-Z CAP SCREW W/NUT

1шт.

5/16 C-Z LOCK WASHER

1шт.
