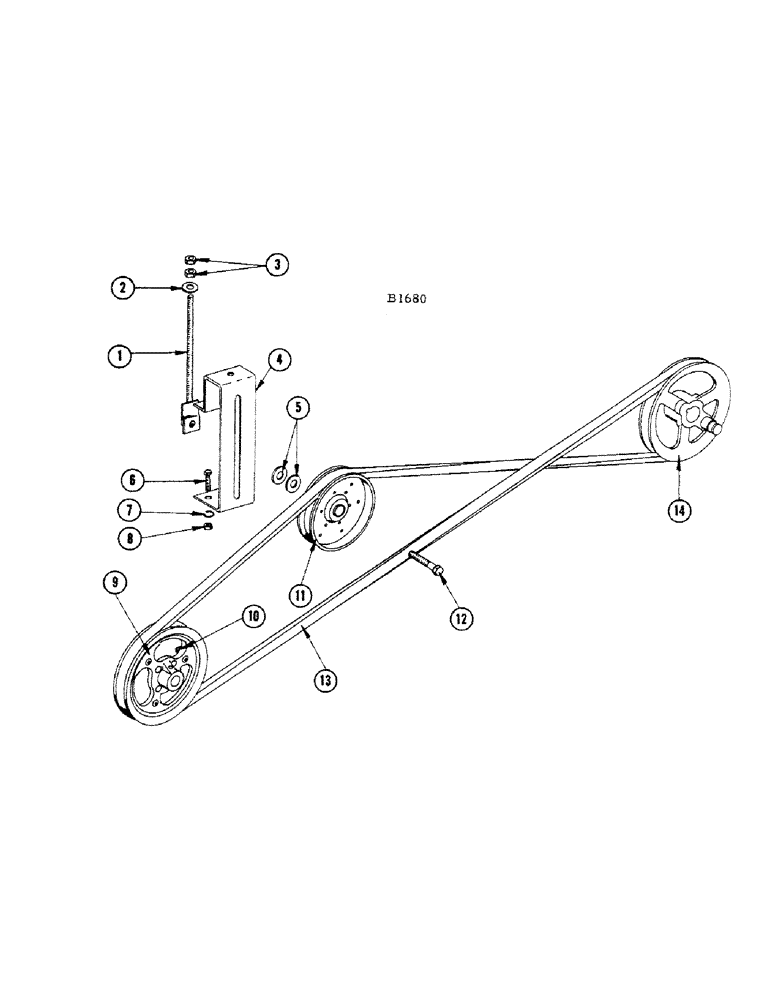

Запчасти Case IH 660 (186) - TAILINGS AUGER DRIVE

1

F81939

ROD - adjustment

1шт.

2

95-6

WASHER,3/8"

LOCKWASHER - for ref. 1 rod 3/8"

1шт.

3

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex for ref. 1 rod

1шт.

4

F20700

SCREW

BRACKET - idler

10шт.

5

95-10

WASHER,5/8"

- 5/16" flat, idler sheave bolt

2шт.

6

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" N.F. hex for ref. 4 bracket

4шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , for Ref. 6 bolt 1/4"

4шт.

8

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex for ref. 6 bolt

4шт.

9

F1462

SHEAVE - driven

1шт.

10

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - 1/8" - 45 degree ref. 9 sheave

1шт.

11

F19311

PULLEY

SHEAVE - idler

1шт.

12

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

for ref. 11 sheave Hex, 5/8"-18 x 2 1/4", G5

1шт.

13

F16447

V-BELT

Tailings Auger Drive

1шт.

14

F80864

SHEAVE - tailings auger drive and strawrack drive

1шт.

F17772

PIN

- strawwalker Pitman (Not shown, see ref. 7, page 122)

1шт.
