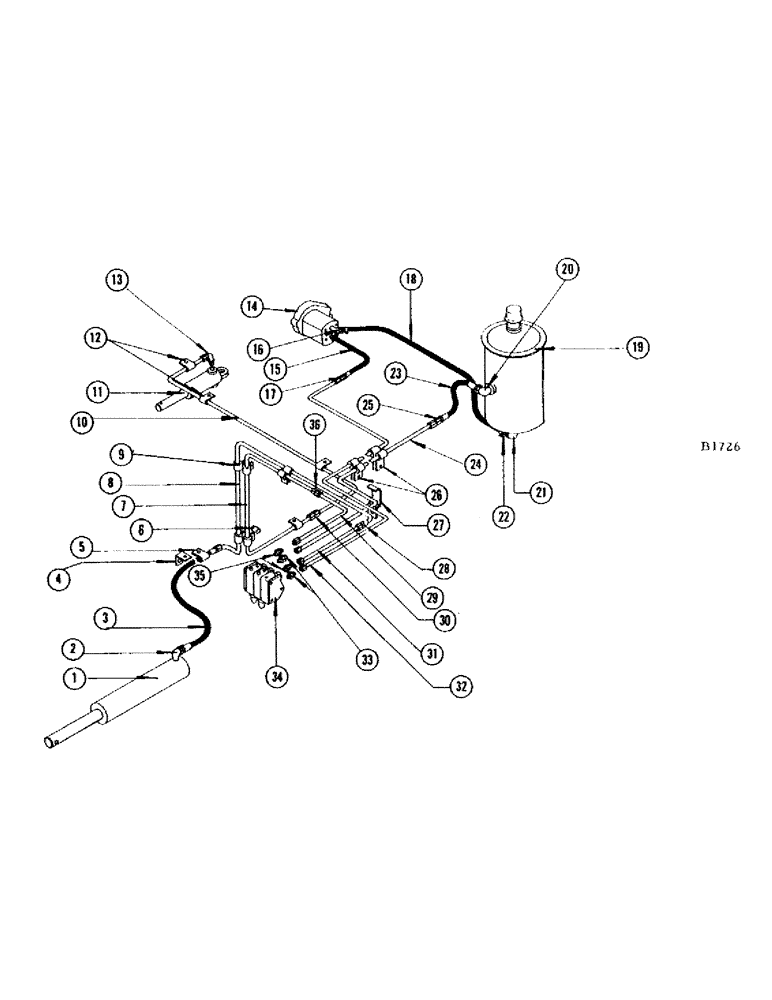

Запчасти Case IH 660 (248) - HYDRAULIC SYSTEM, MANUAL STEERING

1

F82009

CYLINDER - header lift

1шт.

2

221-412

ELBOW,90 Degree, 1/4"-27, NPT

FITTING - elbow, 1/4" - 90 degree hose to cylinder

1шт.

3

F17490

HOSE - header lift cylinder

1шт.

4

F17859

CLIP - hose, F17490, Serial Range: (Bolts-transmission)

1шт.

5

F17860

CLAMP - hose, F17490

1шт.

6

O2270N

SPACER - between clips F17491 and F17867

1шт.

B18299

SPACER

- for use with F17491 and F17867 clips (Not shown)

2шт.

7

F81769

LINE - center, V.S. traction drive

1шт.

8

F81767

LINE - lower, header lift

1шт.

9

F17491

CLIP - hydraulic line for F81767

1шт.

O2342FH

CLIP - hydraulic line for F81767 and F81769

2шт.

10

F81770

LINE - lower, V.S. traction drive

1шт.

11

F76962

CYLINDER - variable speed control

1шт.

12

F17867

CLIP - hydraulic lines (2 for F81767, 4 for F81769 and 3 for F81770)

9шт.

13

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- #6-CTY-S Parker, for F81770 line

1шт.

14

F81631

PUMP - hydraulic (Before #8334601)

1шт.

F91967

PUMP - hydraulic (#8334601 and after)

1шт.

15

F51061

HOSE - F81631 pump to F87262 valve

1шт.

F22508

HOSE - F91967 pump to F87181 valve

1шт.

16

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street, hydraulic pump (Replaces F22020 when stocks are exhausted) 90º, 3/4"-14, NPT

1шт.

F22020

ELBOW - inlet, hydraulic pump (Replaced by 221-415 when stocks are exhausted)

1шт.

F8049

COUPLING - for 221-415 (Replaces F22021 when stocks are exhausted)

1шт.

F22507

COUPLING - hose, F91967 pump

1шт.

217-1004

ADAPTER,1/2" - 14 Male NPTF x 3/4" - 14 Female NPTF

FITTING - connector, 3/4" x 1/2" FG-5, hydraulic pump (Replaces F22021 when stocks are exhausted)

1шт.

F22021

NUT - seal, for F22020 elbow (Replaced by F8049 and 217-1004 when stocks are exhausted)

1шт.

17

218-1035

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, Fem Pipe

FITTING - adapter #8-8GTX-S, F51061 to F91752

1шт.

18

F18673

HOSE - intake, reservoir to F81631 pump

1шт.

F22511

HOSE - intake, reservoir to F91967 pump (Gas engine)

1шт.

F21820

CARRIAGE BOLT

HOSE - intake, reservoir to F91967 pump (Diesel engine)

1шт.

19

F83852

RESERVOIR - oil

1шт.

20

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - F18673 hose to reservoir

1шт.

F8049

COUPLING - F21820 or F22511, Serial Range: hose-reservoir

1шт.

21

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street, reservoir to intake hose 90º, 3/4"-14, NPT

1шт.

22

214-11

X

CLAMP - #11-1/2" hose, for intake hose

1шт.

23

F20910

HOSE - reservoir return

1шт.

24

F81765

LINE - hydraulic, return, Serial Range: valve-reservoir

1шт.

25

218-1035

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, Fem Pipe

CONNECTOR - (#8-86TX-S) F81765 line to F20910 hose

1шт.

26

F17486

CLIP - hydraulic line

4шт.

27

F17487

CLIP - hydraulic line

1шт.

F17488

STRIP - canvas, for use with F17487 clip

1шт.

28

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- (#6-HTX-S) F81766 line to F81767 line

1шт.

29

F81768

LINE - front, V.S. traction drive

1шт.

30

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- (#6-HTX-S) F81769 to F81770 lines

1шт.

31

F81766

LINE - upper, header lift

1шт.

32

F91752

LINE - rear pressure, Serial Range: pump-valve

1шт.

F91753

LINE - front pressure, pump to valve (Not shown)

1шт.

33

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - (#8-FTX-S) lines to valve

2шт.

34

F87262

VALVE

- speed control (Before #8334601)

1шт.

F87181

VALVE

- speed control (#8334601 and after)

1шт.

35

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, HYD., 9/16"-18, 37° x 3/8"-18, NPTF (#6-FTX-A) F81765 and F81768 lines to valve

2шт.

36

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- (#6-HTX-S) F81768 line to F81769 line

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- F22508 to F21843

1шт.
