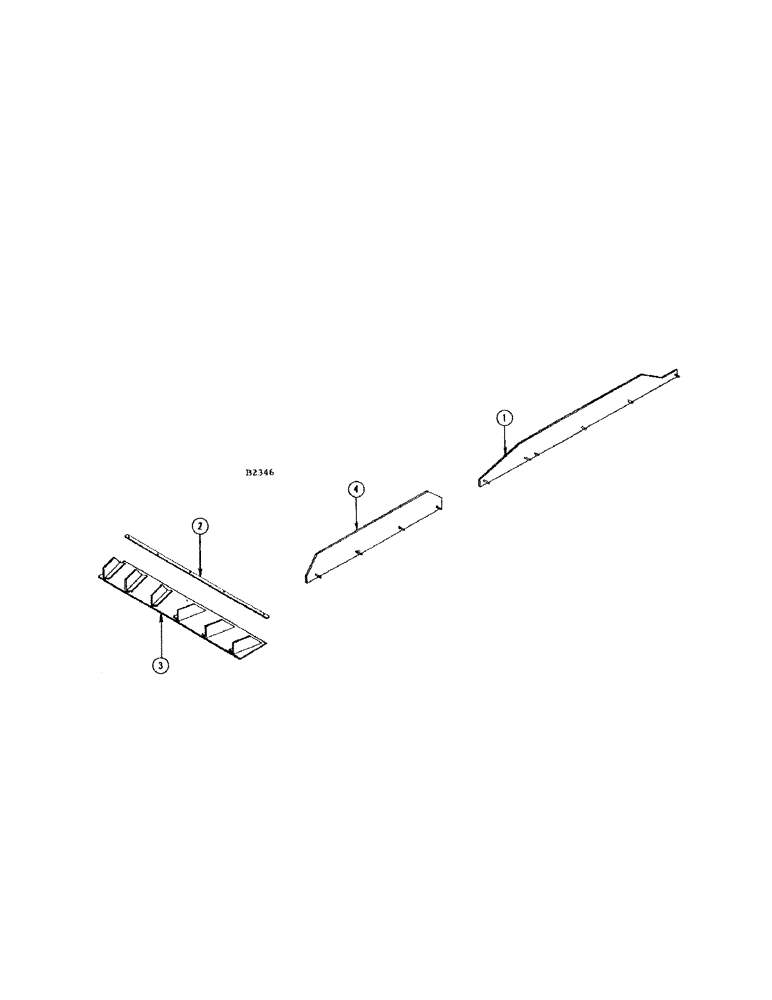

Запчасти Case IH 660 (126[A]) - MEDIUM SLOPE ATTACHMENT

1

F94007

RISER - divider, grain pan

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

12шт.

195-518

WASHER,1/4", SAE

- 1/4" flat and 1/4" lockwasher (192-19)

12шт.

2

F18347

BOLTING STRIP - grain deflector

1шт.

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

and Tinnerman speed nut (131-129) Hex, 1/4"-20 x 3/4", G5, Full Thd

5шт.

3

F94009

DEFLECTOR - grain

1шт.

4

F94008

RISER - divider, chaffer sieve

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

8шт.

195-518

WASHER,1/4", SAE

- 1/4" flat and 1/4" lockwasher (192-19)

8шт.
