(258) - FLOW DIVIDER, POWER STEERING ATTACHMENT

Запчасти Case IH 800 (258) - FLOW DIVIDER, POWER STEERING ATTACHMENT (35) - HYDRAULIC SYSTEMS

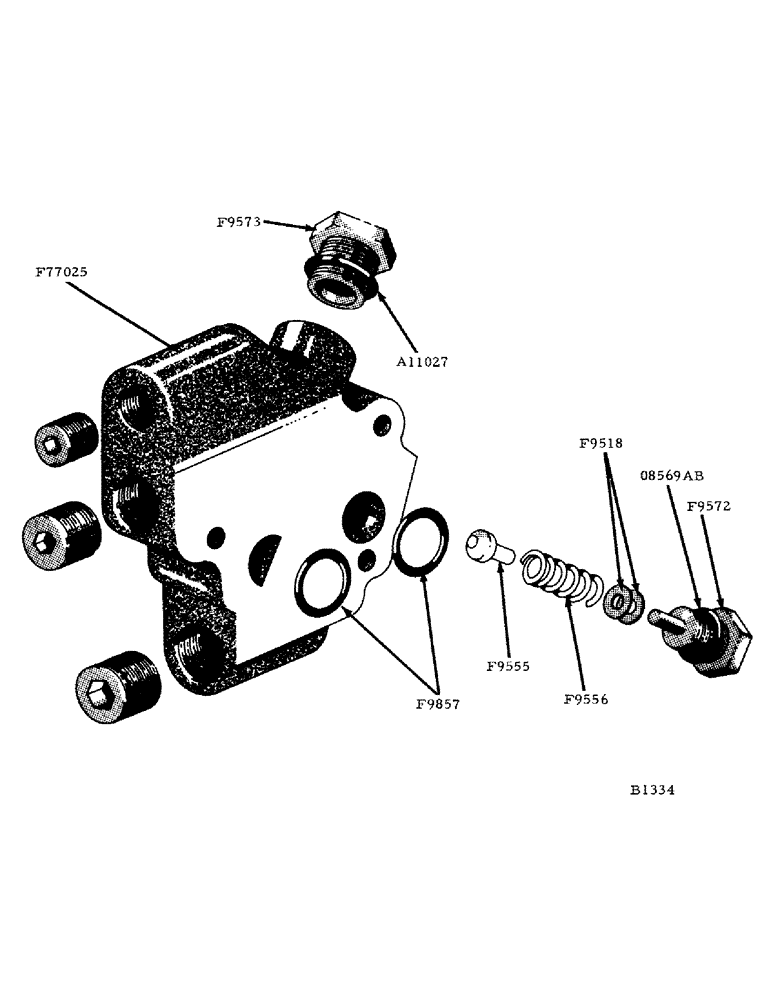

Схема запчастей Case IH 800 - (258) - FLOW DIVIDER, POWER STEERING ATTACHMENT (35) - HYDRAULIC SYSTEMS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A11027

GASKET

O" RING (3/32" x 3/4" I.D.)

1шт.

F9518

SHIM - relief valve

1шт.

F9555

POPPET - relief

1шт.

F9556

SPRING - relief

1шт.

F9572

PLUG - (5/8" - 18) relief spring

1шт.

F9573

PLUG - spool

1шт.

F9857

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

"O" RING - (3/32" x 1-1/4" O.D.) between flow divider and pump

2шт.

F77025

FLOW DIVIDER - complete

1шт.

08569AB

"O" RING - (3/32" x 1/2" I.D.) for F9572 plug

1шт.
