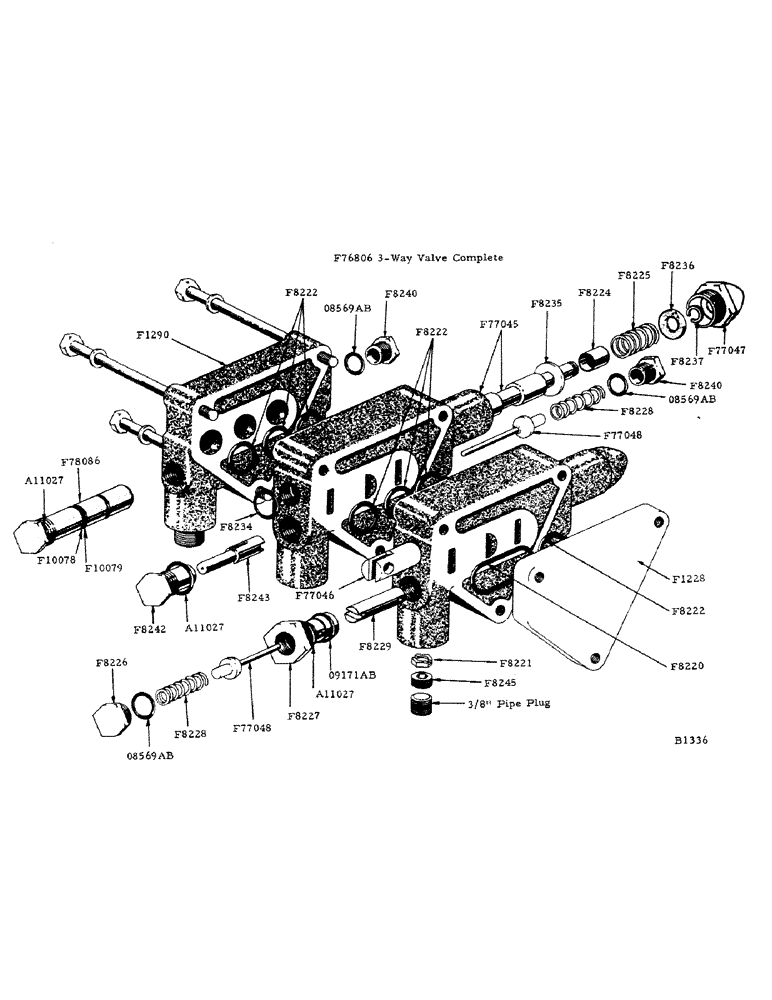

Запчасти Case IH 800 (260) - PORT PLATE ASSEMBLY (35) - HYDRAULIC SYSTEMS

A11027

GASKET

"O" RING (3/32" x 3/4" I.D.)

1шт.

F1290

BODY - port plate

1шт.

5/16" - 18 x 4-7/8" N.C. cap screw w/lockwasher

3шт.

1/2" N. F. pipe plug

2шт.

F8222

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

"O" RING (1/16" x 3/4" I.D. - 90 Durometer) for port plate

3шт.

F8240

PLUG - upper port plate

1шт.

F10078

SEAL

WASHER - back up

1шт.

F10079

X

"O" RING

1шт.

F78086

CARTRIDGE - repair, for F1290 port plate

1шт.

08569AB

"O" RING (3/32" x 1/2" I.D.)

1шт.

A11027

GASKET

"O" RING (3/32" x 3/4" I.D.), header control section

1шт.

F8222

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

"O" RING (1/16" x 3/4" I.D. - 90 Durometer) for F77045 body, header control section

3шт.

F8223

PLATE - orifice (.0890 dia.) not shown, header control section

1шт.

F8224

SLEEVE

- spool, header control section

1шт.

F78876 kit - repair, for F76806 valve (consists of 3-A11027, 1-F8220, 7-F8222, 4-F8234, 2-F77048, 3-08569AB, 1-F10079, 1-09171AB)

1шт.

Part of Header Control Section w/Spool Body P/N F77045

1шт.

F8225

SPRING - spool centering, header control section

1шт.

F78876 kit - repair, for F76806 valve (consists of 3-A11027, 1-F8220, 7-F8222, 4-F8234, 2-F77048, 3-08569AB, 1-F10079, 1-09171AB)

1шт.

Part of Header Control Section w/Spool Body P/N F77045

1шт.

F8228

SPRING

- lock-out, header control section

1шт.

F78876 kit - repair, for F76806 valve (consists of 3-A11027, 1-F8220, 7-F8222, 4-F8234, 2-F77048, 3-08569AB, 1-F10079, 1-09171AB)

1шт.

Part of Header Control Section w/Spool Body P/N F77045

1шт.

F8234

"O" RING - (3/32" x 3/4" I.D.), header control section

1шт.

F78876 kit - repair, for F76806 valve (consists of 3-A11027, 1-F8220, 7-F8222, 4-F8234, 2-F77048, 3-08569AB, 1-F10079, 1-09171AB)

1шт.

Part of Header Control Section w/Spool Body P/N F77045

1шт.

F8235

WASHER

(59/64" O.D.) back up, header control section

1шт.

F78876 kit - repair, for F76806 valve (consists of 3-A11027, 1-F8220, 7-F8222, 4-F8234, 2-F77048, 3-08569AB, 1-F10079, 1-09171AB)

1шт.

Part of Header Control Section w/Spool Body P/N F77045

1шт.

F8236

SHIM

WASHER (51/64" O.D.) back up, header control section

1шт.

F78876 kit - repair, for F76806 valve (consists of 3-A11027, 1-F8220, 7-F8222, 4-F8234, 2-F77048, 3-08569AB, 1-F10079, 1-09171AB)

1шт.

Part of Header Control Section w/Spool Body P/N F77045

1шт.

F8237

RING

SNAP RING - (1/2" sq. clsd.), header control section

1шт.

F78876 kit - repair, for F76806 valve (consists of 3-A11027, 1-F8220, 7-F8222, 4-F8234, 2-F77048, 3-08569AB, 1-F10079, 1-09171AB)

1шт.

Part of Header Control Section w/Spool Body P/N F77045

1шт.

F8240

PLUG, header control section

1шт.

F78876 kit - repair, for F76806 valve (consists of 3-A11027, 1-F8220, 7-F8222, 4-F8234, 2-F77048, 3-08569AB, 1-F10079, 1-09171AB)

1шт.

Part of Header Control Section w/Spool Body P/N F77045

1шт.

F8242

PLUG, header control section

1шт.

F78876 kit - repair, for F76806 valve (consists of 3-A11027, 1-F8220, 7-F8222, 4-F8234, 2-F77048, 3-08569AB, 1-F10079, 1-09171AB)

1шт.

Part of Header Control Section w/Spool Body P/N F77045

1шт.

F8243

PLUNGER, header control section

1шт.

F78876 kit - repair, for F76806 valve (consists of 3-A11027, 1-F8220, 7-F8222, 4-F8234, 2-F77048, 3-08569AB, 1-F10079, 1-09171AB)

1шт.

Part of Header Control Section w/Spool Body P/N F77045

1шт.

F8245

RETAINER - orifice plate retainer (not shown), header control section

1шт.

F77045

BODY - w/spool, header control section, Includes: P/N F8224, P/N F8225, P/N F8228, P/N F8234, P/N F8235, P/N F8236, P/N F8237, P/N F8240, P/N F8242, P/N F77048 and P/N 08569AB

1шт.

3/8" N.F. pipe plug, header control section

1шт.

F77047

CAP

- spool, header control section

1шт.

F78876 kit - repair, for F76806 valve (consists of 3-A11027, 1-F8220, 7-F8222, 4-F8234, 2-F77048, 3-08569AB, 1-F10079, 1-09171AB)

1шт.

Part of Header Control Section w/Spool Body P/N F77045

1шт.

F77048

VALVE POPPET

POPPET - relief, header control section

1шт.

F78876 kit - repair, for F76806 valve (consists of 3-A11027, 1-F8220, 7-F8222, 4-F8234, 2-F77048, 3-08569AB, 1-F10079, 1-09171AB)

1шт.

Part of Header Control Section w/Spool Body P/N F77045

1шт.

08569AB

"O" RING (3/32" x 1/2" I.D.) for F8240 plug, header control section

1шт.

F78876 kit - repair, for F76806 valve (consists of 3-A11027, 1-F8220, 7-F8222, 4-F8234, 2-F77048, 3-08569AB, 1-F10079, 1-09171AB)

1шт.

Part of Header Control Section w/Spool Body P/N F77045

1шт.

A11027

GASKET

"O" RING (3/32" x 3/4" I.D.), variable speed control section

1шт.

F1228

PLATE - cover, F76806 valve, variable speed control section

1шт.

F8220

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

"O" RING - for F1228 cover (oval shaped), variable speed control section

1шт.

F8221

PLATE - orifice (.0240 dia.), variable speed control section

1шт.

F8222

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

"O" RING (1/16" x 3/4" I.D. - 90 Durometer) for F1228 cover, variable speed control section

1шт.

F8224

SLEEVE

- spool, variable speed control section

1шт.

F78876 kit - repair, for F76806 valve (consists of 3-A11027, 1-F8220, 7-F8222, 4-F8234, 2-F77048, 3-08569AB, 1-F10079, 1-09171AB)

1шт.

Part of variable speed control w/spool body P/N F77046

1шт.

F8225

SPRING - spool centering, variable speed control section

1шт.

F78876 kit - repair, for F76806 valve (consists of 3-A11027, 1-F8220, 7-F8222, 4-F8234, 2-F77048, 3-08569AB, 1-F10079, 1-09171AB)

1шт.

Part of variable speed control w/spool body P/N F77046

1шт.

F8226

X

PLUG - slotted, variable speed control section

1шт.

F78876 kit - repair, for F76806 valve (consists of 3-A11027, 1-F8220, 7-F8222, 4-F8234, 2-F77048, 3-08569AB, 1-F10079, 1-09171AB)

1шт.

Part of variable speed control w/spool body P/N F77046

1шт.

F8227

SEAT - lock-out,variable speed control section

1шт.

F78876 kit - repair, for F76806 valve (consists of 3-A11027, 1-F8220, 7-F8222, 4-F8234, 2-F77048, 3-08569AB, 1-F10079, 1-09171AB)

1шт.

Part of variable speed control w/spool body P/N F77046

1шт.

F8228

SPRING

- lock-out, variable speed control section

1шт.

F78876 kit - repair, for F76806 valve (consists of 3-A11027, 1-F8220, 7-F8222, 4-F8234, 2-F77048, 3-08569AB, 1-F10079, 1-09171AB)

1шт.

Part of variable speed control w/spool body P/N F77046

1шт.

F8229

PLUNGER

- lock-out, variable speed control section

1шт.

F78876 kit - repair, for F76806 valve (consists of 3-A11027, 1-F8220, 7-F8222, 4-F8234, 2-F77048, 3-08569AB, 1-F10079, 1-09171AB)

1шт.

Part of variable speed control w/spool body P/N F77046

1шт.

F8234

"O" RING (3/32" x 3/4" I.D.), variable speed control section

1шт.

F78876 kit - repair, for F76806 valve (consists of 3-A11027, 1-F8220, 7-F8222, 4-F8234, 2-F77048, 3-08569AB, 1-F10079, 1-09171AB)

1шт.

Part of variable speed control w/spool body P/N F77046

1шт.

F8235

WASHER

(59/64" O.D.) back up, variable speed control section

1шт.

F78876 kit - repair, for F76806 valve (consists of 3-A11027, 1-F8220, 7-F8222, 4-F8234, 2-F77048, 3-08569AB, 1-F10079, 1-09171AB)

1шт.

Part of variable speed control w/spool body P/N F77046

1шт.

F8236

SHIM

WASHER (51/64" O.D.) back up, variable speed control section

1шт.

F78876 kit - repair, for F76806 valve (consists of 3-A11027, 1-F8220, 7-F8222, 4-F8234, 2-F77048, 3-08569AB, 1-F10079, 1-09171AB)

1шт.

Part of variable speed control w/spool body P/N F77046

1шт.

F8237

RING

SNAP RING - (1/2" sq. clsd.), variable speed control section

1шт.

F78876 kit - repair, for F76806 valve (consists of 3-A11027, 1-F8220, 7-F8222, 4-F8234, 2-F77048, 3-08569AB, 1-F10079, 1-09171AB)

1шт.

Part of variable speed control w/spool body P/N F77046

1шт.

F8245

RETAINER - orifice plate, variable speed control section

1шт.

F77046

BODY - w/spool, variable speed control, Includes all items marked, section

1шт.

3/8" pipe plug, variable speed control section

1шт.

F77047

CAP

- spool, variable speed control section

1шт.

F78876 kit - repair, for F76806 valve (consists of 3-A11027, 1-F8220, 7-F8222, 4-F8234, 2-F77048, 3-08569AB, 1-F10079, 1-09171AB)

1шт.

Part of variable speed control w/spool body P/N F77046

1шт.

F77048

VALVE POPPET

POPPET - relief, variable speed control section

1шт.

F78876 kit - repair, for F76806 valve (consists of 3-A11027, 1-F8220, 7-F8222, 4-F8234, 2-F77048, 3-08569AB, 1-F10079, 1-09171AB)

1шт.

Part of variable speed control w/spool body P/N F77046

1шт.

08569AB

"O" RING - (3/32" x 1/2" I.D.) for F8226 plug, variable speed control section

1шт.

F78876 kit - repair, for F76806 valve (consists of 3-A11027, 1-F8220, 7-F8222, 4-F8234, 2-F77048, 3-08569AB, 1-F10079, 1-09171AB)

1шт.

Part of variable speed control w/spool body P/N F77046

1шт.

09171AB

"O" RING - (3/32" x 9/16" I.D.), variable speed control section

1шт.

F78876 kit - repair, for F76806 valve (consists of 3-A11027, 1-F8220, 7-F8222, 4-F8234, 2-F77048, 3-08569AB, 1-F10079, 1-09171AB)

1шт.

Part of variable speed control w/spool body P/N F77046

1шт.
