(051) - HINGED FEED PLATE FOR FEED SPOUT

Запчасти Case IH 800 (051) - HINGED FEED PLATE FOR FEED SPOUT (60) - PRODUCT FEEDING

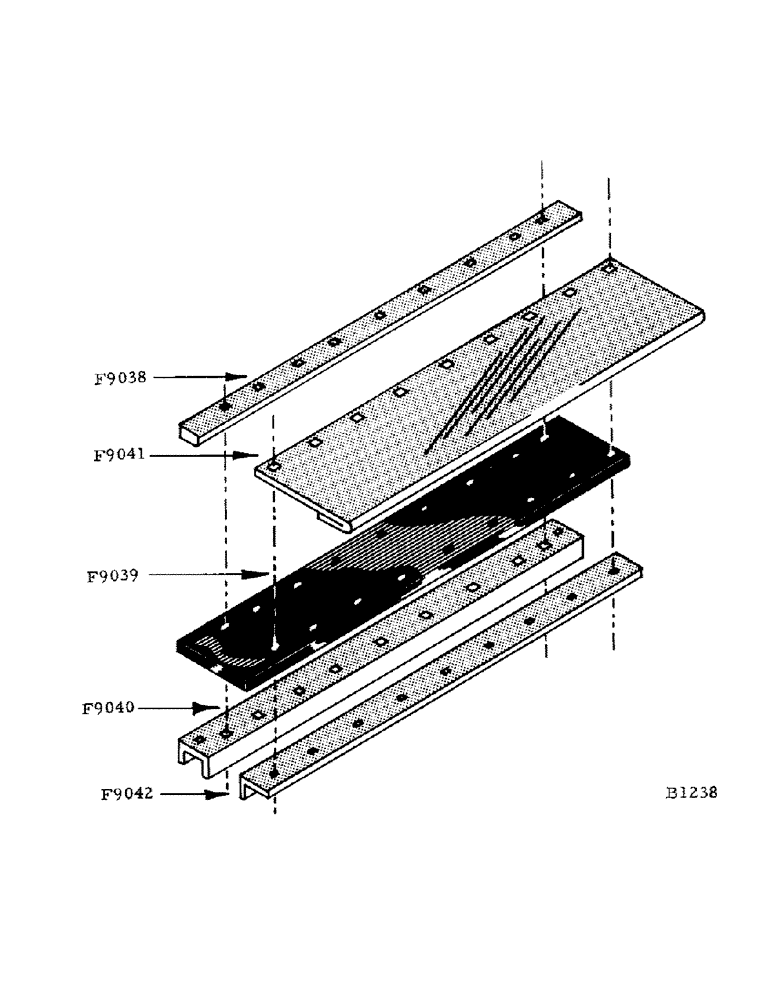

Схема запчастей Case IH 800 - (051) - HINGED FEED PLATE FOR FEED SPOUT (60) - PRODUCT FEEDING
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

F9038

STRIP - spacer, feeder spout upper floor

1шт.

F9039

RUBBER - hinge plate

1шт.

F9040

REINFORCEMENT - feed plate hinge

1шт.

1/4" x 3/4" carr. bolt w/hex. nut and lockwasher

7шт.

F9041

FEED PLATE

1шт.

F9042

STRIP - bolting, for feed plate

1шт.

1/4" x 5/8" carr. bolt w/hex. nut and lockwasher

7шт.
