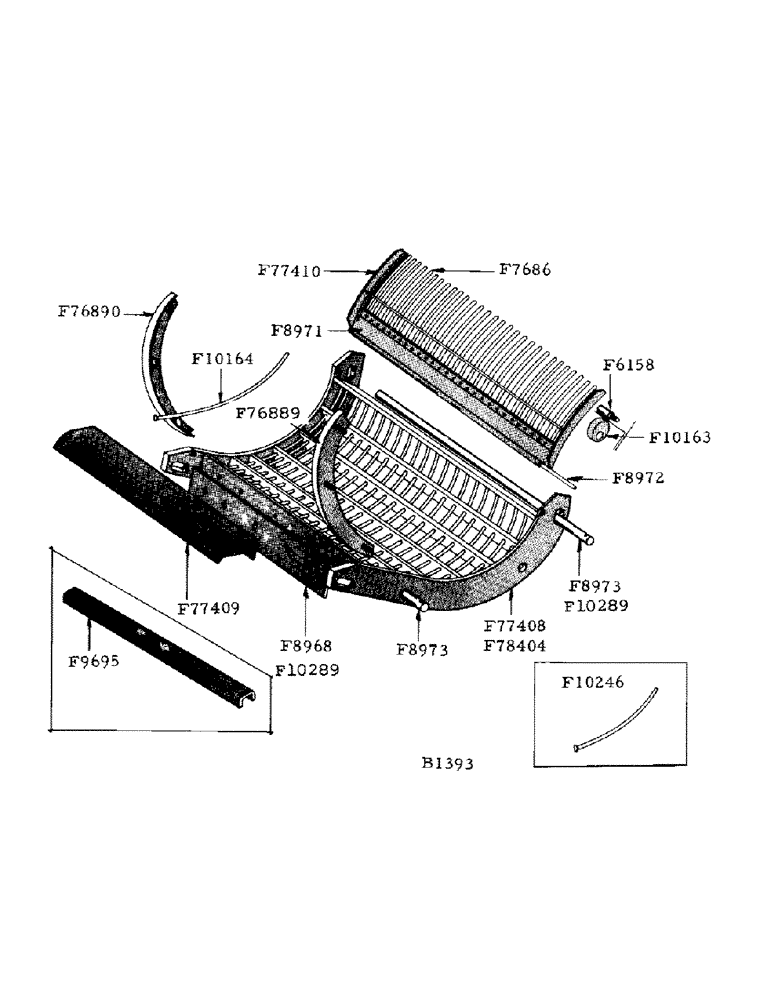

Запчасти Case IH 800 (061) - CONCAVES, TINES AND REMOVABLE FEED PLATE, RUB BAR CYLINDER (66) - THRESHING

F6158

STUD - tine assembly guide (standard before no. 8179101) use F10163 w/3/8" hex bolt when these stocks are exhausted

2шт.

3/8" N.C. hex nut and lockwasher

2шт.

F7686

TINE - grate

19шт.

1/4" x 3/4" carr. bolt w/hex nut and lockwasher

19шт.

F8968

WEAR PLATE - concave

1шт.

F8971

STRIP - bolting, grate tine

1шт.

F8972

ROD - grate tine hinge

1шт.

F8973

SHAFT - concave, front and rear (standard on machines built before no. 8179751) use F10289 when these stocks are exhausted

2шт.

F10163

ECCENTRIC - tine assembly guide (standard after no. 8179101) replaces F6158

2шт.

F10164

ROD

- concave, removable

19шт.

F10289

SHAFT - concave, front and rear (standard on machines after no. 8179751) will replace F8973 on earlier models

2шт.

F76889

SHIELD - cylinder, with studs, L.H.

1шт.

1/4" N.C. hex nut and lockwasher

3шт.

F76890

SHIELD - cylinder, with studs, R.H.

1шт.

1/4" N.C. hex nut and lockwasher

3шт.

F77408

CONCAVE (standard on machines before no. 8179101) use F78404 when these stocks are exhausted

1шт.

F77409

PLATE - feed, removable

1шт.

F78404

CONCAVE - rub bar (standard on machines after no. 8179101) replaces F77408

1шт.

F9695

PLATE - concave filler (special for beans), attachment

4шт.

5/16" x 1-1/4" carr. bolt w/hex. nut and lockwasher, bean concave filler attachment

12шт.

01558CH

WASHER (13/32" I.D. x 1-1/2" O.D. #10 or 12 ga.) for F9695, bean concave filler attachment

12шт.

F10246

ROD - short concave, filler attachment

19шт.
