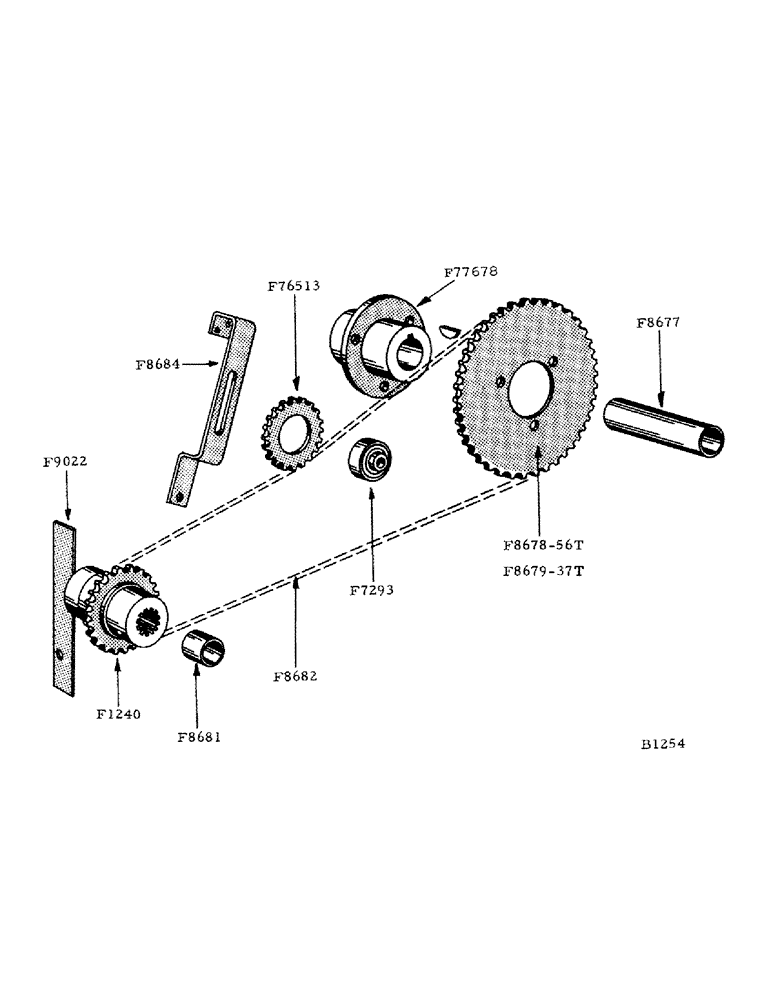

Запчасти Case IH 800 (068) - SLOW CYLINDER SPEED ATTACHMENT, FOR COMBINES EQUIPPED WITH VARIABLE SPEED CYLINDER DRIVE (66) - THRESHING

B12480

CHAIN (AG)

CHAIN - extension, for F8682 chain used with large tooth sprockets (contains 9 riveted and 1-conn. link #60 chain)

1шт.

Not included in F78985M slow cylinder speed attachment. Sprockets F8678 and F8679 will be furnished separately for greater versatility in such crops as beans.

1шт.

B12510

CHAIN LINK

LINK - connecting #60 roller chain

1шт.

F1240

SPROCKET (14T) cylinder drive

1шт.

F7293

BEARING

(Fafnir #203PPG) for tightener sprocket F76513)

1шт.

F8677

SPACER (1-1/2" O.D. x 6-13/16" long) cylinder shaft

1шт.

F8678

SPROCKET (56T) cylinder drive, driven (200 RPM)

1шт.

Not included in F78985M slow cylinder speed attachment. Sprockets F8678 and F8679 will be furnished separately for greater versatility in such crops as beans.

1шт.

3/8" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

3шт.

F8679

SPROCKET (37T) cylinder drive, driven (303 RPM)

1шт.

Not included in F78985M slow cylinder speed attachment. Sprockets F8678 and F8679 will be furnished separately for greater versatility in such crops as beans.

1шт.

3/8" x 1-1/2" N.F. hex. bolt w/hex. nut and lockwasher

3шт.

F8681

SPACER (1-1/2" x 2-1/16" long) main drive shaft

1шт.

F8682

X

CHAIN - cylinder drive (use 2-B12478 chain, 1-B12479 chain, 1-B12481 chain and 1-B12510 conn. link #60 roller chain) see chain page

1шт.

F8683

CHAIN EXTENSION (B12480)

1шт.

Not included in F78985M slow cylinder speed attachment. Sprockets F8678 and F8679 will be furnished separately for greater versatility in such crops as beans.

1шт.

F8684

BRACKET - tightener

1шт.

5/16" x 1" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

F9022

LOCK - sprocket (bolts to rear cylinder post)

1шт.

F76513

SPROCKET (14T) tightener (includes 1-F7293 bearing)

1шт.

5/8" x 2-1/2" N.F. hex. bolt w/hex. nut, lockwasher and plain washer

1шт.

F77678

HUB - with flange, cylinder drive sprockets

1шт.

#29 Woodruff key

1шт.

02373B

SPROCKET (48T) cylinder drive

1шт.

02374B

SPROCKET (52T) cylinder drive

1шт.

08383HT1

SPROCKET (44T) cylinder drive

1шт.

T19471

PLOW BOLT

BOLT (3/8" x 1-1/4" #3 plow w/hex. nut) for F8684 bracket

1шт.

B12509

DRAG LINK

LINK - connecting #60 roller chain, slow cylinder speed attachment

1шт.

B12510

CHAIN LINK

LINK - offset #60 roller chain, slow cylinder speed attachment

1шт.

B12511

LINK

- roller, #60 roller chain, slow cylinder speed attachment

1шт.

F8678

SPROCKET (56T) cylinder drive (on cylinder shaft) 200RPM, slow speed attachment

1шт.

Sprockets F8678 and F8679 are not included in F78990M attachment. They will be furnished separately, however, to provide a greater variety of cylinder speeds.

1шт.

F8679

SPROCKET (37T) cylinder drive (on cylinder shaft) 303RPM, slow speed attachment

1шт.

Sprockets F8678 and F8679 are not included in F78990M attachment. They will be furnished separately, however, to provide a greater variety of cylinder speeds.

1шт.

F76513

SPROCKET (14T) tightener, cylinder drive (replaces F77429), slow speed attachment

1шт.

F77674

SPROCKET (14T) cylinder drive (on main drive shaft) replaces F76882 hub and sprocket, slow speed attachment

1шт.

3/8" x 3/4" N.C. cup pt. sq. hd. set screw w/hex. jam nut, slow cylinder speed attachment

2шт.

02018AB

KEY (3/8" sq. x 2-1/2") for F77674 sprocket to F9624 shaft, slow cylinder speed attachment

1шт.

02373B

SPROCKET (48T) cylinder drive, slow speed attachment

1шт.

02374B

SPROCKET (52T) cylinder drive, slow speed attachment

1шт.

08383HT1

SPROCKET (44T) cylinder drive, slow speed attachment

1шт.
