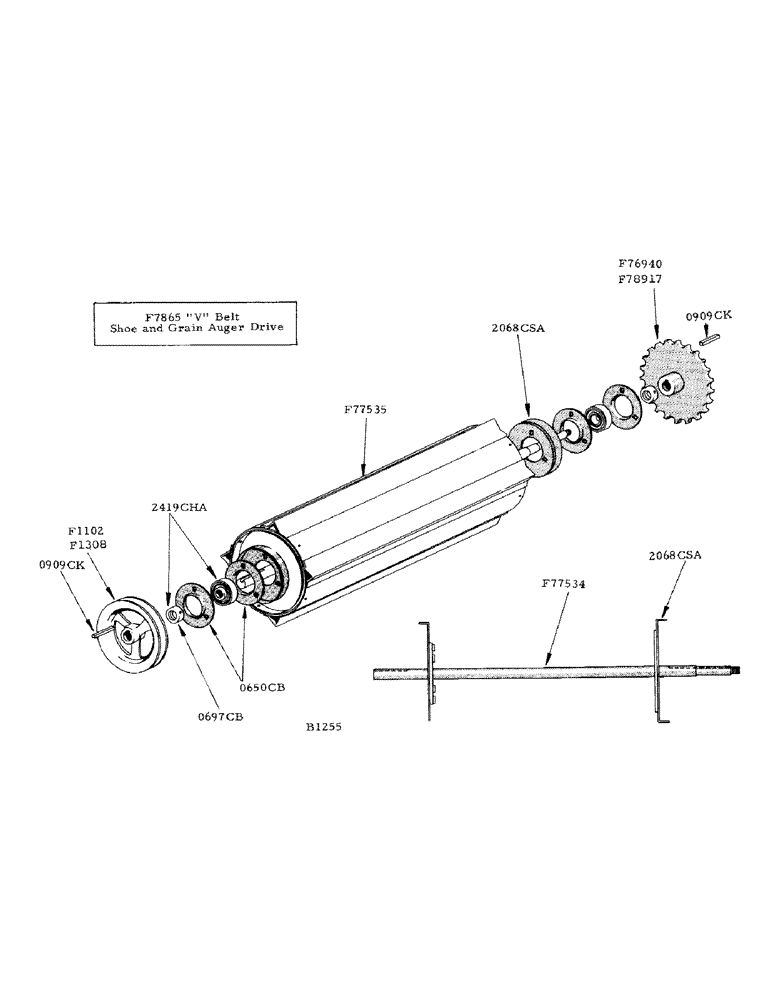

Запчасти Case IH 800 (073) - BEATER (72) - SEPARATION

F1102

SHEAVE (7-1/4" O.D.) beater, R.H. (500 RPM)

1шт.

5/16" x 3/4" N.C. cup pt. set screw w/hex. nut

1шт.

F7872

CHAIN - beater drive (use 2-B12478 chain and 1-B12480 chain #60 roller chain)

1шт.

See chain page

1шт.

F76940

SPROCKET (40T) beater drive

1шт.

F77534

SHAFT - beater

1шт.

F77535

BEATER - less shaft

1шт.

5/16" x 5/8" N.C. hex. bolt and lockwasher

12шт.

0650CB

FLANGE - for bearing 2419CHA

4шт.

3/8" x 1" carr. bolt w/hex. nut and lockwasher

6шт.

0697CB

COLLAR - for 2419CHA bearing

2шт.

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING (Fafnir #RA-103PPB2 w/0697CB collar) beater shaft

2шт.

0909CK

KEY (5/16" x 5/16" x 1-5/8") F1102 sheave, F77612 limiter and F76940 sprocket to F77516 shaft

2шт.

2068CSA

PLATE - mounting, beater bearing

2шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

8шт.

F1308

SHEAVE - (11-3/16" O.D.) shoe - grain auger drive (replaces F1102), slow beater speed attachment

1шт.

F10653

"V" BELT - shoe - grain auger drive (replaces F7865), slow beater speed attachment

1шт.

F10654

X

CHAIN - extension, for F7872 beater drive chain (use 2-B12481 chain, 1-B12509 conn. link and 1-B12511 roller link #60 roller chain), slow speed attachment

1шт.

F78917

SPROCKET (63T) beater drive (replaces F76940), slow speed attachment

1шт.
