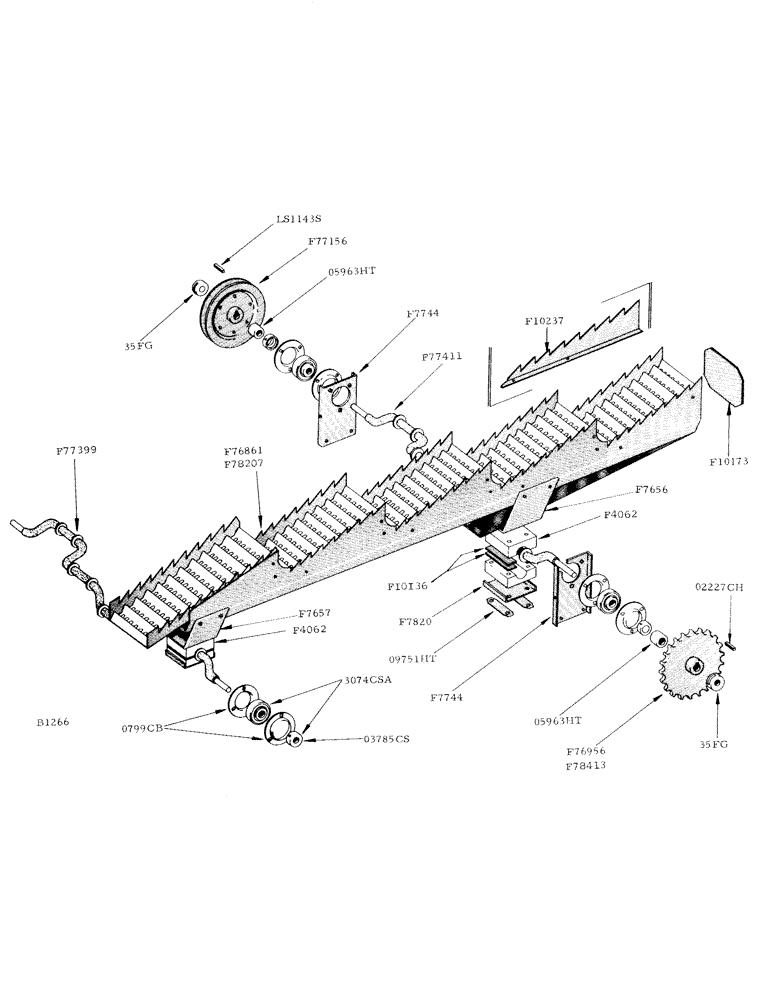

Запчасти Case IH 800 (086) - STRAWWALKER (72) - SEPARATION

F4062

BEARING (hard maple) front strawwalker crankshaft

6шт.

F4063

BEARING (hard maple) rear strawwalker crankshaft

6шт.

F7656

BRACKET - bearing, rear

3шт.

F7657

BRACKET - bearing, front

3шт.

F7820

CAP - bearing

6шт.

1/8" str. Lincoln fitting #5000

3шт.

1/8" 90deg. Lincoln fitting #5400

3шт.

F10136

SHIM

- bearing

36шт.

F10173

COVER - rear return pan

3шт.

F76861

STRAWWALKER - complete (use F78207 when these stocks are exhausted)

3шт.

F77399

CRANKSHAFT - front strawwalker

1шт.

F79342

STRAW WALKER

STRAWWALKER - complete (replaces F76861 when those stocks are exhausted) (Replaces F78207)

3шт.

0799CB

FLANGE - for 3074CSA bearing

4шт.

5/16" x 3/4" carr. bolt w/hex. nut and lockwasher

6шт.

03785CS

COLLAR - (Fafnir #S1100K) for 3074CSA bearing

2шт.

3074CSA

BALL BEARING

(Fafnir #RA-100PPB w/03785CS collar) for crankshaft

2шт.

09751HT

STRAP - lock, for bearing cap

12шт.

F7744

SUPPORT - strawwalker crankshaft, drive

2шт.

F7870

CHAIN - strawwalker drive (use 2-B12517 chain, 2-B12520 chain, 1-B12521 conn. link, 1-B12522 offset link and 1-B12523 roller link #CA2050) before no. 8160601 (see F10184, F10310 and F10449)

1шт.

F10184

CHAIN - drives conveyor rake, strawwalker and tailings auger (use 4-B12474 chain, 1-B12475 chain and 1-B12476 chain #50 roller) after no. 8160601 grain machines (see F10310)

1шт.

F10310

X

CHAIN - drives conveyor rake, strawwalker, and tailings auger (use 5-B12474 chain, 1-B12476 chain, 1-B12505 conn. link, 1-B12506 offset link and 1-B12507 roller link #50-roller chain) after no. 8160601 - rice and bean specials (see F7870 and F10184)

1шт.

F10449

CHAIN - extension, for F7870 (use 2-B12520 chain, 1-B12521 conn. link, 1-B12522 offset link and 3-B12523 roller link #CA2050 roller chain) for use with F6078 idler on machines before no. 8160601 and rice and bean specials, strawwalker drive

1шт.

F76956

SPROCKET (24T-ext. pitch) strawwalker drive (standard before no. 8160601) use F78413 when these stocks are exhausted

1шт.

F77156

SHEAVE (12" O.D.) strawspreader drive (attachment), strawwalker

1шт.

F77411

CRANKSHAFT - rear strawwalker, drive

1шт.

F78413

SPROCKET (48T-stand. pitch) strawwalker drive (standard after no. 8160601) will replace F76956 when those stocks are exhausted

1шт.

0799CB

FLANGE - for 3074CSA bearing, strawwalker drive

4шт.

5/16" x 3/4" carr. bolt w/hex. nut and lockwasher, strawwalker drive

6шт.

02227CH

KEY (1/4" x 3/4") for F76956 or F78413 sprocket, strawwalker drive

1шт.

03785CS

COLLAR - for 3074CSA bearing, strawwalker drive

2шт.

3074CSA

BALL BEARING

(Fafnir #RA-100PPB w/03785CS) crankshaft, strawwalker drive

2шт.

35FG

COLLAR - rear crankshaft, strawwalker drive

2шт.

05963HT

SPACER - rear crankshaft, strawwalker drive

2шт.

LS1143S

X

KEY (1/4" sq x 2" long) F77156 sheave, strawwalker drive

1шт.

F7435

CLIP - hold down, for horizontal grid cover, strawwalker filler attachment

12шт.

1/4" x 1/2" N.C. rd. hd. mach. screw w/hex nut, lockwasher and plain washer, strawwalker filler attachment

12шт.

F9625

COVER - vertical grid for strawwalker, filler attachment

12шт.

F9626

COVER - horizontal grid for strawwalker, filler attachment

6шт.

F10236

J BOLT, high riser attachment

12шт.

F10237

RISER - center, high riser attachment

6шт.
