(127) - REAR HOOD

Запчасти Case IH 800 (127) - REAR HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

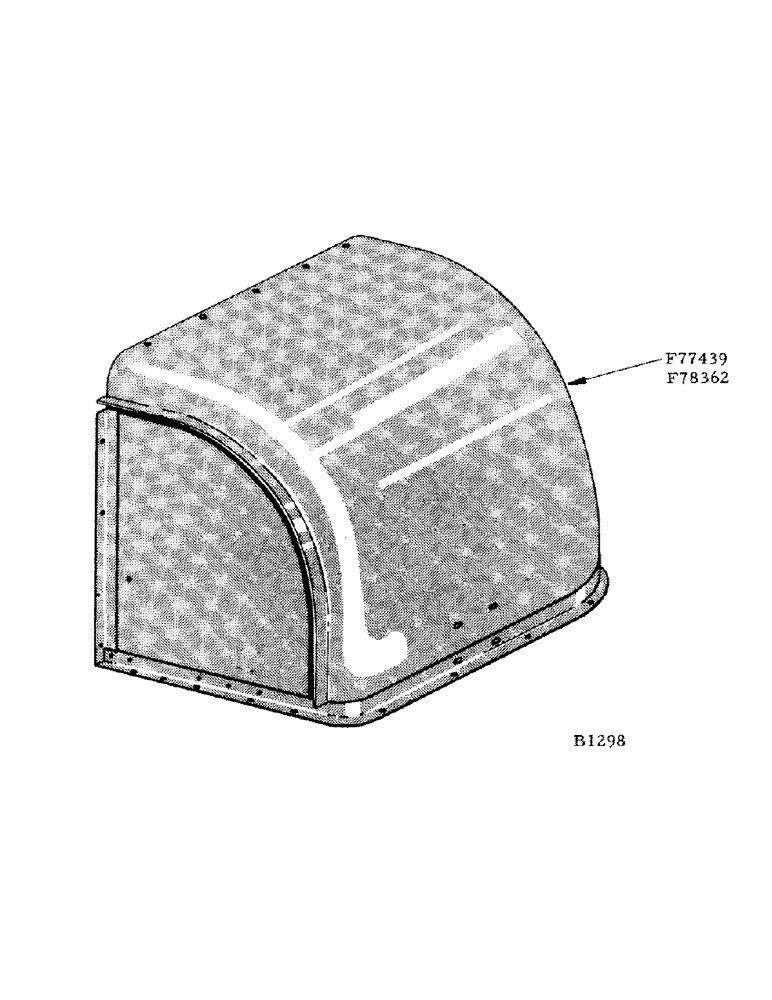

Схема запчастей Case IH 800 - (127) - REAR HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

F77439

HOOD - rear use F78362 when these stocks are exhausted

1шт.

1/4" x 3/4" N.F. hex. bolt w/hex. nut, lockwasher and plain washer

8шт.

1/4" x 1/2" N.C. rd. hd. mach. screw w/hex. nut, lockwasher and plain washer

8шт.

F78362

HOOD - rear (replaces F77439 when those stocks are exhausted)

1шт.
