(264) - F84107 DISTRIBUTOR, BEFORE NO. 8358004 (GAS ENGINE ONLY)

Запчасти Case IH 960 (264) - F84107 DISTRIBUTOR, BEFORE NO. 8358004 (GAS ENGINE ONLY) (55) - ELECTRICAL SYSTEMS

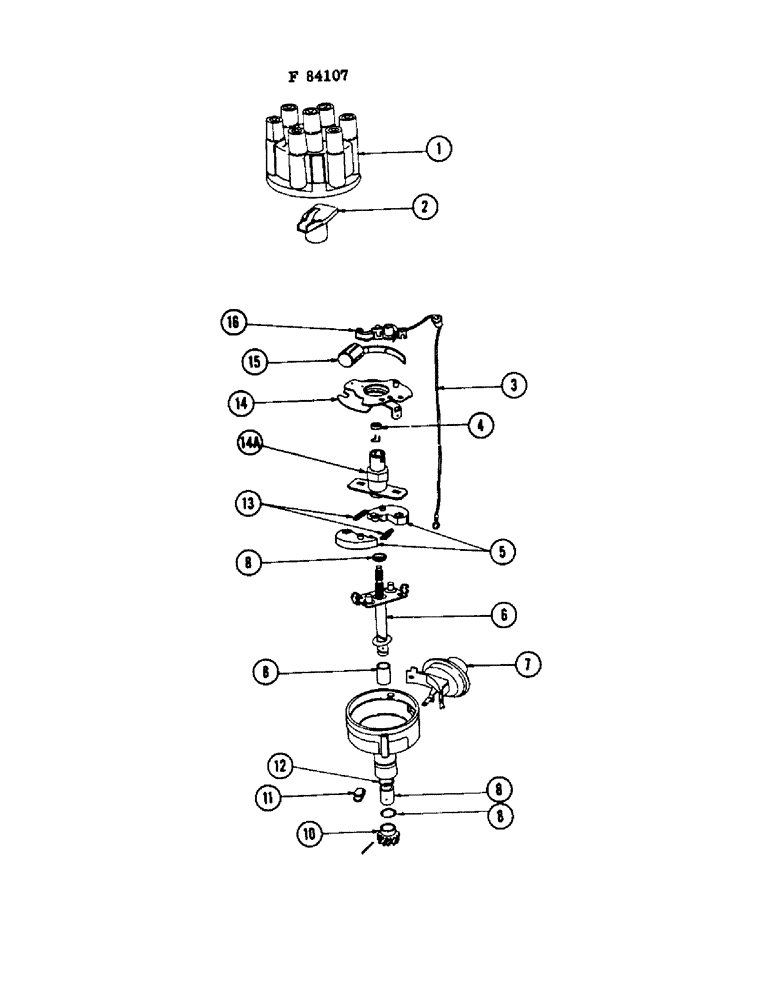

Схема запчастей Case IH 960 - (264) - F84107 DISTRIBUTOR, BEFORE NO. 8358004 (GAS ENGINE ONLY) (55) - ELECTRICAL SYSTEMS
8
4
5
12
6
14a
3
16
8
1
14
8
10
13
7
11
15
2
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F20556

CAP - distributor

1шт.

2

F20515

X

ROTOR

1шт.

3

F20512

CABLE -, Serial Range: coil-distributor

1шт.

4

F83006

DISC - cam sleeve, with snap ring

1шт.

5

F83004

WEIGHT - governor (Set of two)

1шт.

6

F20513

SHAFT - governor and cam drive

1шт.

7

F83583

CONTROL - vacuum

1шт.

8

F83001

KIT - shaft (Consists of upper bearing, lower bearing, upper thrust washer and lower thrust washer)

1шт.

10

F83008

GEAR - distributor drive, with pin

1шт.

11

F19779

SPRING - attaching, distributor cap

2шт.

12

F19775

RETAINER - oil, Serial Range: distributor-block

1шт.

13

F83582

SPRING - governor weight (Set of 2)

1шт.

14

F20509

PLATE - distributor breaker

1шт.

14a

F20514

PLATE - cam and stop

1шт.

15

F20511

CONDENSER

1шт.

16

F20510

BREAKER

CONTACT - breaker

1шт.
