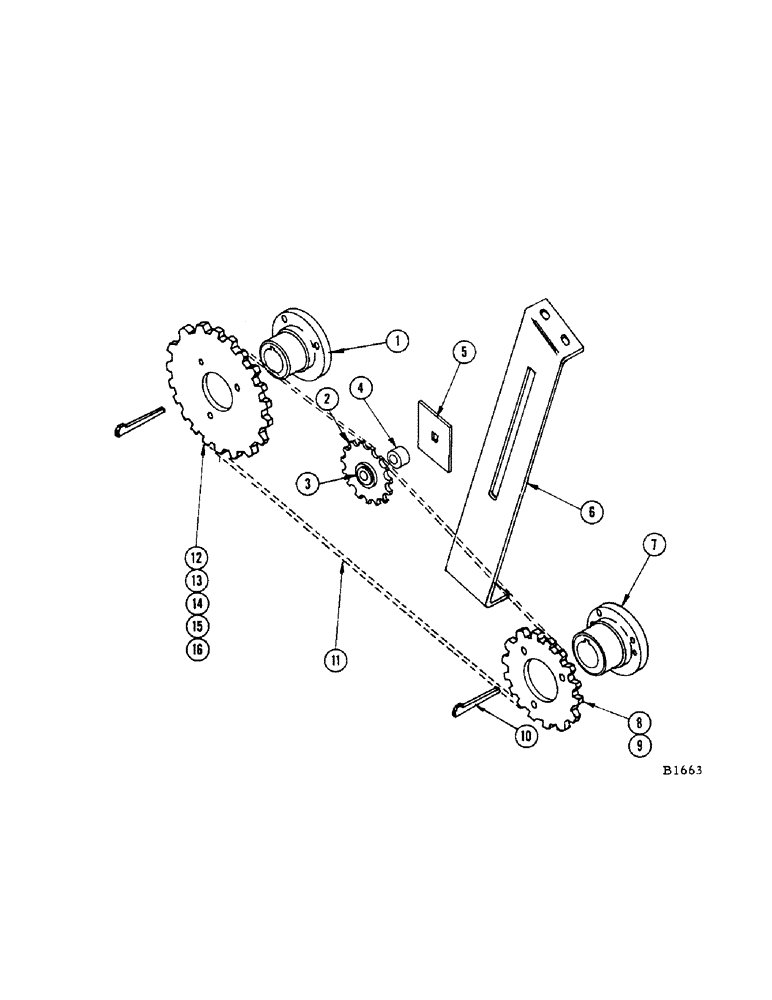

Запчасти Case IH 960 (090) - CHAIN CYLINDER DRIVE AND TIGHTENER (66) - THRESHING

1

F3406

HUB

- cylinder drive (Beater shaft)

1шт.

2

F83982

SPROCKET ASSY.

SPROCKET - idler

1шт.

3

F7293

BEARING

1шт.

BOLT - 5/8" x 2-1/2" N.C. rhd. sq. nk. (11-1040) and Nut (25-1010) L.W. (92-10) fl. wshr. (95-10)

1шт.

4

V13384

SPACER - idler sprocket

1шт.

5

F21062

REINFORCEMENT - idler sprocket

1шт.

6

F15953

BRACKET - idler, chain cylinder drive

1шт.

BOLT - 5/16" x 3/4" N.F. (14-512) Nut (25-115) L.W. (92-5)

3шт.

BOLT - 5/16" x 7/8" N.F. (14-514) Nut (25-115) L.W. (92-5)

1шт.

7

F3406

HUB

- chain cylinder drive only

1шт.

8

F8974

SPROCKET ASSY.

SPROCKET - (24T) cylinder drive, driven (Standard)

1шт.

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.F. hex., nut and lockwasher

3шт.

9

O8382HT1

SPROCKET - (21T) Cylinder drive, driven (Standard)

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) Nut (25-116) and L.W. (92-6)

3шт.

10

O30388HT

KEY

- cylinder drive hub

1шт.

11

F18520

X

CHAIN - cylinder drive

1шт.

F16252

X

LINKS - extension, cylinder chain (Not shown)

2шт.

12

F8978

SPROCKET - (33T) Cylinder drive (Standard)

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) Nut (25-116) and L.W. (92-6)

3шт.

13

F16253

SPROCKET - (38T) Cylinder drive (Standard)

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) Nut (25-116) and L.W. (92-6)

3шт.

14

F18085

SPROCKET - (52T) Cylinder drive (Slow cylinder speed - bean special)

1шт.

BOLT - 5/16" x 1-1/2" N.C. rhd. sq. nk. (117-107) and Nut (129-102) L.W. (192-20)

3шт.

15

F18086

SPROCKET - (48T) Cylinder drive (Slow cylinder speed - bean special)

1шт.

BOLT - 5/16" x 1-1/2" N.C. rhd. sq. nk. (117-107) and Nut (129-102) L.W. (192-20)

3шт.

16

F18087

SPROCKET - (44T) Cylinder drive (Slow cylinder speed - bean special)

1шт.

BOLT - 5/16" x 1-1/2" N.C. rhd. sql nk. (117-107) and Nut (129-102) L.W. (192-20)

3шт.

F82610

SPROCKET - (17T and hub) Cylinder drive (Slow cylinder speed - special) See page 86, ref. 4

1шт.
