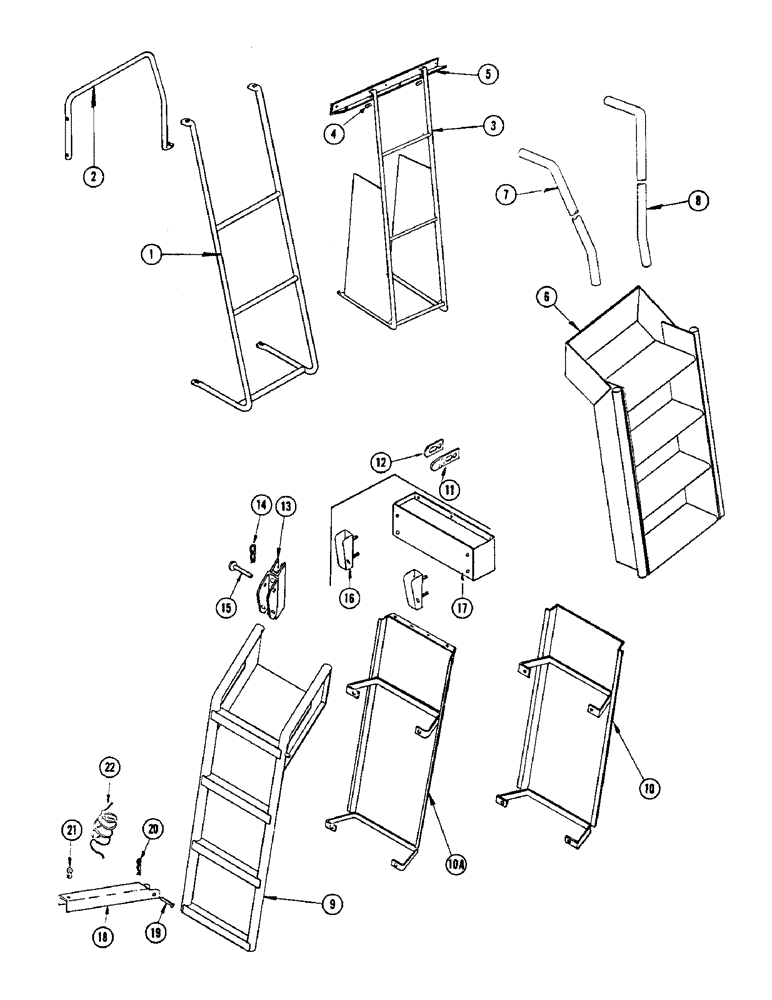

Запчасти Case IH 960 (194) - REAR LADDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

F91841

LADDER - rear (All grain combines) (960 special w/o cab)

1шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex., nut and L.W.

4шт.

2

F20941

HANDRAIL - rear ladder (Before #8311400)

1шт.

F21821

CARRIAGE BOLT

HANDRAIL - rear ladder (#8311400 and after)

1шт.

14-420

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1 1/4", G5

2шт.

3

F91842

LADDER - rear (960 special with cab)

1шт.

4

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

2шт.

5

F21947

SUPPORT - angle

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Nut and L.W. Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

6

F82807

LADDER - front stationary (960 special w/o cab)

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut and L.W., front stationary ladder Hex, 5/16"-24 x 3/4", G5, Full Thd

6шт.

7

F21877

CARRIAGE BOLT

HANDRAIL - front stationary ladder

1шт.

8

F19398

HANDRAIL - rear, front stationary ladder

1шт.

14-424

SCREW,Hex, 1/4" - 28 x 1 1/2", Gr 5

BOLT - 1/4" x 1-1/2" N.F. hex., nut and L.W., front stationary ladder

4шт.

14-632

BOLT,Hex, 3/8" - 24 x 2", Gr 5

- 3/8" x 2" N.F. hex., nut and L.W., front stationary ladder

2шт.

9

F83170

LADDER - front folding

1шт.

10

F83168

SHIELD - back (Before #8311400), front folding ladder

1шт.

10a

F87672

SHIELD - back (#8311400 and after), front folding ladder

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut and L.W., Front folding ladder Hex, 3/8"-24 x 3/4", G5, Full Thd

4шт.

11

F20039

LOCK, front folding ladder

1шт.

12

F20504

PLATE - lock, front folding ladder

1шт.

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4" x 3/4" rhd. sq. nk., front folding ladder

1шт.

129-404

WING NUT,1/4"-20

NUT - 1/4" wing, front folding ladder

1шт.

193-28

LOCK WASHER,Int Tooth, 1/4"

LOCKWASHER - 1/4" Shakeproof, front folding ladder

1шт.

13

F83164

YOKE - pivot (w/o cab), front folding ladder

2шт.

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

BOLT - 3/8" x 7/8" N.F. hex., nut and L.W., front folding ladder

2шт.

195-25

WASHER,3/8"

- flat, front folding ladder 3/8"

4шт.

14

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), , Front folding ladder Int, 3/16 x .080"

2шт.

15

F17898

PIN - pivot yoke, front folding ladder

2шт.

16

F84186

YOKE - pivot (With cab), front folding ladder

2шт.

17

F84682

EXTENSION - ladder (With cab), front folding ladder

1шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Nut and L.W. front folding ladder

6шт.

18

F21368

CHANNEL - ladder lift attachment

1шт.

19

F62238

PIN - drilled ladder lift attachment

1шт.

20

136-154

HAIR PIN COTTER,Int, 7/64" x .072"

COTTER - hairpin, ladder lift attachment

1шт.

21

F62224

"S" HOOK, ladder lift attachment

1шт.

22

ROPE - 1/4" x 134" sash cord, ladder lift attachment

1шт.
