(206[1]) - REAR VIEW MIRROR

Запчасти Case IH 960 (206[1]) - REAR VIEW MIRROR (90) - PLATFORM, CAB, BODYWORK AND DECALS

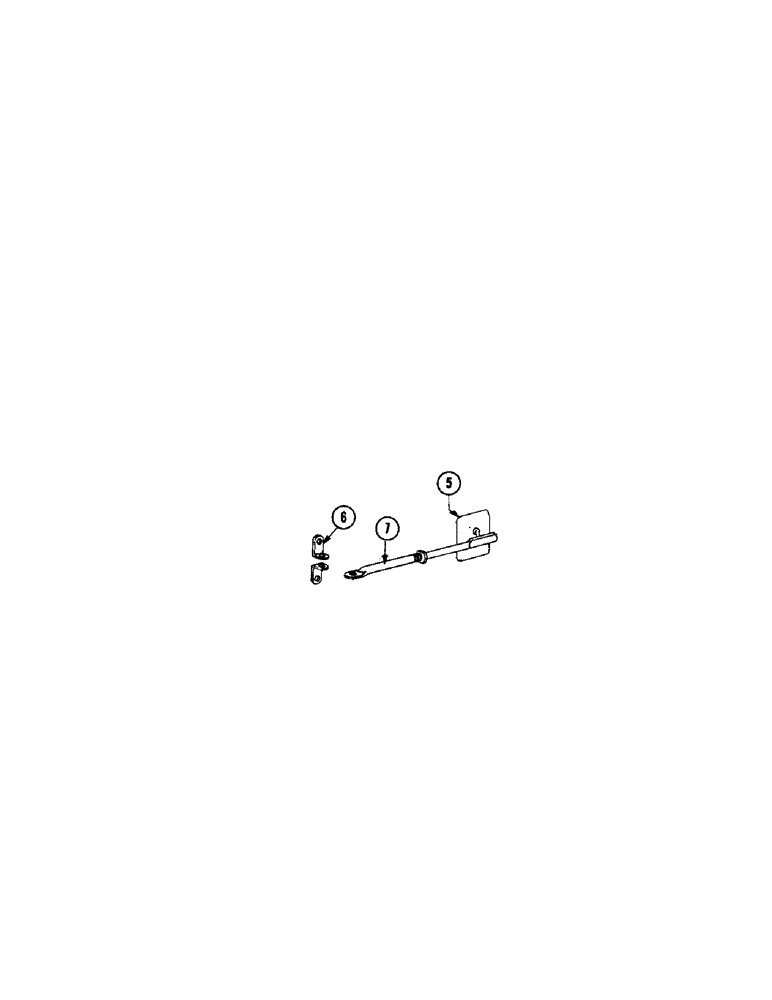

Схема запчастей Case IH 960 - (206[1]) - REAR VIEW MIRROR (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
7
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

5

F87186

HEAD - mirror

1шт.

6

F87188

BRACKET - mounting (Set of two)

1шт.

114-8

BOLT,Hex, 1/4" - 28 x 1-3/4", Gr 5

2шт.

195-102

WASHER,1/4"

- flat 1/4"

2шт.

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

LOCKWASHER - 1/4" Shakeproof

4шт.

129-121

NUT,1/4"-28, G5

2шт.

7

F87187

ARM - extension

1шт.
