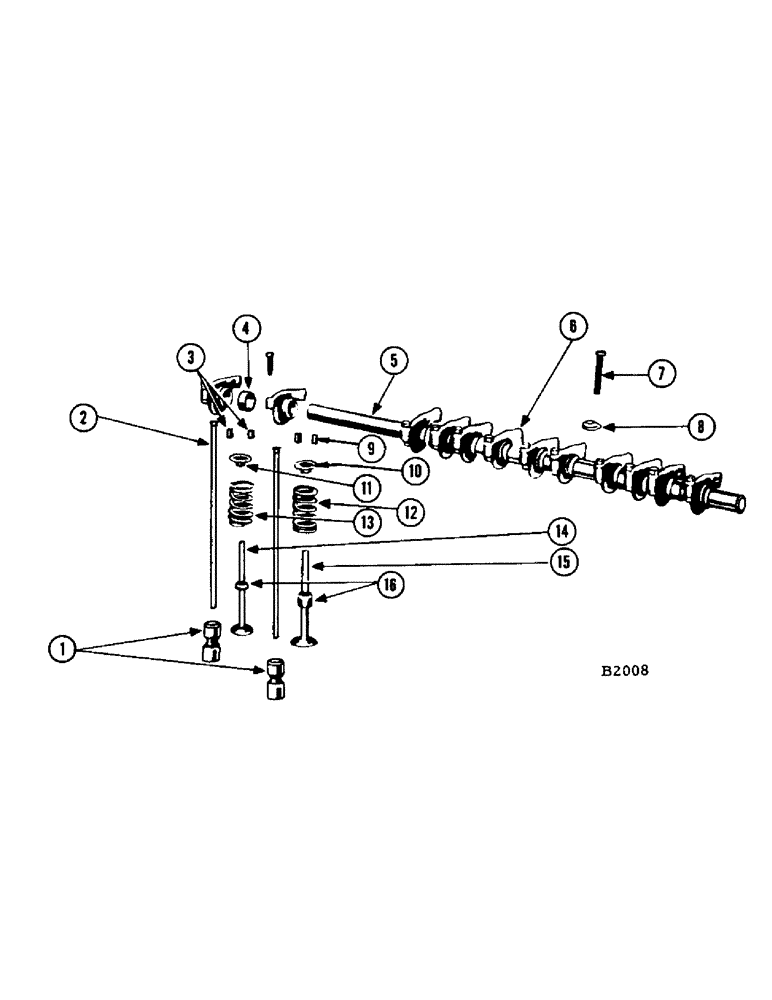

Запчасти Case IH 960 (220) - PUSHRODS, ROCKERARMS AND VALVES (10) - ENGINE

1

F1625

TAPPET - valve (Standard) Use F82991

12шт.

F1627

TAPPET - valve (.008" oversize)

12шт.

F1628

TAPPET - valve (.030" oversize)

12шт.

F82991

TAPPET - with body and insert (Standard)

12шт.

F82992

TAPPET - with body and insert (.001" oversize)

12шт.

2

F82993

ROD

- push, with tube and inserts

12шт.

3

F19757

LOCK

- intake valve spring retainer (Gasoline engine)

12шт.

F19757

LOCK

- intake valve spring retainer (L.P. engine)

6шт.

4

F19761

SPACER

- rocker arm

6шт.

5

F82995

SHAFT - valve rocker arm

1шт.

F19765

PLUG - rocker arm shaft (Not shown)

2шт.

6

F82994

ROCKER ARM

12шт.

7

F19760

SCREW

- adjusting

12шт.

8

F19763

RETAINER

- shaft ends and intermediate

6шт.

F19764

RETAINER - shaft center

1шт.

9

F19758

LOCK

- exhaust valve spring retainer (L.P. engine)

6шт.

10

F83470

RETAINER

- exhaust spring (Gasoline engine)

6шт.

11

F19756

RETAINER

- intake spring (Gasoline engine)

6шт.

F19756

RETAINER

- spring (L.P. engine)

12шт.

12

F20410

SPRING

- exhaust valve (Gas engine) Replaced by F21834 when stock exhausted

6шт.

13

F20409

SPRING - intake valve (Gas engine) Replaced by F21834 when stock exhausted

6шт.

F21834

BOLT

SPRING - intake and exhaust valve (L.P. engine) Replaces F20409 and F20410 when exhausted

12шт.

14

F19745

VALVE - intake (Standard)

6шт.

F19746

VALVE - intake (.005" oversize)

1шт.

F19747

VALVE - intake (.015" oversize)

1шт.

F19748

VALVE - intake (.030" oversize)

1шт.

15

F20411

VALVE - exhaust (Std.) (Gasoline engine) Replaced by F21830 when stocks are exhausted

6шт.

F21830

VALVE

- exhaust (Std.) (L.P. engine) Replaces F20411 when stocks are exhausted

6шт.

F20518

VALVE - exhaust (.005" oversize) (Gasoline engine) Replaced by F21831 when stocks are exhausted

1шт.

F21831

BOLT

VALVE - exhaust (.005" oversize) (L.P. engine) Replaces F20518 when stocks are exhausted

1шт.

F20519

VALVE - exhaust (.015" oversize) (Gasoline engine) Replaced by F21832 when stocks are exhausted

1шт.

F21832

CARRIAGE BOLT

VALVE - exhaust (.015" oversize) (L.P. engine) Replaces F20519 when stocks are exhausted

1шт.

F20544

VALVE - exhaust (.030" oversize) (Gasoline engine) Replaced by F21833 when stocks are exhausted

1шт.

F21833

VALVE - exhaust (.030" oversize) (L.P. engine) Replaces F20544 when stocks are exhausted

1шт.

16

F20413

SHIELD

- oil, intake valve stem

6шт.

F20414

SHIELD

- oil, exhaust valve stem

6шт.

F82990

KIT - gasket, valve grind (Includes F19688, F19689, F19690 and F19692)

1шт.
