(232) - OIL BATH TYPE AIR CLEANER

Запчасти Case IH 960 (232) - OIL BATH TYPE AIR CLEANER (10) - ENGINE

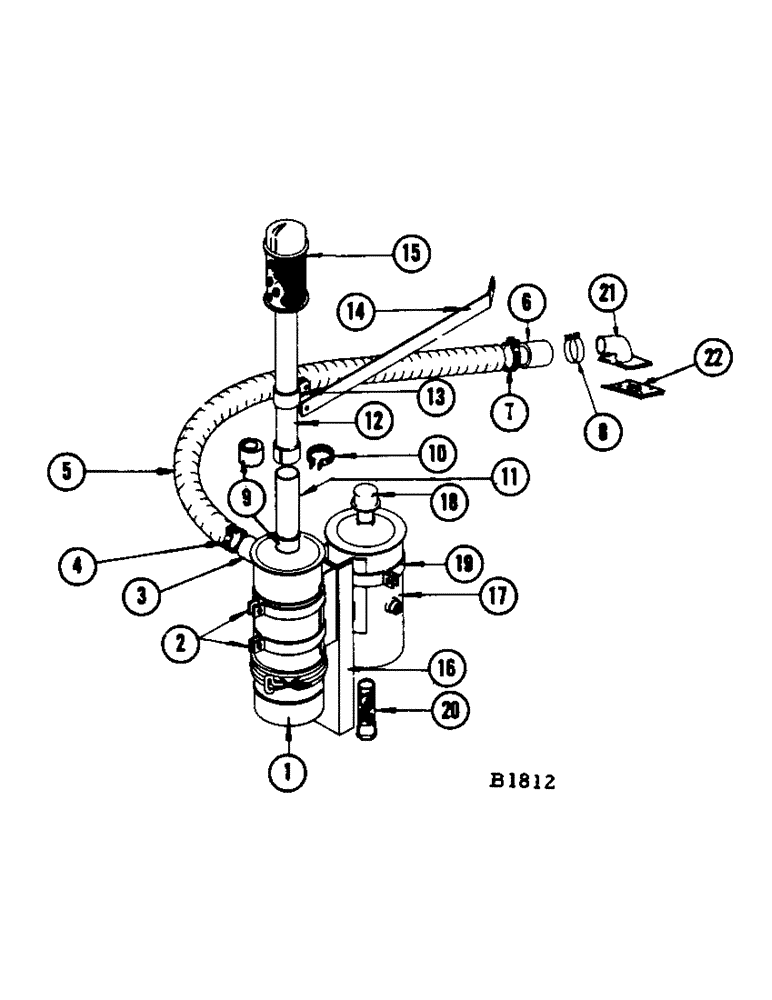

Схема запчастей Case IH 960 - (232) - OIL BATH TYPE AIR CLEANER (10) - ENGINE
16
8
13
11
18
5
21
2
20
1
9
14
19
12
15
22
10
17
7
4
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

G45473

AIR CLEANER

1шт.

2

F18725

STRAP - support

2шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex., nut and L.W.

2шт.

3

F18696

HOSE - lower

1шт.

4

214-33

CLAMP

- hose

2шт.

5

F18695

TUBE

1шт.

6

F18694

HOSE - upper

1шт.

7

214-33

CLAMP

- hose

1шт.

8

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

1шт.

9

F11510

HOSE

2шт.

10

214-34

X

CLAMP - hose

3шт.

214-33

CLAMP

- hose

1шт.

11

F18724

TUBE

1шт.

12

F11511

TUBE - extension

1шт.

13

F19262

CLAMP - extension brace

1шт.

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

Nut and L.W. Hex, 5/16"-24 x 7/8", G5, Full Thd

1шт.

14

F18692

BRACE - extension tube

1шт.

15

A22301

PRESCREENER

PRE-SCREENER - (Regular)

1шт.

F83641

CLEANER

PRE-SCREENER - (Special)

1шт.

16

F81754

PLATE - air cleaner and reservoir support

1шт.

14-420

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1 1/4", G5

2шт.

17

F83852

RESERVOIR - hydraulic oil

1шт.

18

F82075

GAUGE - oil level

1шт.

19

F17217

SCREW

STRAP - reservoir support

1шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex., nut and L.W.

1шт.

20

F81630

SCREEN - hydraulic reservoir

1шт.

21

F1580

ELBOW - carburetor to air cleaner tube

1шт.

22

F18630

GASKET - carburetor elbow

1шт.
