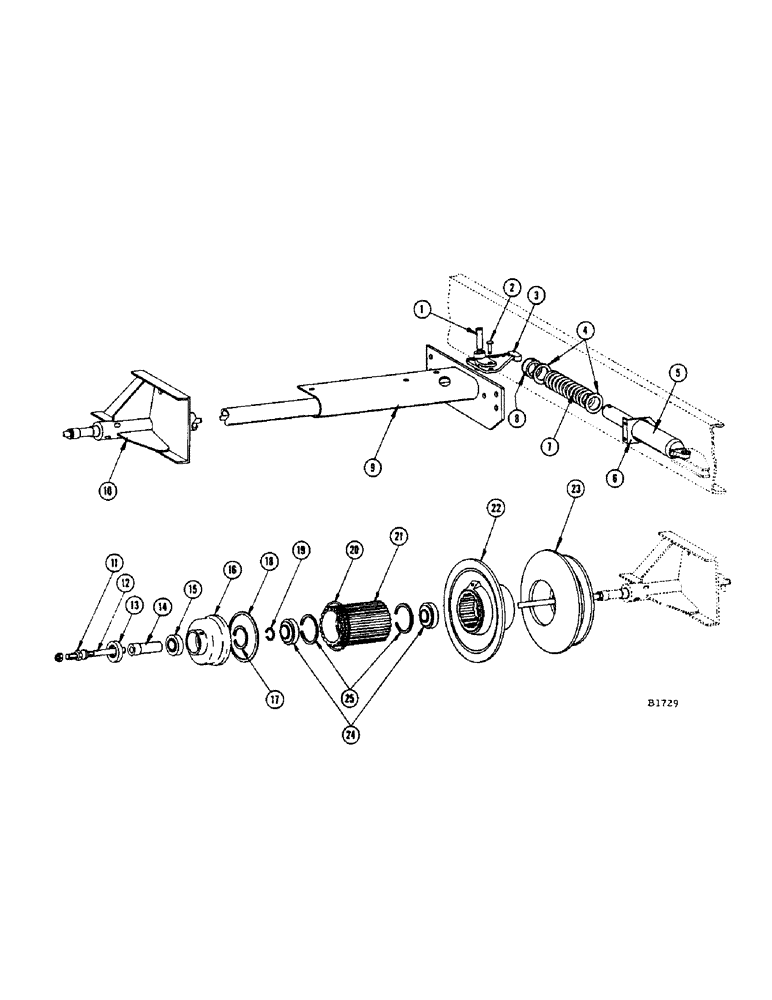

Запчасти Case IH 960 (284) - VARIABLE SPEED TRACTION DRIVE ADJUSTMENT (16) - TRACTION VARIATOR

1

F17580

SPACER,5/8" Tube x 2 1/8"

- bellcrank

1шт.

2

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - variable speed adjusting rod

1шт.

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

1шт.

3

F1720

CRANK

BELLCRANK - traction drive rod adj. (Replaces F1644 when stocks are exhausted)

1шт.

F1644

CRANK

BELLCRANK - traction drive rod adj. (Repalced by F1720)

1шт.

BOLT - 3/8" x 3" N.F. hex. (14-648) Nut (25-116) L.W. (92-6)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

1шт.

4

B18268

WASHER - cylinder

2шт.

5

F76962

CYLINDER - variable speed control

1шт.

BOLT - 1/2" x 1-3/4" N.F. hex. (14-828) Nut (25-118)

1шт.

LOCKWASHER - 1/2" (92-8)

1шт.

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER

1шт.

6

F17579

BRACKET - support, for cylinder

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) Nut (25-115)

2шт.

7

V14852

WASHER

SPRING - cylinder

1шт.

8

F17925

COLLAR - spring retainer

1шт.

135-123

PIN - groove 1/2" x 2"

1шт.

9

F83308

SUPPORT - housing, R.H. end

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) Nut (25-116) L.W. (92-6)

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) Nut (25-115)

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) Nut (25-115)

2шт.

10

F81325

HOUSING - jackshaft (Includes jackshaft)

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) Nut (25-116) L.W. (92-6)

3шт.

BOLT - 1/4" x 3/4" N.F. hex. (14-412) Nut (25-114) L.W. (92-4)

1шт.

BOLT - 5/16" x 3" N.F. hex. (14-548) Nut (25-115) L.W. (92-4)

2шт.

11

F9474

NUT - adjusting, tension rod, variable speed traction drive sheaves

1шт.

12

F16955

ROD - tension, variable speed traction drive sheaves

1шт.

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex., variable speed traction drive sheaves

1шт.

13

F10921

OIL SEAL

SEAL - for F8890 bearing, variable speed traction drive sheaves

1шт.

14

F7862

PLUG - bearing, variable speed traction drive sheaves

1шт.

15

F8890

BEARING, BALL

BEARING - adjusting rod, variable speed traction drive sheaves

1шт.

16

F79236

CARRIER - bearing, variable speed traction drive sheaves

1шт.

17

A30091

RING, SNAP

SNAP RING, variable speed traction drive sheaves

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Variable speed traction drive sheaves 1/4"-28 NPT x .54" lg

1шт.

18

F12233

GASKET

- bearing carrier, variable speed traction drive sheaves

1шт.

19

A21619

CIRCLIP

SNAP RING - retaining F8890 bearing, variable speed traction drive sheaves

1шт.

20

F10063

STOP - variable speed traction drive sheaves

1шт.

21

F1293

HUB

- variable speed sheave, variable speed traction drive sheaves

1шт.

22

F94336

SHEAVE

- (Balanced assemblies), variable speed traction drive sheaves

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Variable speed traction drive sheaves 1/4"-28 NPT x .54" lg

1шт.

23

F1452

SHEAVE-HALF - stationary (Before #8358001), variable speed traction drive sheaves

1шт.

BOLT - 3/8" x 1" N.C. hex. (13-616 L.W. (92-6), variable speed traction drive sheaves

6шт.

F1681

SHEAVE-HALF - stationary (Special - slow ground speed attachment) Befre #8358001, variable speed traction drive sheaves

1шт.

F1681

SHEAVE-HALF - stationary (#8358001 and after), variable speed traction drive sheaves

1шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) L.W. (92-6), variable speed traction drive sheaves

6шт.

24

F10753

BEARING

- variable speed traction drive sheaves

2шт.

25

B18276

RING, SNAP

SNAP RING - retaining F10753 bearing, variable speed traction drive sheaves

2шт.

F20032

V-BELT

Secondary Variable Speed Traction Drive, Secondary, Not Shown, Variable Speed Sheaves

1шт.
