(12) - 21, 3023 MOTOR, HYDROSTATIC

Запчасти Case IH 960 (12) - 21, 3023 MOTOR, HYDROSTATIC (29) - HYDROSTATIC DRIVE

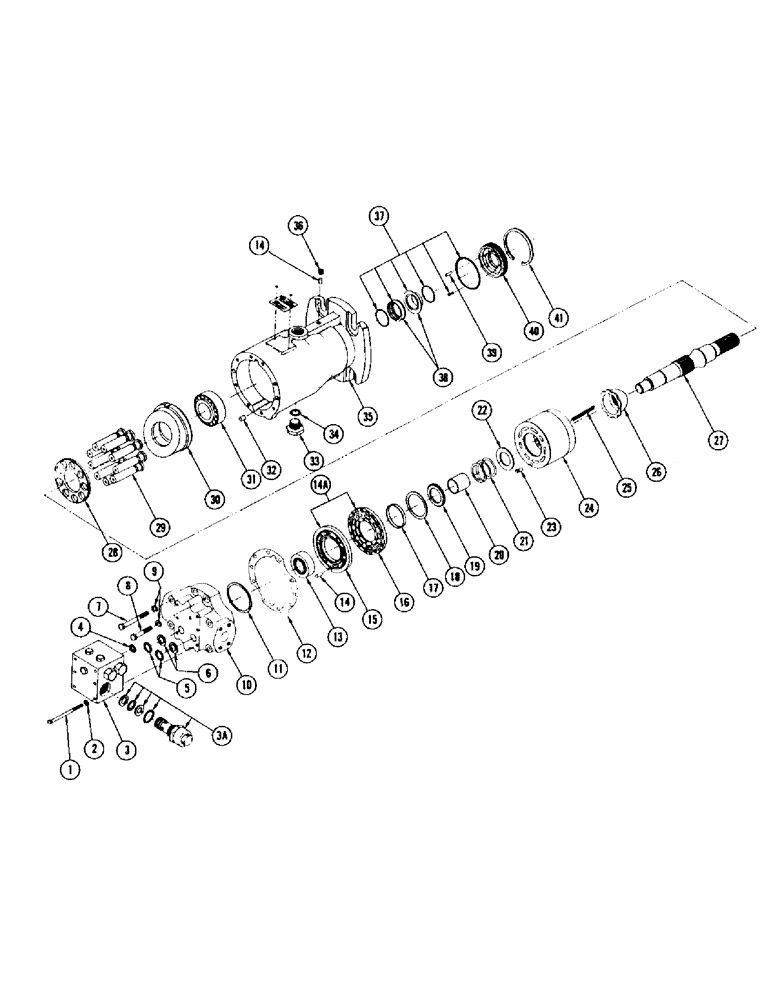

Схема запчастей Case IH 960 - (12) - 21, 3023 MOTOR, HYDROSTATIC (29) - HYDROSTATIC DRIVE
38
1
27
9
10
21
37
41
29
40
5
17
31
3a
14a
25
14
22
3
34
24
36
26
20
12
6
33
18
8
39
28
16
11
35
2
4
15
23
32
30
13
7
19
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

13-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

SCREW - hex. hd.

6шт.

2

F23187

WASHER

6шт.

3

F89261

MANIFOLD

1шт.

NSS

NOT SOLD SEPARAT

HOUSING - manifold

1шт.

3a

F89262

LOCK VALVE

VALVE - manifold

2шт.

4

R15366

O-RING,7/8" ID x 1" OD x 1/16"

"O" RING

1шт.

5

F23189

O-RING

"O" RING

2шт.

6

F23190

O-RING

RING - back-up

2шт.

7

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW - hex. hd.

5шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

9

F23114

WASHER

- end cap

8шт.

10

F23191

CAP - end

1шт.

11

F23192

SHIM

- end cap

1шт.

12

F23193

HEADED PIN,3/4" x 4 11/16"

GASKET - end cap

1шт.

13

F23194

BEARING

- rear

1шт.

14

NLS

NO LONGER SERVICED

PIN - plate and housing

2шт.

14a

F89273

PLATE ASSY.

PLATE AND BEARING ASSEMBLY

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

16

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

17

F23197

WASHER

RING - pilot

1шт.

18

F23198

SEAL ASSY.

RING - retainer

1шт.

19

F23199

RETAINER

- spring

1шт.

20

F23200

GUIDE

- spring

1шт.

21

F23201

SCREW

SPRING - cylinder block

1шт.

22

F23202

SEAT

- spring

1шт.

23

F23203

PIN

- cylinder block

1шт.

24

F89263

BLOCK

- cylinder

1шт.

25

F23204

SPRING

- retainer

9шт.

26

F23205

GUIDE

- retainer

1шт.

27

F23206

SHAFT

- drive

1шт.

28

F23207

FLANGE

RETAINER - slipper

1шт.

29

F89264

PISTON

9шт.

30

F23208

PLATE

- swash

1шт.

31

F23209

SCREW

BEARING - front

1шт.

32

F23124

AXLE PIN

PIN - housing

2шт.

33

2185157

PLUG - drain

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Drain plug

1шт.

35

F23212

HOUSING - motor

1шт.

36

F23137

PLUG

- housing

1шт.

37

F89265

PACKAGE

KIT - seal repair

1шт.

38

F89258

SEAL

- motor

1шт.

39

F23157

AXLE PIN

PIN - groove

1шт.

40

F23159

RETAINER

- seal

1шт.

41

F23160

RING

- retainer

1шт.
