(006) - REEL, REEL CONVERSION KIT

Запчасти Case IH 460 (006) - REEL, REEL CONVERSION KIT (58) - ATTACHMENTS/HEADERS

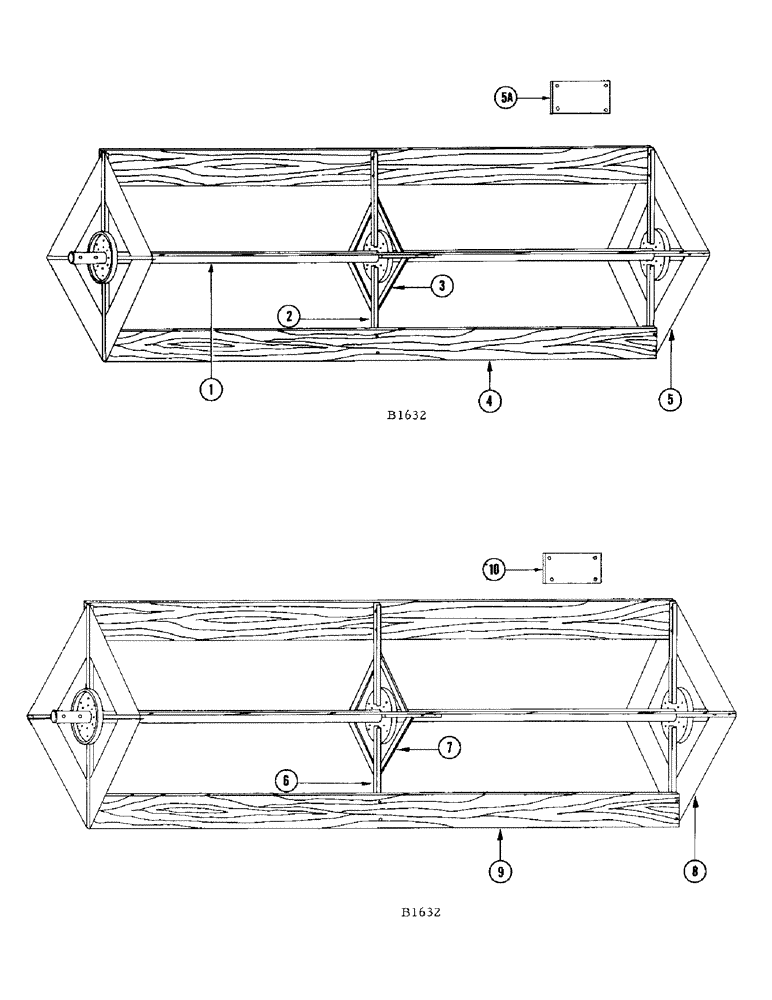

Схема запчастей Case IH 460 - (006) - REEL, REEL CONVERSION KIT (58) - ATTACHMENTS/HEADERS
10
4
5
6
3
5a
2
9
8
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F82589

SHAFT - with hubs (10 ft. header)

1шт.

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

3шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

; Nut (129-101) L.W. (192-19) Hex, 1/4"-20 x 1/2", G5, Full Thd

24шт.

F85866

SHAFT - with hubs (12 ft. header)

1шт.

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

BOLT - 1/4" x 1/2" N.C. hex; nut (129-101) L.W. (192-19)

24шт.

2

F9236

ARM

12шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

; Nut (129-101) L.W. (192-19) Hex, 1/4"-20 x 1/2", G5, Full Thd

32шт.

3

F9237

STRAP - tie

4шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

; Nut (129-101) L.W. (192-19) Hex, 1/4"-20 x 1/2", G5, Full Thd

4шт.

4

F4327

BAT - (10 ft. header)

4шт.

111-111

CARRIAGE BOLT,Short NK, 1/4"-20 x 1", G2

BOLT, CARRIAGE, ; Nut (129-101) L.W. (192-19) Short NK, 1/4"-20 x 1", G2

8шт.

F4507

BAT - (12 ft. header)

4шт.

111-111

CARRIAGE BOLT,Short NK, 1/4"-20 x 1", G2

BOLT, CARRIAGE, ; Nut (129-101) L.W. (192-19) Short NK, 1/4"-20 x 1", G2

8шт.

5

F9238

SECTION - end

8шт.

111-111

CARRIAGE BOLT,Short NK, 1/4"-20 x 1", G2

BOLT, CARRIAGE, ; Nut (129-101) L.W. (192-19) Short NK, 1/4"-20 x 1", G2

16шт.

5a

F14906

REINFORCEMENT - reel bat

8шт.

6

F9236

ARM

reel conversion kit

6шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

; Nut (129-101) L.W. (192-19), Reel conversion kit Hex, 1/4"-20 x 1/2", G5, Full Thd

12шт.

7

F9239

STRAP - tie, reel conversion kit

6шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

; Nut (129-101) L.W. (192-19), Reel conversion kit Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

8

F8463

SECTION - end, reel conversion kit

12шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

; Nut (129-101) L.W. (192-19), Reel conversion kit Hex, 1/4"-20 x 1/2", G5, Full Thd

16шт.

9

F4327

BAT - (10 ft. header), reel conversion kit

2шт.

111-111

CARRIAGE BOLT,Short NK, 1/4"-20 x 1", G2

BOLT, CARRIAGE, ; Nut (129-101) L.W. (192-19), reel conversion kit Short NK, 1/4"-20 x 1", G2

12шт.

F4507

BAT - (12 ft. header), reel conversion kit

2шт.

111-111

CARRIAGE BOLT,Short NK, 1/4"-20 x 1", G2

BOLT, CARRIAGE, ; Nut (129-101) L.W. (192-19), reel conversion kit Short NK, 1/4"-20 x 1", G2

12шт.

10

F14906

REINFORCEMENT - reel bat, reel conversion kit

4шт.
