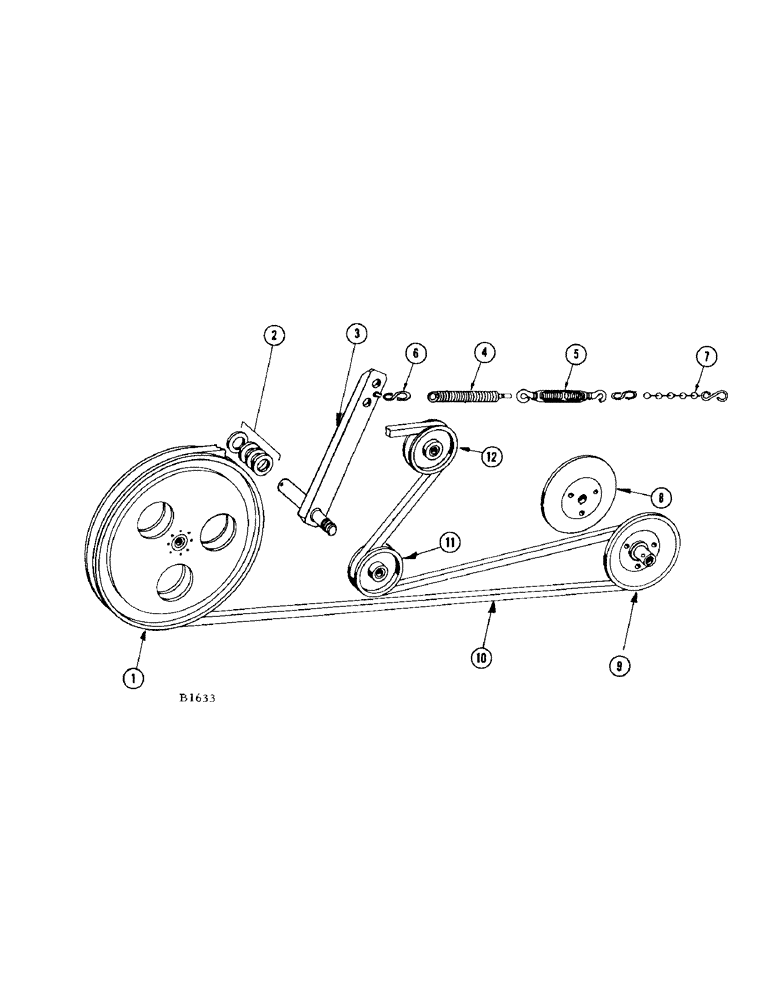

Запчасти Case IH 460 (009A[1]) - REEL DRIVE (58) - ATTACHMENTS/HEADERS

1

F82542

SHEAVE

- drive, reel

1шт.

114-414

BOLT,Hex, 1/2" - 20 x 2-3/4", Gr 5

Hex, 1/2"-20 x 2 3/4", G5, Dbl. jam nut (129-165), reel drive

1шт.

2

B18275

WASHER

reel drive

4шт.

3

F83160

BRACKET - idler, reel drive

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Nut (25-1110), reel drive 5/8"

1шт.

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), , Reel drive 3/16" x 1 3/4"

1шт.

4

O1158FS1

SPRING, reel drive

1шт.

5

F10915

TURNBUCKLE, reel drive

1шт.

6

F20641

"S" HOOK, reel drive

3шт.

7

F20640

CHAIN - idler, reel drive

1шт.

8

F1572

SHEAVE - half (8.66 O.D.), reel drive

1шт.

9

F1313

SHEAVE

- half (8.66 O.D.), reel drive

1шт.

10

F16633

BELT

Reel Drive

1шт.

11

F13064

SCREW

IDLER - (Replaces F11626 when stocks exhausted), reel drive

1шт.

F11626

BEARING

IDLER - (Replaced by F13064 when stocks exhausted), reel drive

1шт.

12

F6474

PULLEY

IDLER, reel drive

1шт.

14-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

- 5/8" x 2-1/2" N.F. hex.; nut (25-10) L.W. (92-10), reel drive

1шт.

195-41

WASHER,5/8"

Reel drive 5/8"

1шт.
