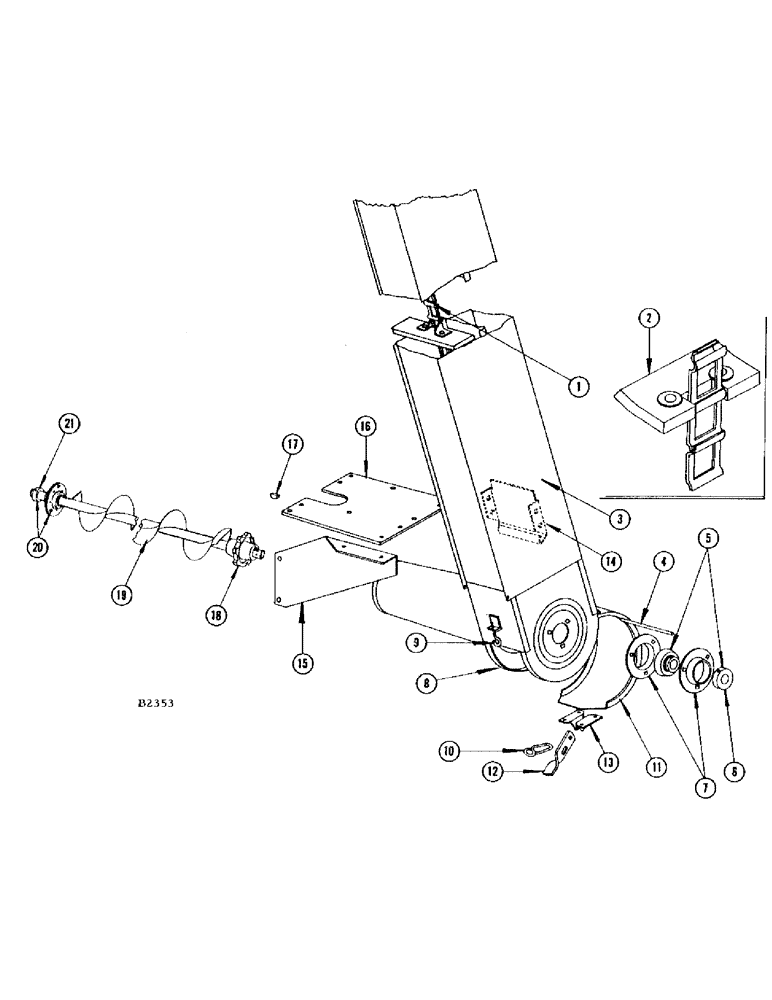

Запчасти Case IH 460 (074) - GRAIN ELEVATOR (80) - CROP STORAGE/UNLOADING

1

F89224

CHAIN AND FLIGHTS - (NSS - Use (2) F86419, (2) F86421 and (1) F86425 (#8361801 and after)

1шт.

F86419

CHAIN AND FLIGHTS - (Consists of chain with 2 flights)

2шт.

F86421

CHAIN AND FLIGHTS - (Consists of chain with 5 flights)

2шт.

F86425

CHAIN (CE)

CHAIN AND FLIGHTS - (Consists of chain with 20 flights)

1шт.

2

F79799

RUBBER FLIGHT

FLIGHT - (Rubber) elevator chain (Includes (1) F11165 flight, (1) 235-65 att. link, (2) #55 plain links and (2) 151-135 rivets)

34шт.

1

F85801

CHAIN AND FLIGHTS - (NSS - Use (2) F86419, (1) F86421 and (1) (1) F86425) (Before #8361801)

1шт.

F86419

CHAIN AND FLIGHTS - (Consists of chain with 2 flights)

2шт.

F86421

CHAIN AND FLIGHTS - (Consists of chain with 5 flights)

1шт.

F86425

CHAIN (CE)

CHAIN AND FLIGHTS - (Consists of chain with 20 flights)

1шт.

2

F79799

RUBBER FLIGHT

FLIGHT - (Rubber) elevator chain (Includes (1) F11165 flight, (1) 235-65 att. link, (2) #55 plain links and (2) 151-135 rivets)

29шт.

3

F85795

TUBE - grain elevator

1шт.

4

O309CS

PIN - hinge, lower head cover

1шт.

5

F94134

HOUSING ASSY.

BEARING

1шт.

6

F52076

COLLAR

1шт.

7

B18282

FLANGE

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

3шт.

8

F84944

KIT - lower head repair

1шт.

9

O315CS

HOOK - latch

1шт.

10

O316CS

SPRING - latch handle

1шт.

11

F81610

DOOR - lower head

1шт.

12

O313CS

HANDLE

1шт.

45-310

RIVET,But Hd, 3/16" x 5/8"

- 3/16" x 5/8" rhd.

1шт.

13

O314CS

BRACKET

2шт.

49-35

RIVET - 3/16" x 5/16" W.B. hd.

4шт.

14

F40600

EXTENSION - divider

1шт.

175-407

SCREW,Sl Truss Hd, 1/4" - 28 x 1/2"

- 1/4" x 1/2" N.F. truss hd.; nut (129-121)

13шт.

15

F41164

SUPPORT - lower

1шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, , Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 5/8", G5, Full Thd

3шт.

14-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5, Full Thd

- 5/16" x 3/4" N.F. hex.; nut (25-115) L.W. (92-5)

1шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, , Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 5/8", G5, Full Thd

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

17

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1шт.

18

51B

SPROCKET ASSY.

SPROCKET - (7T) elevator

1шт.

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

19

F85803

AUGER - grain

1шт.

20

F78749

COLLAR

BEARING - R.H.

1шт.

21

F52076

COLLAR

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

2шт.
