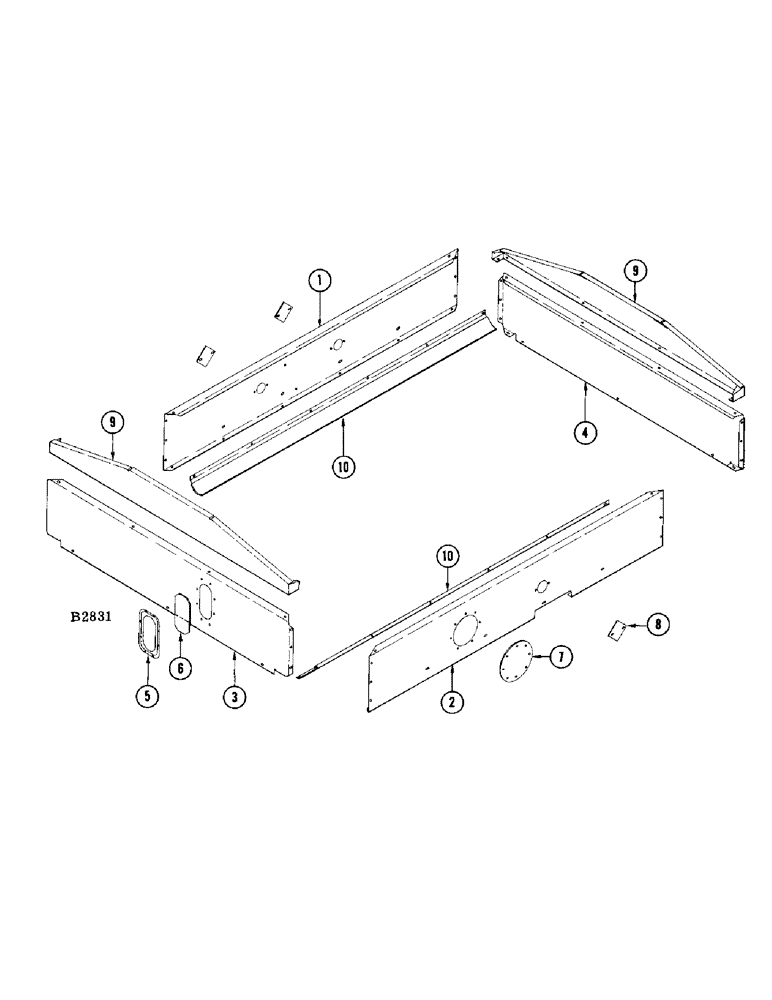

Запчасти Case IH 460 (079A) - GRAIN BIN EXTENSION (80) - CROP STORAGE/UNLOADING

1

F89209

END SHEET - R.H.

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

; Nut (25-114), L.W. (92-4) Hex, 1/4"-28 x 1/2", G5, Full Thd

4шт.

14-58

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5, Full Thd

- 5/16" x 1/2" N.F. hex.; nut (25-115) L.W. (92-5)

2шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, , Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 5/8", G5, Full Thd

6шт.

95-5

WASHER,3/8" x 7/8" x .083"

FLATWASHER - 5/16"

6шт.

2

F41846

END SHEET - L.H.

1шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, , Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 5/8", G5, Full Thd

6шт.

95-5

WASHER,3/8" x 7/8" x .083"

FLATWASHER - 5/16"

6шт.

14-58

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5, Full Thd

- 5/16" x 1/2" N.F. hex.; nut (25-115) L.W. (92-5)

2шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

; Nut (25-114), L.W. (92-4) Hex, 1/4"-28 x 1/2", G5, Full Thd

4шт.

3

F41844

SHEET - front

1шт.

14-58

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5, Full Thd

- 5/16" x 1/2" N.F. hex.; nut (25-115) L.W. (92-5)

13шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, , Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 5/8", G5, Full Thd

4шт.

4

F41845

SHEET - rear

1шт.

14-58

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5, Full Thd

- 5/16" x 1/2" N.F. hex.; nut (25-115) L.W. (92-5)

13шт.

5

F40627

FRAME - window

1шт.

173-257

SCREW,Phil Rnd Hd, #10 - 24 x 1/2"

- 1/2" x #10-24 mach.; nut (129-7) L.W. (92-3)

8шт.

6

F40628

WINDOW

1шт.

7

F20447

COVER

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

; Nut (25-114), L.W. (92-4) Hex, 1/4"-28 x 1/2", G5, Full Thd

7шт.

8

F41848

COVER

3шт.

14-58

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5, Full Thd

- 5/16" x 1/2" N.F. hex.; nut (25-115) L.W. (92-5)

6шт.

9

F89210

SHEET - front and rear, extension

2шт.

10

F89211

SEAL

2шт.
