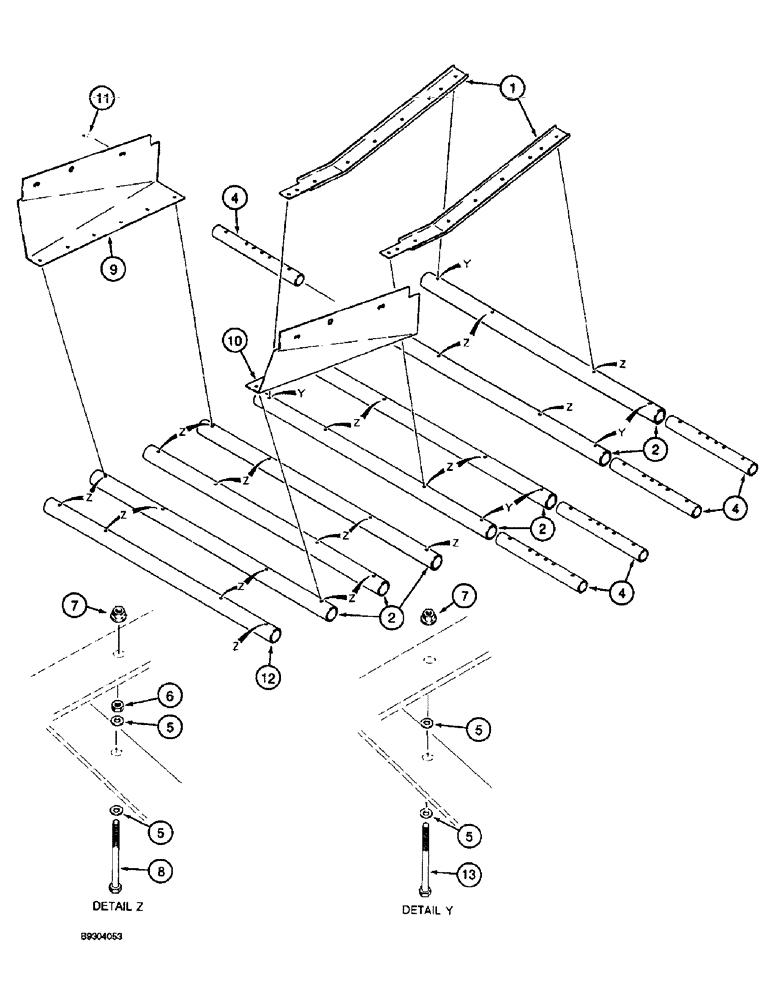

Запчасти Case IH 2055 (9F-15A) - PLANT GUARD - CHANNEL AND TUBES, 5 ROW 30 INCH, 90 INCH TIRE SPACING (12) - CHASSIS

1

1546141C2

SUPPORT

CHANNEL - plant guard, front

2шт.

2

123956A1

TUBE,62.71 mm ID, 73.03 mm OD

- plant guard, 2-1/2 (64) ID x 56 inch (1434 mm) long

7шт.

4

123957A1

TUBE,52.5 mm ID, 60.33 mm OD, 424 mm Length

- plant guard, extension

8шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

48шт.

6

425-106

NUT,3/8"-16, Cl 5

18шт.

7

231-5146

FLANGE NUT,3/8"-16

24шт.

8

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

18шт.

9

1546148C1

SUPPORT

- plant guard, left-side

1шт.

10

1546149C1

SUPPORT

- plant guard, right-side

1шт.

11

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

4шт.

12

1546145C1

TUBE,62.71 mm ID, 73.02 mm OD, 1160 mm Length

- plant guard, 2-1/2 (64) ID x 46 inch (1160 mm) long

1шт.

13

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch, if used

6шт.

13

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

if used Hex, 3/8"-16 x 3", G5

6шт.
