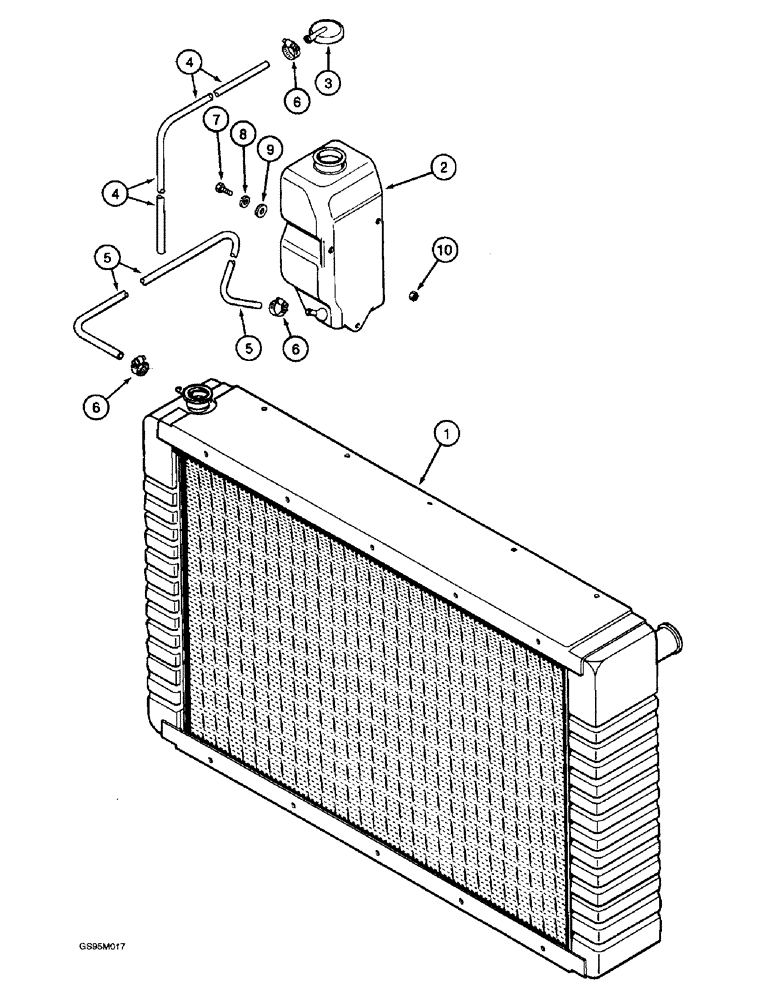

Запчасти Case IH 2055 (2-04) - COOLANT RECOVERY SYSTEM (01) - ENGINE

1

84578C3

RADIATOR

- engine cooling, see page 2-2

1шт.

2

437703C2

TANK

RESERVOIR - coolant recovery

1шт.

3

437702C1

CAP

- reservoir tank

1шт.

4

1345000C1

HOSE

- Reservoir, Cut From 87086C1 Bulk Hose Below, If Used

1шт.

5

1984055C1

HOSE,7.90 mm ID x 571.50 mm

RADIATOR HOSE, , Reservoir, Cut From 87086C1 Bulk Hose Below 7.90 mm ID x 571.50 mm

1шт.

6

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable, Worm drive #4, 0.25/0.62 Type M Worm

2-3шт.

7

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

3шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

9

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.

10

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

87086C1

RADIATOR HOSE,7.90 mm ID

HOSE, 7.90 mm ID

1шт.
