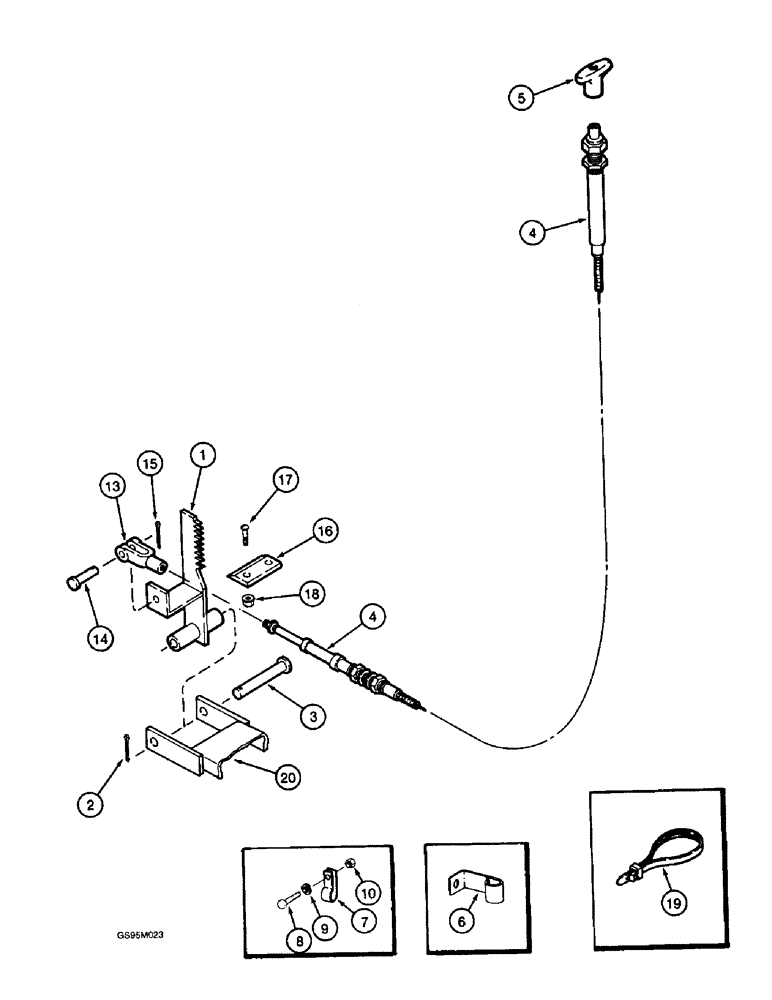

Запчасти Case IH 2055 (7-14) - PARKING BRAKE AND CONTROLS (5.1) - BRAKES

1

1277202C1

PLATE

SECTOR - parking brake

1шт.

2

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

3

631252R1

HEADED PIN,9.53mm OD x 104.78mm L

PIN - headed, 3/8 x 4-1/8 inch (Replaces pin PO15464)

1шт.

4

1982822C1

CABLE

ASSEMBLY - parking brake

1шт.

5

170273C1

HANDLE

- brake control cable

1шт.

6

370383R1

CLIP

CLAMP - brake cable, if used

1шт.

7

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- P-type, 1/4 inch ID, if used

1шт.

8

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch, if used

1шт.

9

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , If used 1/4"

1шт.

10

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, if used

1шт.

13

213-113

ADJUSTABLE CLEVIS,#10-32

CLEVIS - adjustable, No. 10 NF

1шт.

14

427-3103

CLEVIS PIN,4.78mm OD x 26.19mm L

PIN - clevis, 3/16 x 1-1/32 inch, hardened

1шт.

15

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

16

177802C1

BAR

- parking brake ratchet

1шт.

17

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

2шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

19

702093C1

CABLE TIE

STRAP - tie, if used

5шт.

20

REF

INSTRUCTION

ACTUATOR ASSEMBLY - brake, parts list page 7-10

1шт.
