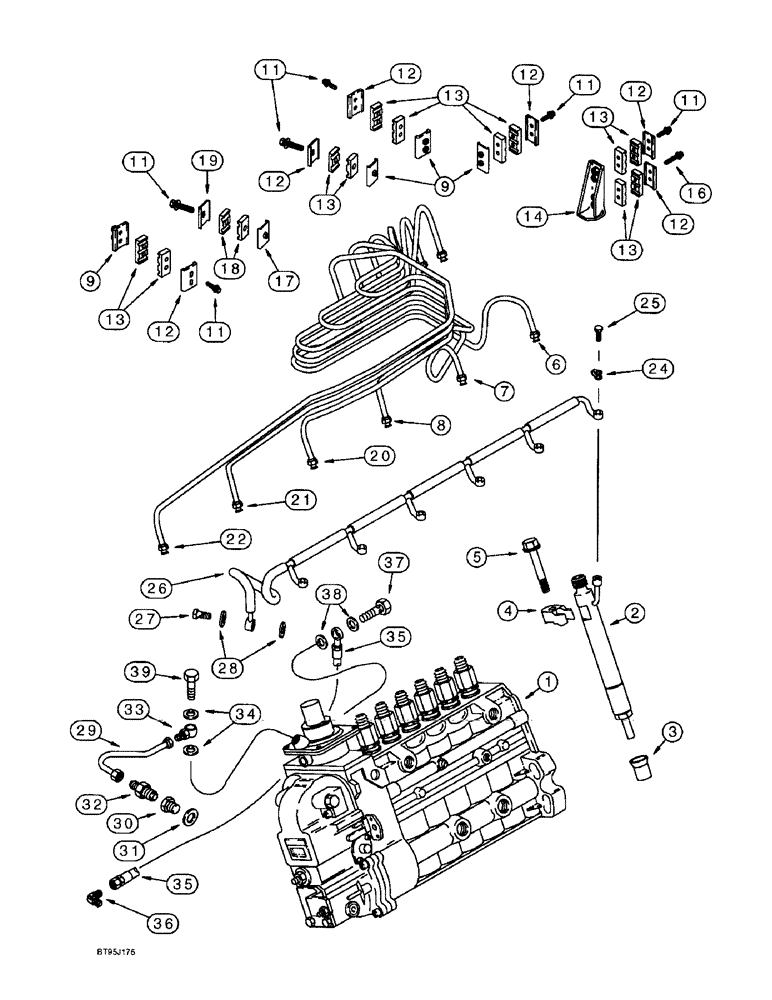

Запчасти Case IH 2055 (3-02) - FUEL INJECTION SYSTEM, 6TA-830 ENGINE (02) - FUEL SYSTEM

1

J911657

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, with aneroid, parts list page 3-6, no longer available, order J925549 pump assembly, item 1A

1шт.

1a

J925549

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, without aneroid, not shown, parts list page 3-6

1шт.

1a

JR925549

REMAN-INJECTION PUMP

1шт.

1a

JC925549

CORE-INJECTION PUMP

Return Number

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, parts list page 3-8

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector

6шт.

4

J910279

CLAMP

- fuel injector

6шт.

5

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 80 mm

6шт.

6

J918788

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE - fuel injector, No. 1 cylinder

1шт.

7

J920118

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE - fuel injector, No. 2 cylinder

1шт.

8

J920120

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE - fuel injector, No. 3 cylinder

1шт.

9

J917716

BRACE

BRACKET - fuel tube

3шт.

11

J920855

CAPTIVE WASHER SCREW

BOLT - hex, captive washer, special, 5 - 0.8 x 35 mm, replaces J917712 bolt and J903723 washer

10шт.

12

J904519

SUPPORT

BRACE - tube retaining

5шт.

13

J917747

CLAMP

- fuel tube

10шт.

14

J917776

BRACE

BRACKET - fuel tube

1шт.

16

J920855

CAPTIVE WASHER SCREW

BOLT - hex, captive washer, special, 5 - 0.8 x 35 mm, replaces J917713 bolt and J903723 washer

2шт.

17

J917717

BRACE

BRACKET - fuel tube

2шт.

18

J917746

CLAMP

- fuel tube

4шт.

19

J904711

SUPPORT

BRACKET - fuel tube

2шт.

20

J910752

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE - fuel injector, No. 4 cylinder

1шт.

21

J910753

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE - fuel injector, No. 5 cylinder

1шт.

22

J910754

FUEL TUBE

TUBE - fuel injector, No. 6 cylinder

1шт.

24

J903380

SEAL

- connector

6шт.

25

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

26

J920595

TUBE ASSY.

MANIFOLD - fuel drain

1шт.

27

J924726

BANJO BOLT

VALVE - check, replaces J916360 valve

1шт.

28

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

- sealing

2шт.

29

J917067

TUBE,4.76 mm OD x 142.5 mm L

- boost line

1шт.

30

J908110

PLUG

- threaded

1шт.

Items 30 - 39 are used with item 1, J911657 pump assembly with aneroid, see Figure 3-06.

1шт.

31

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug

1шт.

Items 30 - 39 are used with item 1, J911657 pump assembly with aneroid, see Figure 3-06.

1шт.

32

J909552

CONNECTION

ADAPTER - straight, 1/8 PT x 7/16 inch

1шт.

Items 30 - 39 are used with item 1, J911657 pump assembly with aneroid, see Figure 3-06.

1шт.

33

J919644

FITTING

CONNECTOR - banjo

1шт.

Items 30 - 39 are used with item 1, J911657 pump assembly with aneroid, see Figure 3-06.

1шт.

34

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

Items 30 - 39 are used with item 1, J911657 pump assembly with aneroid, see Figure 3-06.

1шт.

35

J916779

FUEL HOSE,508.00 mm

Cylinder Block To Injection Pump 508.00 mm

1шт.

Items 30 - 39 are used with item 1, J911657 pump assembly with aneroid, see Figure 3-06.

1шт.

36

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

90º, 7/16-20 45 degree flare x 1/8 inch PT

1шт.

Items 30 - 39 are used with item 1, J911657 pump assembly with aneroid, see Figure 3-06.

1шт.

37

J918002

BANJO BOLT

SCREW - banjo

1шт.

Items 30 - 39 are used with item 1, J911657 pump assembly with aneroid, see Figure 3-06.

1шт.

38

J918190

SEALING WASHER,10mm ID x 15.5mm OD x 1mm Thk

WASHER - sealing, special, 10 x 15.5 x 1 mm

2шт.

Items 30 - 39 are used with item 1, J911657 pump assembly with aneroid, see Figure 3-06.

1шт.

39

J903035

BANJO BOLT

BOLT - banjo hex, 12 - 1.5 x 24 mm

1шт.

Items 30 - 39 are used with item 1, J911657 pump assembly with aneroid, see Figure 3-06.

1шт.
