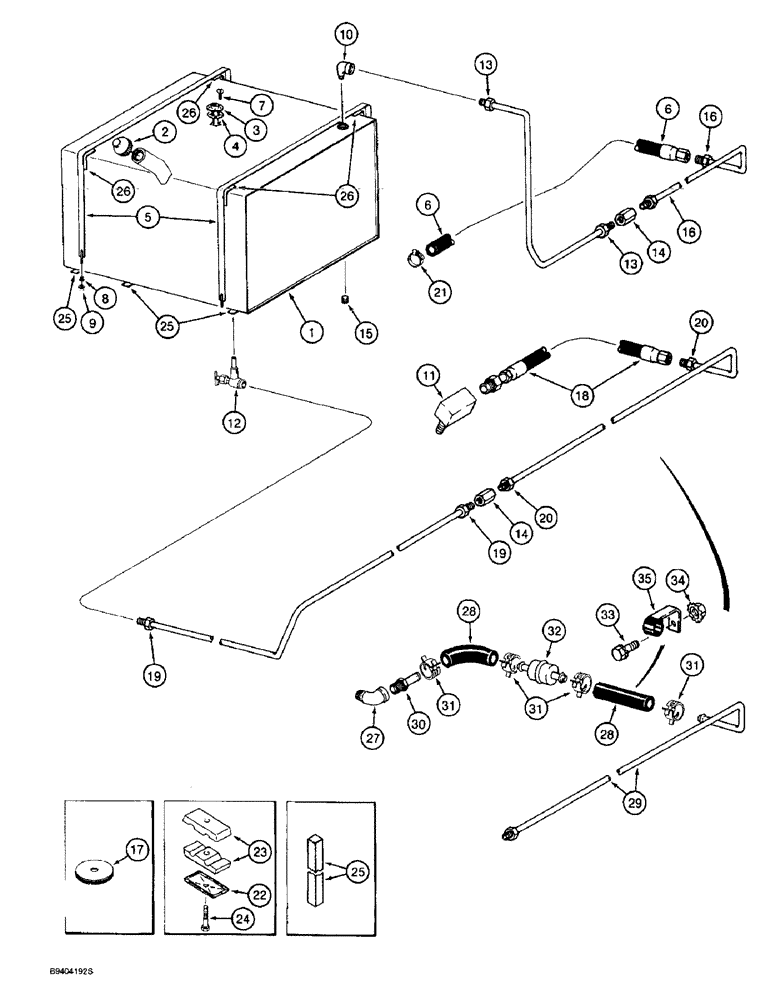

Запчасти Case IH 2055 (3-10) - FUEL TANK & LINES (02) - FUEL SYSTEM

1

1982455C2

FUEL TANK

TANK ASSEMBLY - fuel, 120 gallon

1шт.

2

23995DC

FILLER CAP

CAP - vented, fuel tank filler

1шт.

3

121810C1

ELECTRICAL GAUGE

SENDER - fuel level gauge

1шт.

4

168515C1

GASKET,3.05mm Thk

- fuel tank sending unit

1шт.

5

1349811C1

STRAP

- fuel tank

2шт.

6

1988963C1

HOSE

- return, fuel, 36-13/16 inch (935 mm) long

1шт.

7

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

8

492-11038

LOCK WASHER,3/8"

4шт.

9

425-106

NUT,3/8"-16, Cl 5

4шт.

10

144535R1

ELBOW

- 90 degree, special, 3/8 inch inverted flare

1шт.

11

222-1026

ELBOW,90 Degree, 5/8"-18 Inv Fl x 1/4" NPT

Prior to P.I.N. JJC0155439 90º, 5/8"-18 Inv Fl x 1/4" NPT

1шт.

12

390069R91

SHUT-OFF VALVE

VALVE - fuel shut-off

1шт.

13

1988962C2

PIPE

TUBE - fuel tank return

1шт.

14

222-1055

HYD CONNECTOR,3/8" Inv Fl

COUPLING - 5/8-18 inch inverted flare

1шт.

15

444699

PLUG,Hex Soc, 3/8"-18

- hex socket, pipe, 3/8 inch PT

1шт.

16

1988961C1

FUEL TUBE

TUBE - fuel, return

1шт.

17

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- tube, rubber

1шт.

18

1329284C1

HOSE

- supply, fuel, 305 inch (7747 mm) long, prior to P.I.N. JJC0155439

1шт.

19

1988960C2

TUBE

- supply, fuel tank

1шт.

20

1338813C3

TUBE

- fuel supply, prior to P.I.N. JJC0155439

1шт.

21

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

1шт.

22

1347127C1

PLATE

- hose, clamp

3шт.

23

1546024C1

CLAMP

- double, 3/8 inch ID

3шт.

24

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- hex, 5/16 NC x 1-3/8 inch

24шт.

25

1545941C1

SEAL

- fuel tank bottom, adhesive-backed, 33 inch (838 mm) long, cut from 73215C1 bulk seal, see below

3шт.

26

666210R1

FIXING STRIP

STRIP - tank support lining, 9 inch (229 mm) long, cut from 990541R1 bulk strip, see below

4шт.

27

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street, 90 degree, 1/4 inch PT x female PT MODELS WITH IN-LINE FUEL FILTER P. I. N. JJC0155439 AND AFTER

1шт.

28

140701A1

FUEL HOSE,9.52 mm ID x 150.00 mm, SAE 30R7

Models With In-Line Fuel Filter P. I. N. JJC0155439 And After 9.52 mm ID x 150.00 mm, SAE 30R7

2шт.

29

137602A1

FUEL TUBE,0.375 mm OD, 797, 64 mm Length

TUBE - fuel supply MODELS WITH IN-LINE FILTER P. I. N. JJC0155439 AND AFTER

1шт.

30

217-125

FITTING,3/8" Hose Barb x 1/4" Male NPTF

ADAPTER - straight, 3/8 barb end x 1/4 inch PT MODELS WITH IN-LINE FUEL FILTER P. I. N. JJC0155439 AND AFTER

1шт.

31

1348264C1

HOSE CLAMP

CLAMP - hose, 3/8 inch MODELS WITH IN-LINE FUEL FILTER P. I. N. JJC0155439 AND AFTER

4шт.

32

D139225

FILTER, FUEL

FILTER - fuel, in-line MODELS WITH P. I. N. JJC0155439 AND AFTER

1шт.

33

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch MODELS WITH IN-LINE FUEL FILTER P. I. N. JJC0155439 AND AFTER

1шт.

34

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC MODELS WITH IN-LINE FUEL FILTER P. I. N. JJC0155439 AND AFTER

1шт.

35

370383R1

CLIP

CLAMP - tube MODELS WITH IN-LINE FUEL FILTER P. I. N. JJC0155439 AND AFTER

1шт.

73215C1

GASKET

SEAL - bulk, foam, adhesive-backed, 48 inch (1219 mm) long MODELS WITH IN-LINE FUEL FILTER P. I. N. JJC0155439 AND AFTER

1шт.

990541R1

FIXING STRIP

STRIP - bulk, lining, 1-1/4 (32) wide x 600 inch (15240 mm) long MODELS WITH IN-LINE FUEL FILTER P. I. N. JJC0155439 AND AFTER

1шт.
