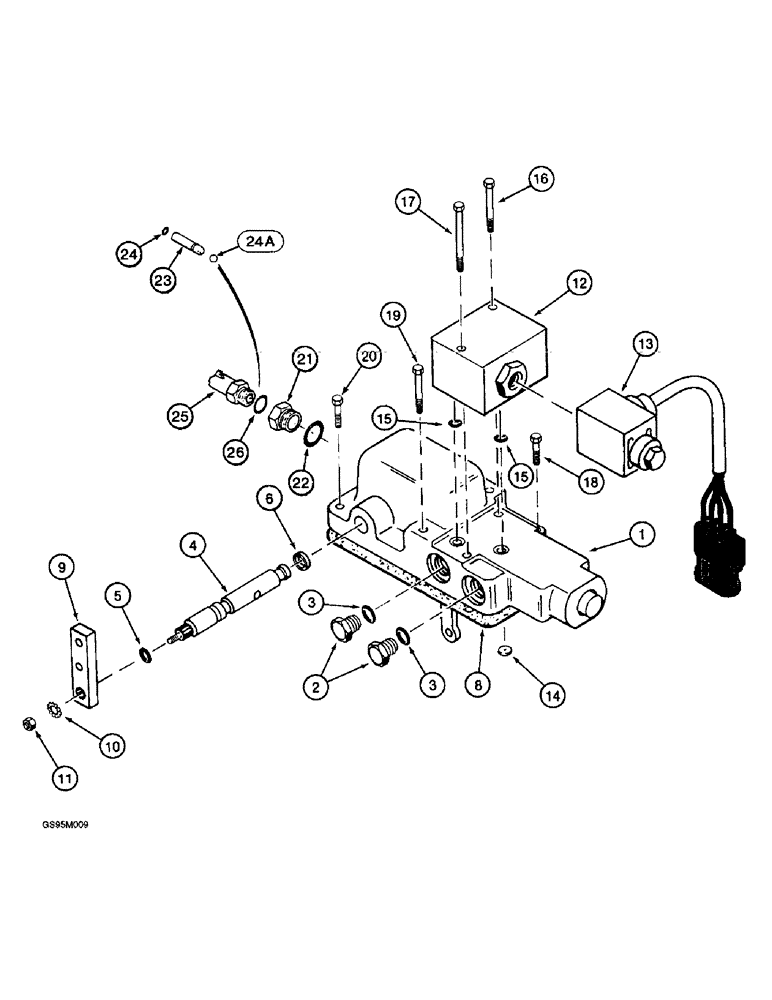

Запчасти Case IH 2055 (6-30) - HYDROSTATIC PUMP, CONTROL VALVE - P.I.N. JJC139015 AND AFTER (03) - POWER TRAIN

191066A1

VALVE

ASSEMBLY - control, hydrostatic pump, used with pump assembly 1986824C4, see page 6-24

1шт.

106445A1

VALVE

ASSEMBLY - control, hydrostatic pump, used with pump assembly 1986824C3, see page 6-24

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

76349

PLUG,9/16" - 18 ORB

2шт.

1978048C2

SHAFT

ASSEMBLY - valve

1шт.

4

NSS

NOT SOLD SEPARAT

SHAFT - control valve

1шт.

5

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

6

1267111C1

RING,11.18mm ID x 12.7mm OD x 1.78mm Thk

SEAL - dust, valve shaft

1шт.

8

133756C1

GASKET

- control valve

1шт.

9

REF

INSTRUCTION

LEVER - pump control, not used in this application

1шт.

10

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

11

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

106446A1

VALVE

ASSEMBLY - destroke

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - valve, destroke

1шт.

13

106447A1

COIL ASSY.

COIL - solenoid

1шт.

REF#13 O/RING USED BEHIND STUD HEX HEAD ON COIL COULD BE 238-6208( .875 x .625 x .125)

1шт.

14

107592A1

WASHER

PLATE - orifice, control valve

1шт.

15

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

2шт.

16

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

1шт.

17

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16 NC x 3-1/2 inch

1шт.

18

61-33116

HEX SOC SCREW,5/16"-18 x 1"

SCREW, Hex Soc Hd, 5/16"-18 x 1"

1шт.

19

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

20

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

197909A1

ADAPTER

ASSEMBLY - special, valve to switch, used with pump assembly 1986824C4

1шт.

21

NSS

NOT SOLD SEPARAT

ADAPTER - special, valve to switch

1шт.

22

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

Adapter to valve -008, 90 Duro, .176" ID x .070" Thk

1шт.

23

197908A1

PIN

- neutral start

1шт.

24

238-5004

O-RING,0.07" Thk x 0.07" ID, -4, Cl 5, 75 Duro

-004, 70 Duro, .07" ID x .070" Thk, Neutral start pin

1шт.

24a

NSS

NOT SOLD SEPARAT

BALL - neutral start

1шт.

25

1983218C2

SWITCH

- neutral start, ball type, used with pump assembly 1986824C4

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Used with pump assembly 1986824C4

1шт.
