(6-38) - HYDROSTATIC MOTOR, SINGLE SPEED, RELIEF VALVE BLOCK

Запчасти Case IH 2055 (6-38) - HYDROSTATIC MOTOR, SINGLE SPEED, RELIEF VALVE BLOCK (03) - POWER TRAIN

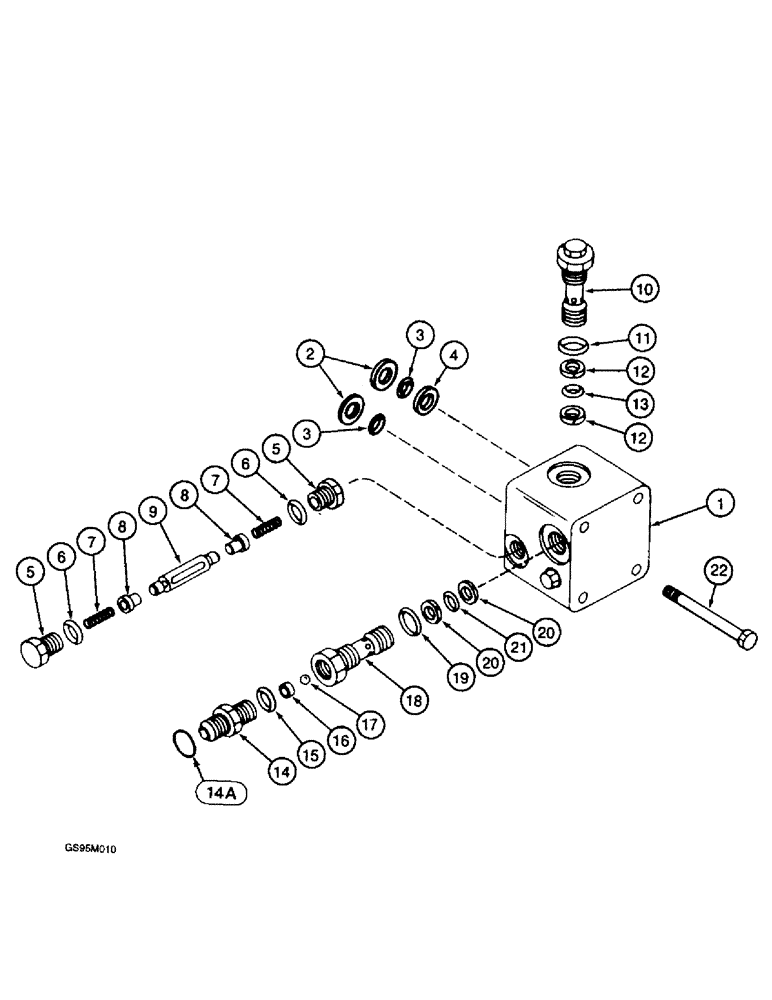

Схема запчастей Case IH 2055 - (6-38) - HYDROSTATIC MOTOR, SINGLE SPEED, RELIEF VALVE BLOCK (03) - POWER TRAIN
9
16
17
19
21
1
7
14
7
5
4
20
15
8
14a
13
6
12
12
18
3
8
5
10
3
22
2
6
11
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

193646A1

VALVE

BLOCK ASSEMBLY - relief valve, used with motor assembly 183296A2, see page 6-34

1шт.

1971432C2

VALVE

BLOCK ASSEMBLY - relief valve, used with motor assembly 1343609C2, no longer available, order block assembly 193646A1

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK - valve, order block assembly

1шт.

140747C92

SEAL KIT

KIT - seal replacement (Replaces kit 140747C91)

1шт.

2

133753C1

O-RING,7/16" ID x 3/4" OD x 1/16"

- quad, 3/4 x 7/8 x 1/16 inch

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

4

631458C1

RING

- backup

2шт.

145559C91

KIT

- shuttle valve

1шт.

5

NSS

NOT SOLD SEPARAT

PLUG - order 145559C91 kit

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

7

145560C1

SPRING

- shuttle valve

2шт.

8

NSS

NOT SOLD SEPARAT

VALVE - shuttle, order 145559C91 kit

2шт.

9

NSS

NOT SOLD SEPARAT

SPOOL - shuttle, order 145559C91 kit

1шт.

10

140761C1

VALVE PRESSURE RELIE

VALVE Assy - low pressure relief

1шт.

393885R91

GASKET KIT

KIT - relief valve seal

3шт.

11

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

12

393887R1

BACK-UP RING

RING - backup

2шт.

13

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

193647A1

VALVE PRESSURE RELIE

VALVE ASSEMBLY - feathering relief, used with block assembly 193646A1

2шт.

1971415C1

VALVE

ASSEMBLY - feathering relief, used with block assembly 1971432C2

2шт.

14

NSS

NOT SOLD SEPARAT

CONNECTOR - special

1шт.

14a

238-6001

O-RING - 5/16 ID x 1/16 inch wide, used with valve assembly 193647A1

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

16

NSS

NOT SOLD SEPARAT

BUSHING - ball guide

1шт.

17

NSS

NOT SOLD SEPARAT

BALL - steel, 1/4 inch

1шт.

18

NSS

NOT SOLD SEPARAT

CARTRIDGE - valve

1шт.

393885R91

GASKET KIT

KIT - relief valve seal

3шт.

19

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

20

393887R1

BACK-UP RING

RING - backup

2шт.

21

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

22

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

4шт.
