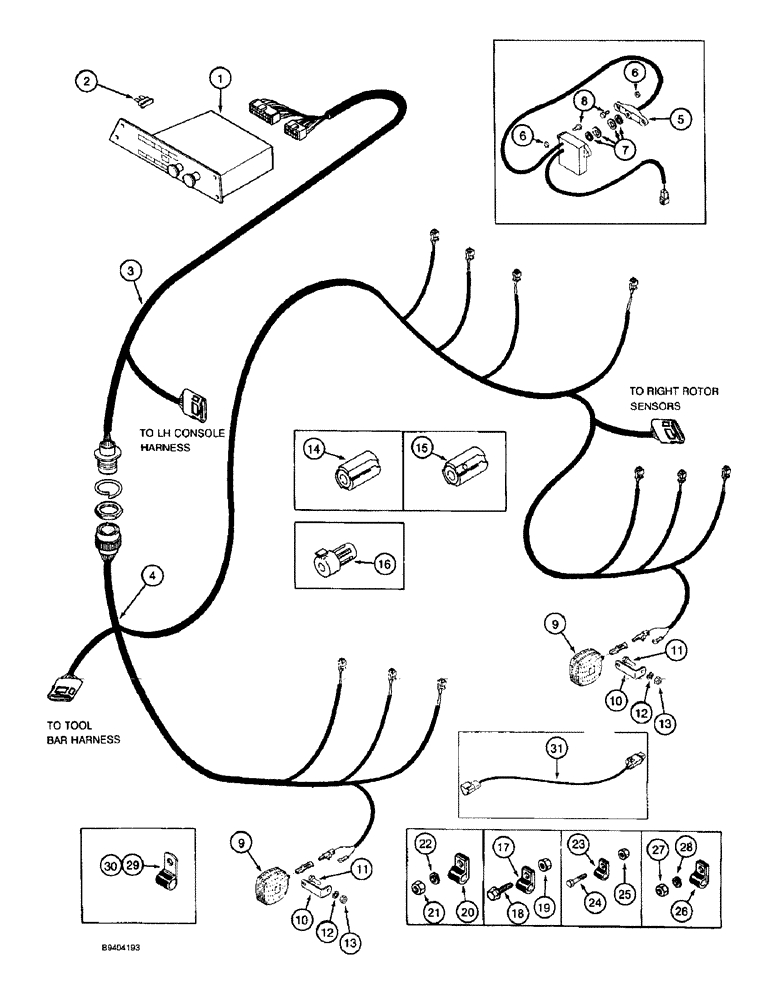

Запчасти Case IH 2055 (4-16) - SYSTEM MONITOR (06) - ELECTRICAL SYSTEMS

1

1983692C5

ELECTRICAL GAUGE

MONITOR - system, new (Replaces new monitors 1983692C3 and 1983692C4)

1шт.

1

1935122C5

REMAN-ELECT MONITOR

REMAN-MONITOR MONITOR - system, remanufactured, North America only, component parts shown on this page do not apply to the remanufactured assembly (Replaces remanufactured monitors 1935122C3 and 1935122C4)

1шт.

1

1935121C5

CORE-MONITOR

RETURN NUMBER - use this part number to return core for credit when using a remanufactured assembly (Replaces return numbers 1935121C3 and 1935121C4)

1шт.

1

1935122C6

REMAN-ELECT MONITOR

REMAN-MONITOR Remanufactured MONITOR - NA Only

1шт.

1

1935121C6

CORE-MONITOR

Return number - For N.A. only

1шт.

2

A149796

FUSE

FUSE - violet, 3 ampere, monitor

1шт.

3

1983651C2

HARNESS

HARNESS - monitor, cab

1шт.

4

1983650C3

HARNESS

HARNESS - monitor, chassis

1шт.

5

1983618C2

SENSOR

SENSOR - cotton flow (Qty. 8-10)

1шт.

6

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

NUT, Flg, USR, 1/4"-20

1шт.

7

83901C1

PACKAGE

CAP - lens (Qty. 16-20)

1шт.

8

1338692C1

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1"

SCREW, (Qty. 32-40) Sltd Serr Truss Hd, 1/4"-20 x 1"

1шт.

9

83885C91

LAMP

LAMP ASSEMBLY - side warning, turn signal, parts list page 4-44

2шт.

10

1283289C1

ANGLE

BRACKET - lamp mounting

2шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex, 3/8 NC x 1 inch

2шт.

12

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

13

425-106

NUT,3/8"-16, Cl 5

NUT, 3/8"-16, G5

2шт.

14

1987557C1

CONNECTOR, ELEC

CONNECTOR PLUG - monitor conversion, 4 Row Wide, 4 Row Narrow

1шт.

15

106212A1

CONNECTOR, ELEC

CONNECTOR PLUG - monitor conversion, 4 Row skip at drum rotor

1шт.

16

106209A1

CONNECTOR, ELEC

CONNECTOR PLUG - dust

2шт.

17

D47323

CLAMP - harness to support cable, if used

2шт.

18

409-7612

BOLT,3/8"-16 x 1.09" OAL

BOLT - hex serrated flange, 3/8 NC x 3/4 inch, If used

2шт.

19

231-5146

FLANGE NUT,3/8"-16

NUT, , If used Flg, USR, 3/8"-16

2шт.

20

L12296

CLAMP

CLAMP - rear brake tube retaining, if used

3шт.

21

425-148

JAM NUT,Jam, 1/2"-13, G5

NUT - hex, jam, 1/2 inch NC, If used

3шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , If used 1/2"

3шт.

23

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

CLAMP, , P-type, To LH rear 1/2", Insul, 5/16" Bolt

1шт.

24

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

BOLT - hex serrated flange, 5/16 NC x 3/4 inch

5-6шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

5-6шт.

26

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

CLAMP, , P-type, Harness to support angle 1/2", Insul, 3/8" Bolt

3шт.

27

425-146

JAM NUT,3/8" - 16, Gr 5

NUT - hex, jam, 3/8 inch NC

3шт.

28

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

29

362123R1

CLIP

CLAMP - P-type, cable retaining, 15/32 inch diameter hole (Qty. 8-10)

1шт.

30

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type, at fan speed sensor, 11/32 inch diameter hole

1шт.

31

136057A1

HARNESS

HARNESS - extension, monitor sensor, 5 Row Wide

4шт.
