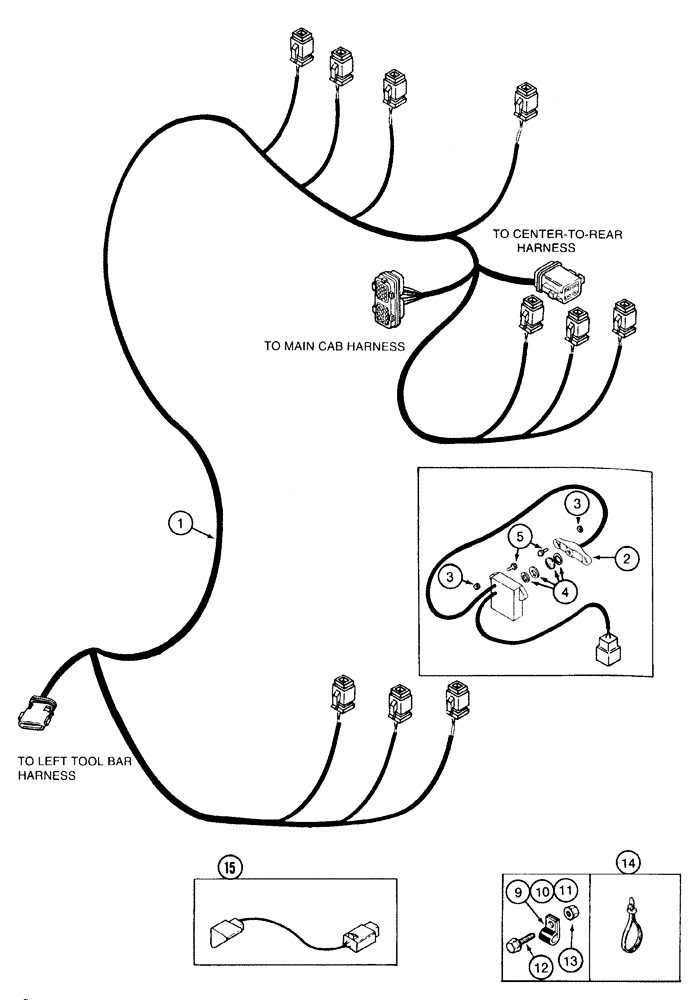

Запчасти Case IH 2155 (4-16) - CHASSIS MONITOR (06) - ELECTRICAL SYSTEMS

1

139653A1

HARNESS

HARNESS - monitor, chassis

1шт.

2

1983618C2

SENSOR

SENSOR - cotton flow

8-10шт.

3

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

NUT, Flg, USR, 1/4"-20

1шт.

4

83901C1

PACKAGE

CAP - lens

16-20шт.

5

1338692C1

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1"

SCREW, Sltd Serr Truss Hd, 1/4"-20 x 1"

32-40шт.

9

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

CLAMP, , P-type 1/2", Insul, 3/8" Bolt

6шт.

10

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

CLAMP - P-type, 7/8 inch ID, if used

4шт.

11

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

CLAMP, , P-type, If used 3/4", Insul, 3/8" Bolt

1шт.

12

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

BOLT - heavy hex flange, 6 - 1.0 x 25 mm

4шт.

13

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

NUT, M6 x 1, Flg, Cl 8

4шт.

14

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP STRAP, CABLE, 3/16" x 7 1/4"

1шт.

15

136057A1

HARNESS

HARNESS - extension, cotton flow sensor, 5 Row Wide

4шт.

1935122C6

REMAN-ELECT MONITOR

REMAN-MONITOR Remanufactured MONITOR - NA Only

1шт.

1935121C6

CORE-MONITOR

Return number - For N.A. only

1шт.
