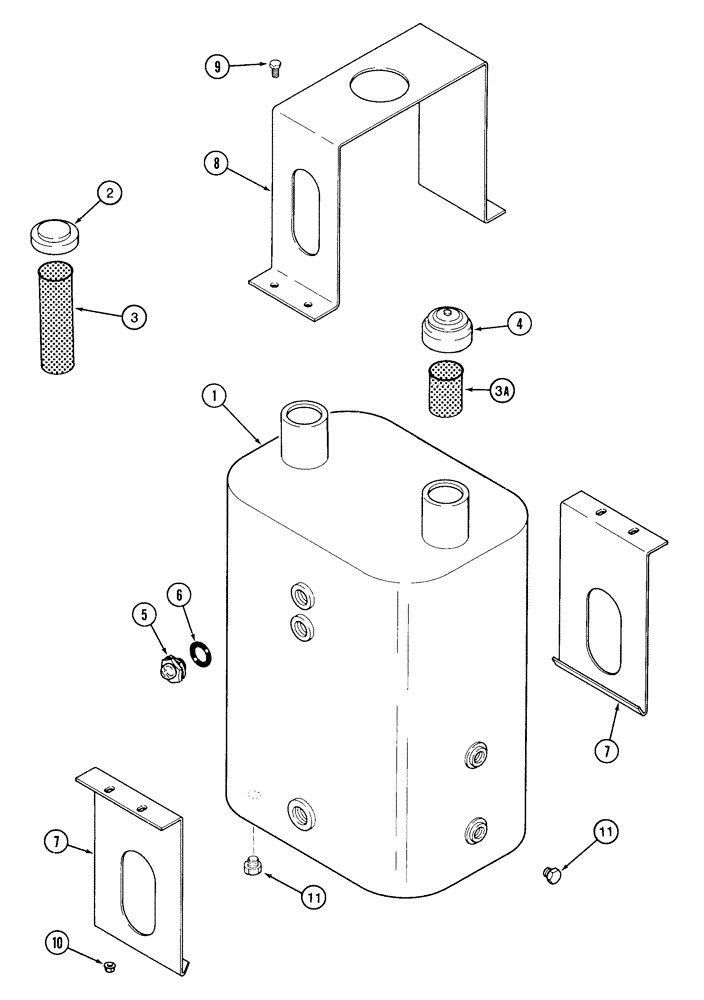

Запчасти Case IH 2155 (8-02) - HYDRAULIC RESERVOIR (07) - HYDRAULICS

123413A3

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic oil

1шт.

1

NSS

NOT SOLD SEPARAT

TANK - hydraulic reservoir

1шт.

2

1346309C2

FILLER CAP

CAP - fill, non-vented

1шт.

3

104407A1

SCREEN

- filter

2шт.

3a

191116A1

BAFFLE

- foam, reservoir breather

1шт.

4

1272941C2

BREATHER

- reservoir

1шт.

5

132865A1

SIGHTGLASS

GAUGE - sight, oil level

2шт.

ref 5, if dealer wants glass order p/n 8799439 LLB 7-16-99

1шт.

6

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

7

1979829C1

SUPPORT

- hydraulic reservoir

2шт.

8

1347146C1

CLAMP

- reservoir

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

11

217-411

PLUG,Hex Hd, 1/2" - 14 NPT

2шт.
