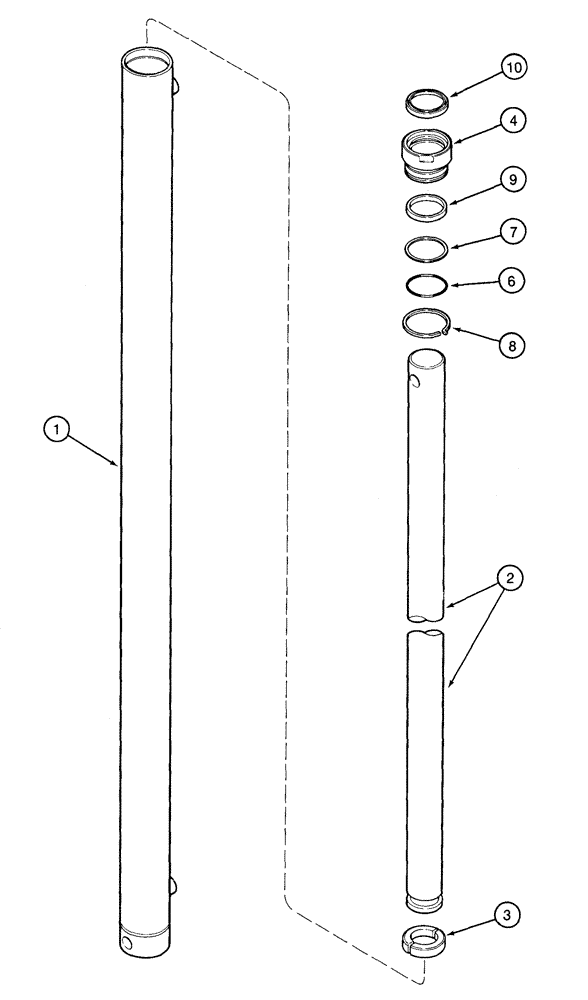

Запчасти Case IH 2155 (8-50) - BASKET LIFT SLAVE CYLINDER ASSEMBLY (07) - HYDRAULICS

85184C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 2-1/2 (64) ID x 72 inch (1829 mm) stroke, basket lift, slave

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder

1шт.

2

1543206C1

PISTON ROD

ROD - piston, cylinder

1шт.

ref #2, per herb this rod p/n is incorrect, the correct rod is nss - dmm 9/5/96

1шт.

3

1957762C1

PISTON

- cylinder, 2 piece

1шт.

4

1957763C1

JACK HEAD

HEAD - cylinder

1шт.

1957764C1

SEAL KIT

KIT - seal, repair

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - head sealing

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

8

NSS

NOT SOLD SEPARAT

RING - retaining wire

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - U-cup, cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.
