(2-21A) - TURBOCHARGER SYSTEM, 6TA-830 EMISSIONS CERTIFIED ENGINE, COTTON PICKER P.I.N. JJC0156230 AND AFTER

Запчасти Case IH 2155 (2-21A) - TURBOCHARGER SYSTEM, 6TA-830 EMISSIONS CERTIFIED ENGINE, COTTON PICKER P.I.N. JJC0156230 AND AFTER (01) - ENGINE

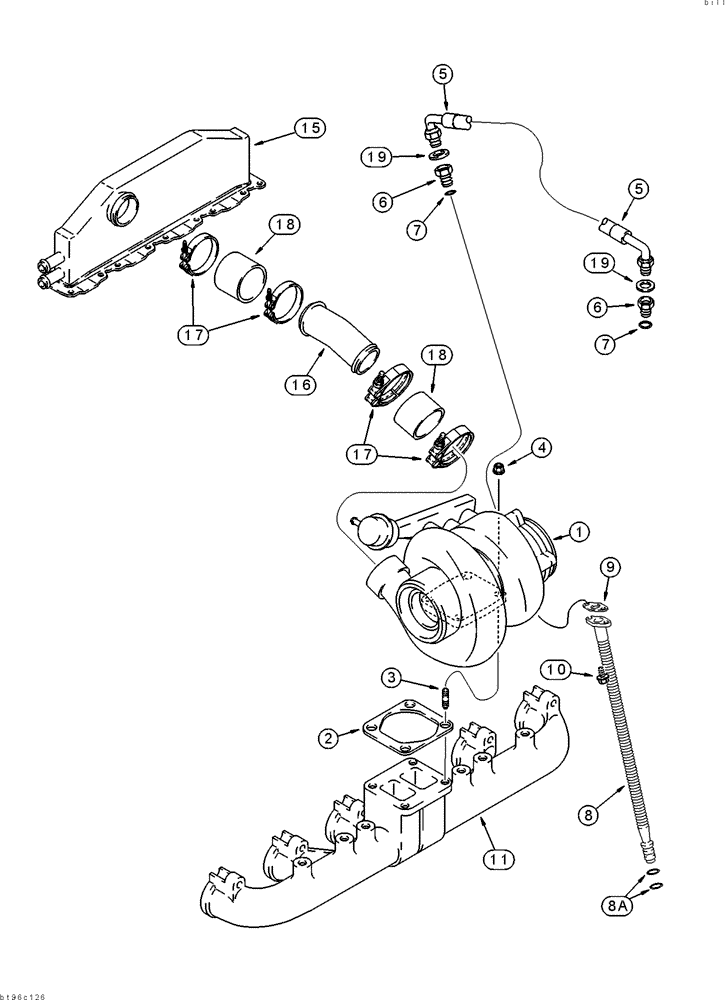

Схема запчастей Case IH 2155 - (2-21A) - TURBOCHARGER SYSTEM, 6TA-830 EMISSIONS CERTIFIED ENGINE, COTTON PICKER P.I.N. JJC0156230 AND AFTER (01) - ENGINE
8
17
5
11
5
19
18
15
17
10
6
2
7
18
6
3
8a
19
9
4
7
1
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J535617

TURBOCHARGER

ASSEMBLY - engine, new, parts list pages 2-23B and 2-23D

1шт.

2

J911941

GASKET

- mounting, turbocharger

1шт.

3

J818823

STUD

- turbocharger mounting, M10 x 40

4шт.

4

J818824

FLANGE NUT

- hex flange, special, 10 mm - 1.5

4шт.

5

J918562

HOSE

- 21-3/16 inch (538 mm) long, oil supply, turbocharger

1шт.

6

J919687

HYD CONNECTOR

ADAPTER - female hex, special

2шт.

7

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

8

J928629

TUBE

- oil drain, flexible, Serial Range: bend-fit

1шт.

8a

238-7115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

2шт.

9

J819378

GASKET

- turbo oil drain

1шт.

10

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

11

J906741

MANIFOLD

- exhaust, see page 2-19B

1шт.

15

J924731

AFTERCOOLER

- air intake, see page 2-19B

1шт.

16

J914942

TUBE,63.5 mm OD x 189.5, 23 mm L

- crossover, air

1шт.

17

J924386

COLLAR CLAMP

CLAMP - adjustable, special

4шт.

18

J916437

HOSE

Crossover Tube

2шт.

19

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
