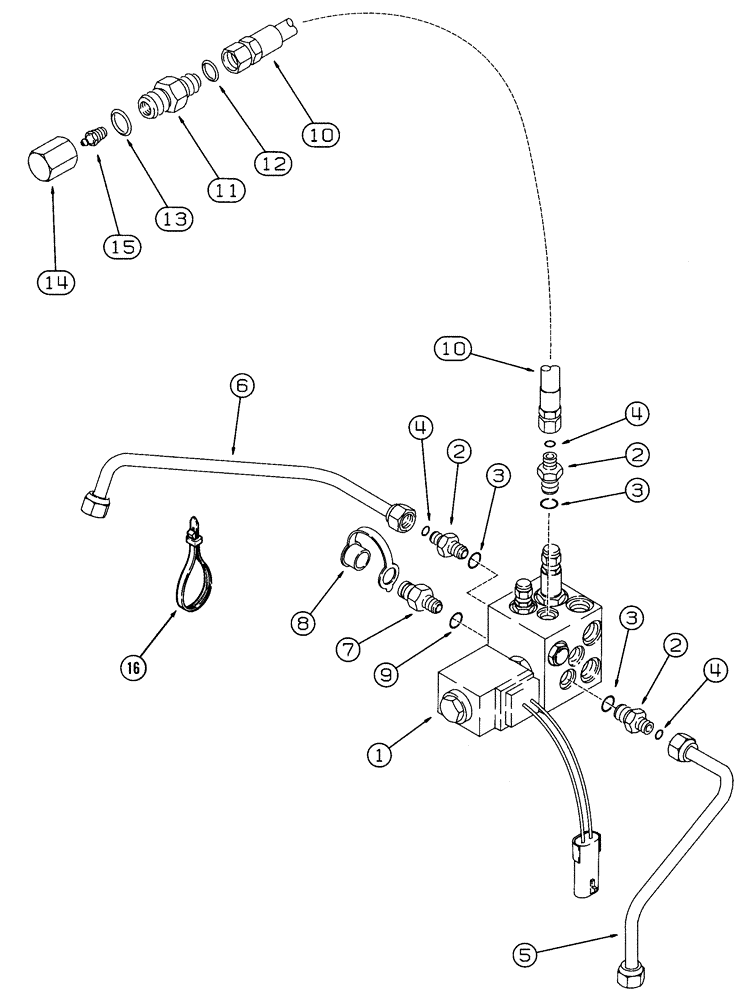

Запчасти Case IH 2155 (7-10) - PARKING BRAKE AND TOW VALVE HYDRAULIC SYSTEM (5.1) - BRAKES

1

138367A2

VALVE

ASSEMBLY - regulator and parking brake, replaces 138367A1 valve, parts list page 7-13

1шт.

See Figure 7-04 for supply and return lines to valve and mounting bracket and hardware to transmission.

1шт.

2

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adapter - straight 11/16"-16 ORFS x 9/16"-18 ORB

3шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

184357A1

TUBE

- parking brake, right-hand

1шт.

6

184358A1

TUBE

- parking brake, left-hand

1шт.

1541849C1

COUPLING

ASSEMBLY - diagnostic

1шт.

7

NSS

NOT SOLD SEPARAT

COUPLING - diagnostic

1шт.

8

H434163

DUST CAP

CAP - dust

1шт.

10

191290A1

HOSE

- 72-1/16 inch (1830 mm) long, to tow valve

1шт.

128672A1

FITTING

VALVE ASSEMBLY - tow, if used

1шт.

128672A2

VALVE

VALVE ASSEMBLY - tow, if used

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

NSS

NOT SOLD SEPARAT

COVER - valve

1шт.

15

219-16

LUBE NIPPLE,5/16" NPTF

FITTING - grease, straight, 5/16 drive type x 19/32 inch

1шт.

16

702093C1

CABLE TIE

STRAP, CABLE, 3 inch maximum, nylon

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Spool

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Spool

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Spool

1шт.
